Description

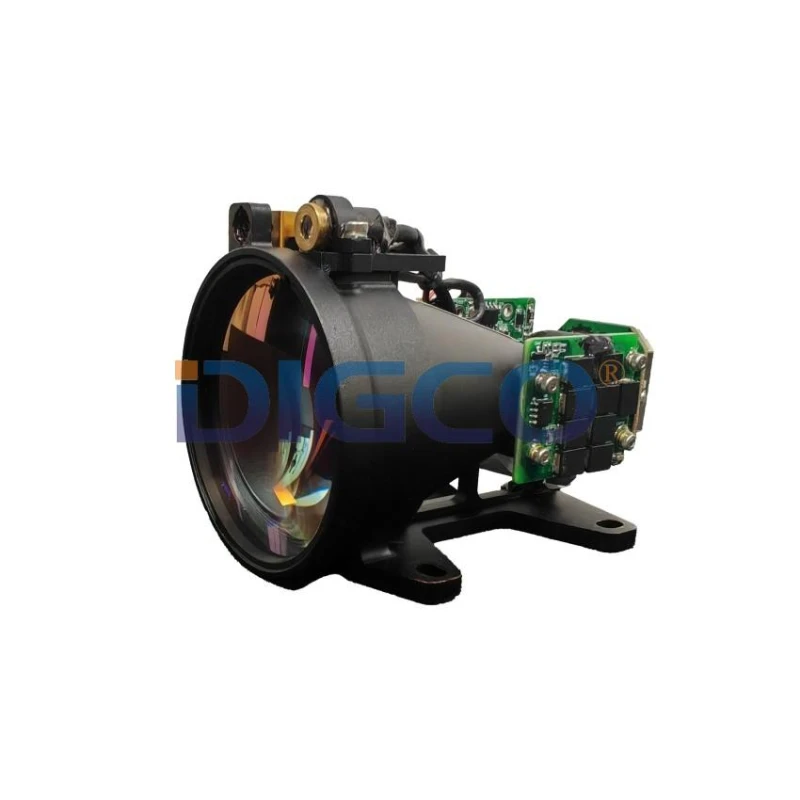

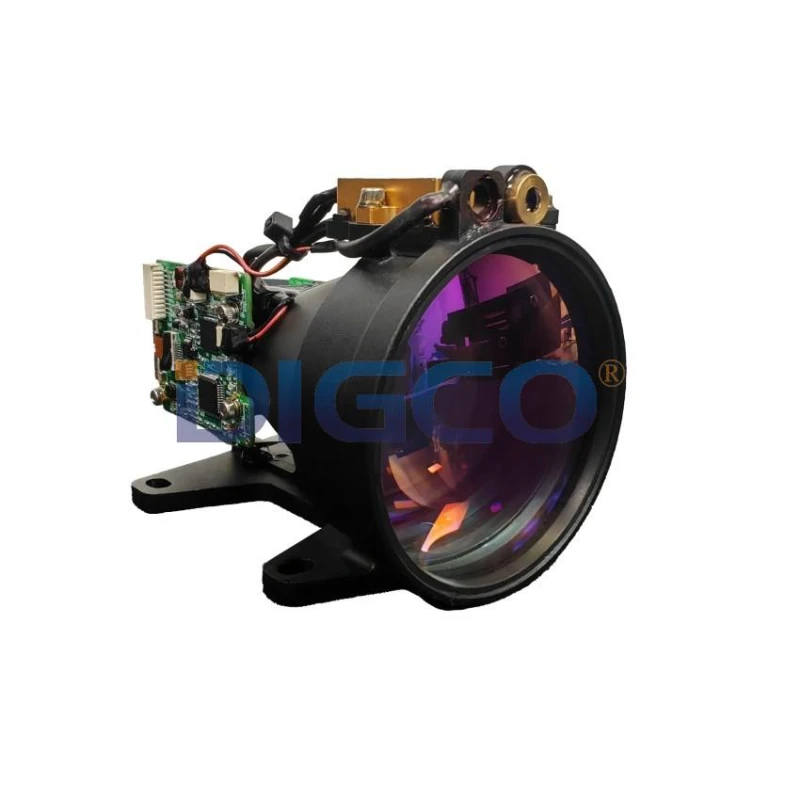

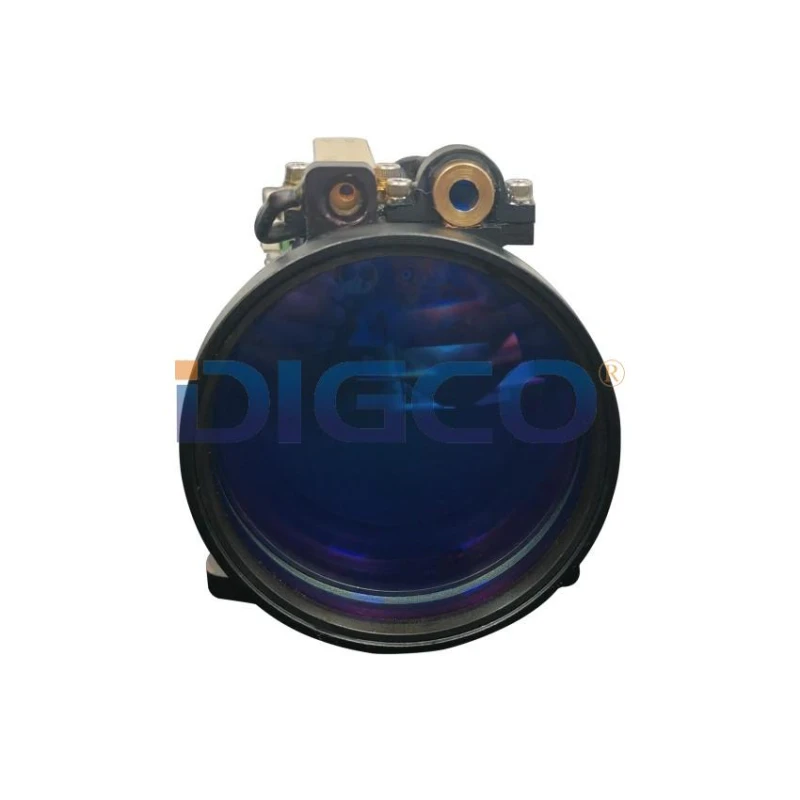

This Wide Beam Laserrangefinder Transceiver Module is specially developed for anti-drone system which range ≥1km at drone targets 0.2m×0.3m.It is based on a 400uJ diode pumpmed Er^3+:Yb^3+:Phosphate glass active element solid state laser transmitter with wide beam divergence ≧8.5mrad for large enough space covering UAVs.
Anti-drone wide beam divegence 8mrad eye-safe laser rangefinder module with collimating pointer
Specifications
| Maximum Measurement Range: | 1000 m |
|---|---|
| Minimum Measurement Range: | 100 m |
| Measurement Rate: | 10 meas./sec |
| Accuracy: | 150 mm |
| Precision: | 3000 mm |
| Range Capabilty: | ≥1km |
| Measuring Method: | ToF(Time of Flight), single shot or QCW shots |
| Laser Wavelength: | 1535nm±5nm |
| Pulse Energy: | ≥400uJ |
| Laser Divergence Angle: | ≧8.5mrad |
| Repetition Rates: | 1-10Hz |
| Power Supply: | DC6V～28V |
| Weight: | 200g |
| Dimensions: | ≤104mm×65mm×100mm |
| Communication: | RS422, 115200bps |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
• Compact and lightweight
• Beam divergence ≧8.5 mrad
• Low power consumption
• Measurement rates up to 10 Hz
• Laser 1.54 µm wavelength
• Eye safe Class 1M
• Easy for OEM systems/devices intigration
Applications
Anti-drone systems for UAV scanning and surveillance
