How do common Laser Scanning and Ranging technologies (ToF, triangulation, FMCW) work in principle?

Time-of-Flight (ToF) devices measure the round-trip time of short laser pulses or the phase shift of modulated beams to compute distance via d = c·Δt/2. Triangulation sensors project a laser line or spot and use an offset imaging sensor to infer distance from the displacement on the detector. FMCW (frequency-modulated continuous-wave) LiDAR chirps the laser frequency and derives distance and relative velocity from the beat frequency and phase of the mixed transmit/receive signals, improving sensitivity and velocity resolution.

What are the main sub-types of Laser Scanning and Ranging systems and how do they differ?

Key sub-types include single-point rangefinders, 1D/2D laser line profilers, 3D area scanners, and full LiDAR units with beam steering. Single-point sensors provide a single distance per measurement, while line and area scanners use mechanical (galvo, polygon, rotating mirror) or solid-state (MEMS, optical phased array) scanning to build a profile or 3D point cloud. LiDAR systems typically integrate laser source, receiver, scanner, and timing electronics to produce geo-referenced 3D data, often with higher range and field-of-view than compact industrial profilers.

Which technical specifications matter most when selecting a Laser Scanning and Ranging solution?

Critical parameters include wavelength, output power or pulse energy, maximum range, minimum measurable distance, measurement accuracy, and repeatability. You should also compare scan rate (points per second), angular or linear resolution, field-of-view, beam divergence, spot size at target, detector type (APD, SPAD, PIN), and environmental ratings (IP, operating temperature, vibration tolerance). Interface options (Ethernet, GigE Vision, RS-485, CAN, analog), synchronization/triggering capabilities, and safety classification (IEC 60825) are important for system integration.

How should I compare different Laser Scanning and Ranging products for a given application scenario?

Define the target distance range, required spatial resolution, and throughput, then compare devices on effective measurement rate at that resolution, not just advertised max speed. For example, in line profiling, evaluate the trade-off between scan frequency and points per profile; in LiDAR, examine point density per square meter at your working distance and vehicle speed. Also assess real-world performance under your expected reflectivity, ambient light, and environmental conditions by reviewing vendor test data or sample point clouds where available.

What factors influence pricing, lead time, and customization options for Laser Scanning and Ranging equipment?

Pricing is mainly driven by range performance, accuracy specification, scanning mechanism complexity, detector technology (e.g., SPAD arrays vs simple photodiodes), and required ruggedization or certification. Standard catalog sensors and basic profilers are often available from stock or within a few weeks, while custom wavelengths, optics, scan patterns, or specialized housings can push lead times to several months. Many suppliers offer OEM modules, modified interfaces, or firmware options (custom filtering, ROI, protocols) with minimum order quantities affecting unit cost.

How can I find, compare, and request quotes for Laser Scanning and Ranging products on FindLight without creating an account?

On FindLight, navigate to Imaging and Vision → Laser Scanning and Ranging and filter products by parameters such as wavelength, range, scan rate, and interface type using the left-hand filters. You can select multiple product pages to compare specification parameters side by side, then use the “Inquire Price” form on each listing to send your requirements directly to the supplier without registration.

Filter Products

Scanners and Rangefinders for Light Detection

Q: What is meant by Laser Scanning and Ranging in imaging and vision applications?

Laser Scanning and Ranging refers to systems that emit laser pulses or beams and measure the returned signal to reconstruct 3D geometry, distances, or surface profiles. This category includes LiDAR units, laser profilers, time-of-flight rangefinders, triangulation scanners, and galvo- or polygon-based laser scanning heads used for inspection, mapping, and machine vision.

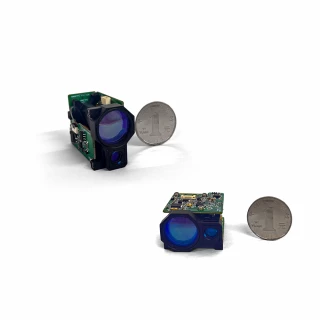

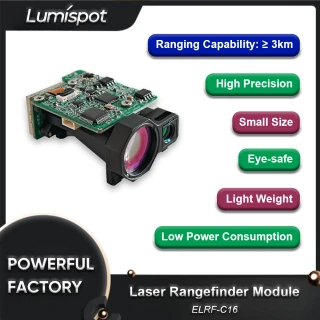

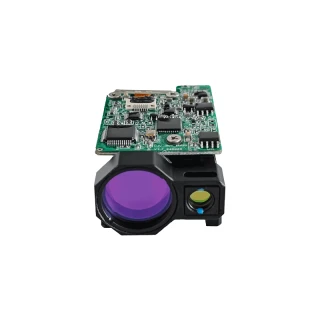

Lumispot 1535nm 3km Micro Professional Range Finder Module for Sale

Request Quote

Sold by: Wuxi Lumispot Photoelectric Science & Technology Co., Ltd. Ships from: China

Specifications
Maximum Measurement Range:	5000 m
Minimum Measurement Range:	15 m
Size:	≤482131mm
Weight:	<33g±1g
Wavelength:	1535nm±5nm

Did You Know?

Did you know that many time-of-flight laser rangefinders can measure distances with centimeter-level precision over hundreds of meters, even though the round-trip light travel time is only a few nanoseconds? To resolve this, modern scanners use fast avalanche photodiodes and timing electronics with picosecond-level resolution, or they employ indirect time-of-flight with phase-shift measurements of a modulated laser beam. A common misconception is that beam divergence is negligible: in practice, a typical 1 mrad divergence produces a 10 cm spot at 100 m, which directly impacts ranging accuracy on small or mixed-reflectivity targets.

Related Resources

Frequently Asked Questions

Laser Scanning and Ranging refers to systems that emit laser pulses or beams and measure the returned signal to reconstruct 3D geometry, distances, or surface profiles. This category includes LiDAR units, laser profilers, time-of-flight rangefinders, triangulation scanners, and galvo- or polygon-based laser scanning heads used for inspection, mapping, and machine vision.

Overview of Scanners and Rangefinders

Scanners and Rangefinders for light detection are instruments that emit a laser or LED beam and analyze the returned signal to determine distance, profile a surface, or generate 2D/3D point clouds. They are widely used in industrial metrology, robotics, surveying, mapping, and safety systems where precise and repeatable distance measurement is required.

On FindLight, Scanners and Rangefinders include devices such as time-of-flight (ToF) laser rangefinders, triangulation-based scanners, and rotating or solid-state LiDAR modules. These instruments typically integrate an emitter, receiver optics, signal processing electronics, and communication interfaces suitable for OEM integration or lab use.

Typical Specifications and Performance Parameters

When evaluating Scanners and Rangefinders, engineers usually compare these key specifications:

Wavelength: Common bands include 405–532 nm (visible) and 800–1550 nm (NIR). Wavelength affects eye safety classification, target reflectivity, and compatibility with ambient light conditions.
Measurement range: From a few centimeters up to several kilometers, depending on output power, beam divergence, and detector sensitivity.
Accuracy and repeatability: Often specified in millimeters or as a percentage of the measured distance, crucial for metrology and alignment tasks.
Scan pattern and FOV: Single-point rangefinders provide a distance at one angle, while 2D/3D scanners generate lines or area scans via rotating mirrors, MEMS scanners, or multi-beam arrays. Field of view and angular resolution determine spatial coverage.
Update rate: Ranging from a few Hz to hundreds of kHz, impacting suitability for fast-moving targets and high-speed automation.
Interface and integration: Common outputs include analog voltage, RS-232/485, USB, Ethernet, CAN, and digital trigger I/O for synchronization.

Use Cases and Selection Guidance

Scanners and Rangefinders are used in machine vision-guided robotics, process automation, warehouse navigation, UAV altimetry, topographic mapping, and safety curtain systems. In R&D, they support optical experiments, position feedback, and surface profiling.

When selecting a device on FindLight, compare wavelength, range, accuracy, and scan geometry against your target material, working distance, and ambient conditions. Check power requirements, environmental ratings (IP code, temperature range), and eye-safety class, especially for open-environment deployment.

For each listing in the Scanners and Rangefinders category, you can review detailed datasheets, cross-compare specifications, and request quotes directly from suppliers. No registration is required to contact vendors, enabling rapid technical evaluation and procurement of suitable light detection solutions.
