Description

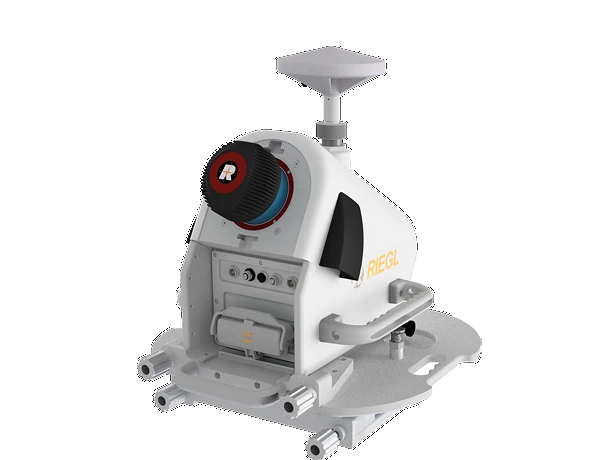

The RIEGL VMQ-3HA is a compact, economically priced High-Speed Single Scanner Mapping System, well suited for a variety of mobile mapping applications.
The system consists of a compact measuring head with a quick release system for convenient mounting. A swivel plate enables multiple mounting angles in order to optimize the field of view of the system. The optional integration of up to four cameras allows simultaneous acquisition of imagery to complement the captured LiDAR data. The central part of the system is the fully integrated VUX-3HA LiDAR sensor providing 3 mio. measurements and up to 400 scan lines per second for an outstanding performance in mobile applications
RIEGL VMQ-3HA High-Speed Single Scanner Mapping System
Specifications
| Maximum Measurement Range: | 500 m |
|---|---|
| Minimum Measurement Range: | 1 m |
| Measurement Rate: | Not Specified |
| Accuracy: | 3 mm |
| Precision: | 2 mm |
| Scan Speed: | up to 400 scans/sec |
Download Data Sheet
Features
- high laser pulse repetition rate of up to 3 MHz
- up to 400 scans per second
- max. measurement range 500 m
- Eye safe operation at Laser Class 1
- Field of view 360°Multiple target capability
- Optional integration of up to 4 cameras
Applications
- Transportation Infrastructure Mapping
- Road Surface Measurement
- HD Mapping for Autonomous Vehicles
- City Modeling
- Rapid Capture of Construction Sites and Bulk Material
- GIS Mapping and Asset Management
- As-Built Surveying
- Open Pit Mine Surveying
