Lumispot 1535nm 3km Micro Professional Range Finder Module for Sale

Description

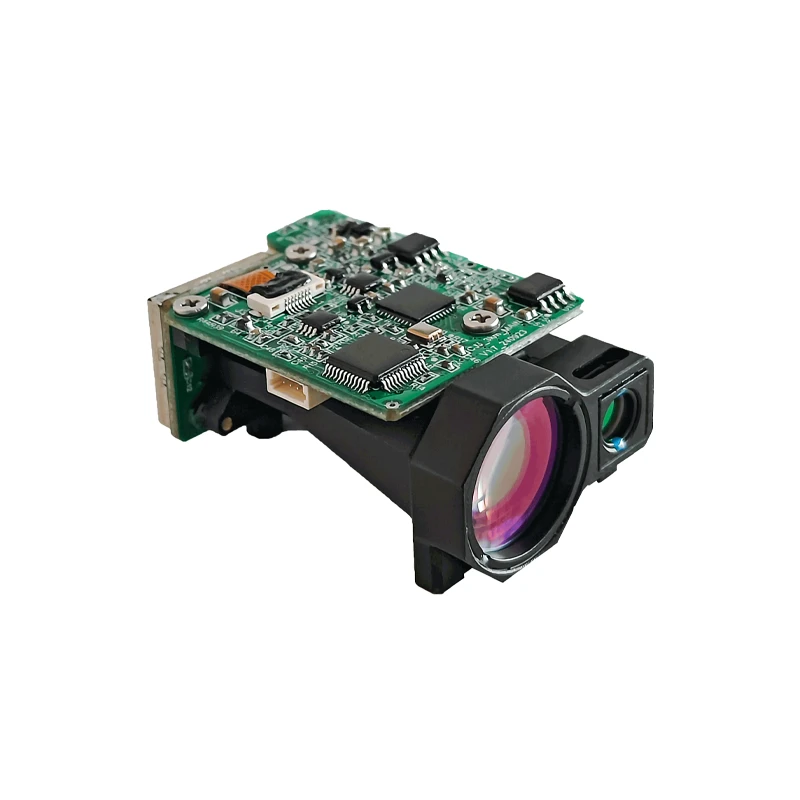

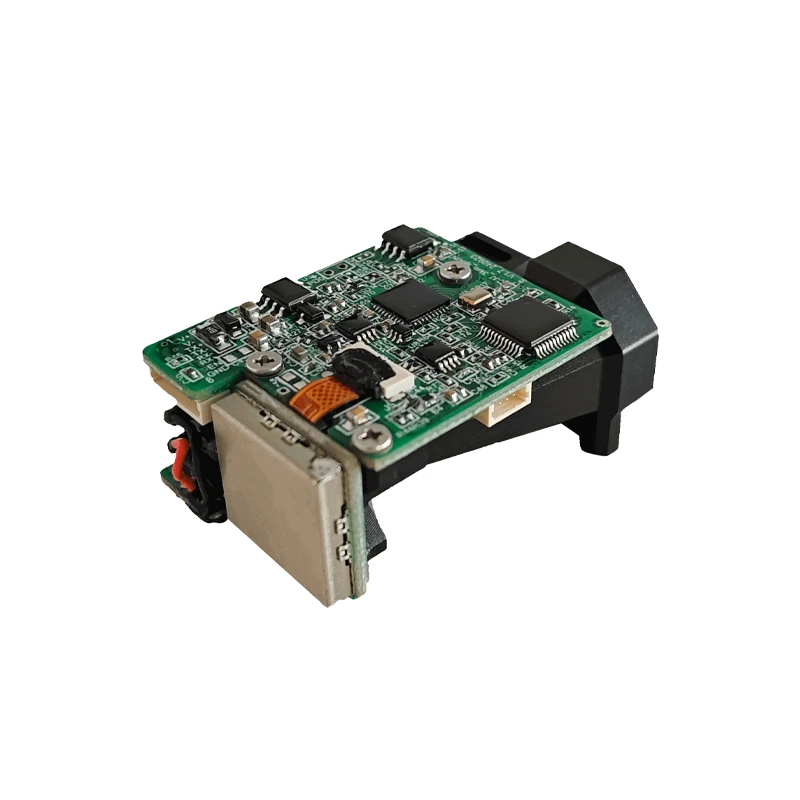

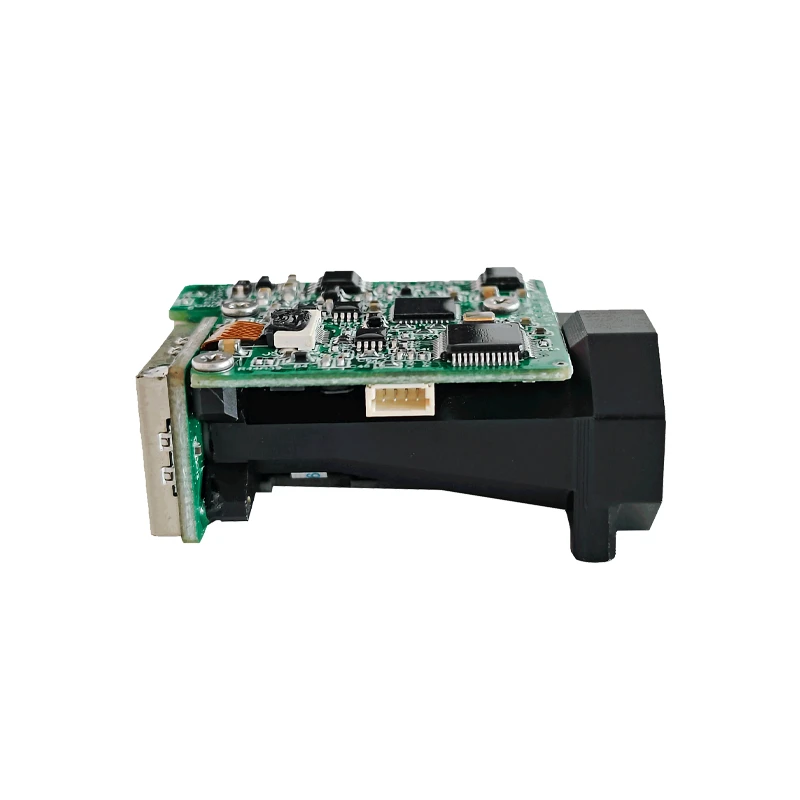

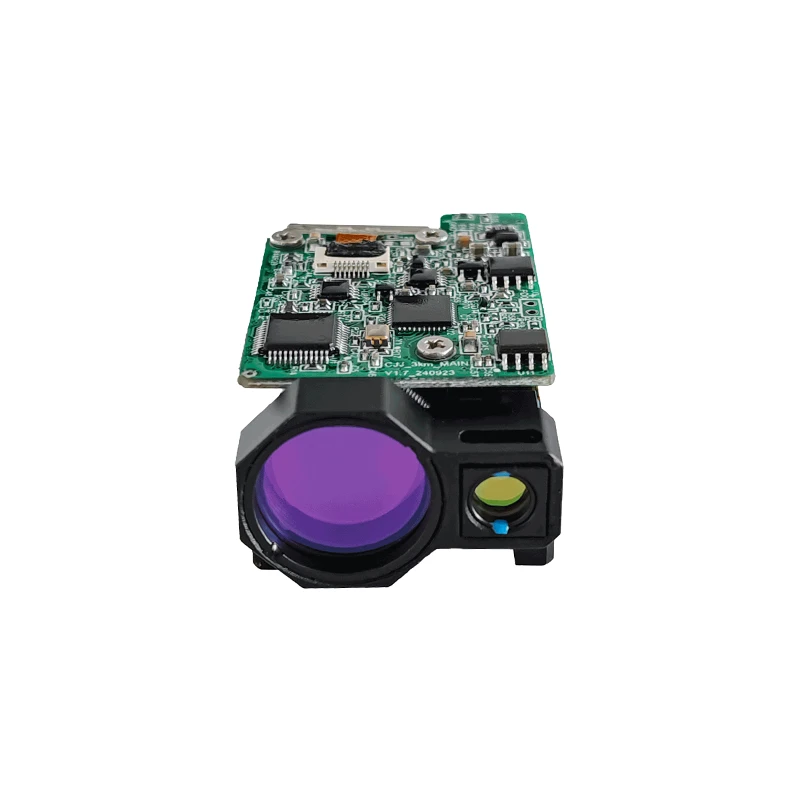

ELRF-C16 laser range finder module is a laser range finder module developed based on the 1535nm erbium laser independently developed by Lumispot it adopts single pulse TOF ranging mode and has a maximum measuring range of >3km. lt is composed of laser, transmitting optical system, receiving optical system and control circuit board, and communicates with host computer through TTL/RS422 serial port provides host computer test software and communication protocol, which is convenient for users to develop the second time. lt has the characteristics of small size, light weight, stable performance, high impact resistance, first-class eye safety, etc., and can be applied to hand-held, vehicle-mounted, pod and other photoelectric equipment.

Specifications

Maximum Measurement Range:	5000 m
Minimum Measurement Range:	15 m
Size:	≤482131mm
Weight:	<33g±1g
Wavelength:	1535nm±5nm
Laser Divergence Angle:	≤0.6mrad
Ranging Frequency:	1-10Hz Adjustable
Minimum Measuring Range:	≤15m
Accuracy Ratio:	≥98%
Power Supply Voltage:	DC5V-28V
Standby Power Consumption:	≤0.2W
Average Power Consumption:	≤0.7W
Peak Power Consumption:	≤3W
Operating Temperature:	-40℃-70℃
Storage Temperature:	-55℃-75℃
Communication Interface:	TTL / RS422

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

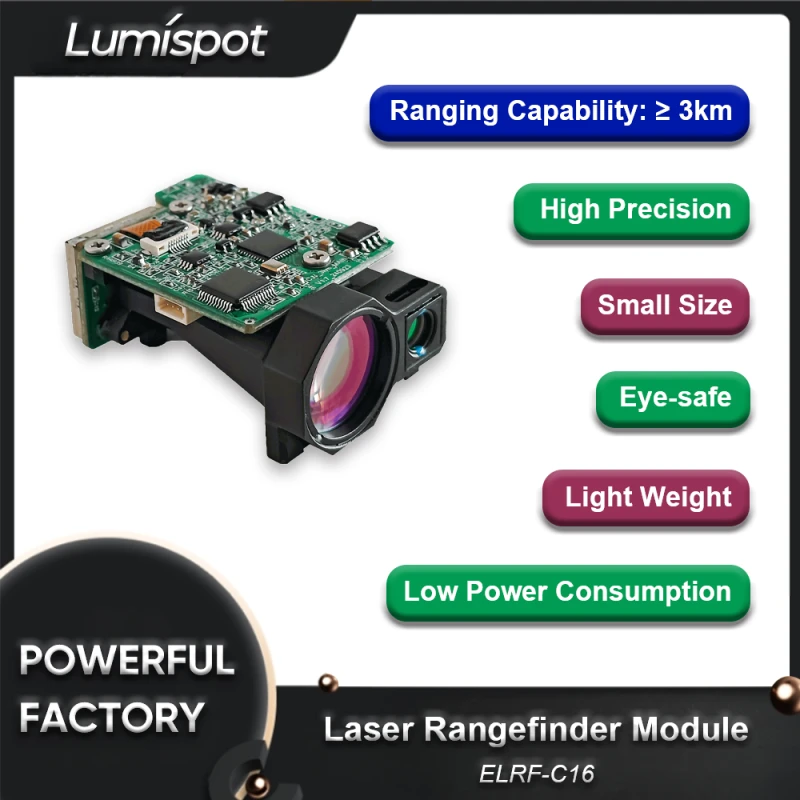

Features

Small Size
Light Weight
Low Power Consumption
High Precision

Applications

This product is mainly used in laser ranging, targeting and security field.

Request Quote

To: Wuxi Lumispot Photoelectric Science & Technology Co., Ltd.
Re: Lumispot 1535nm 3km Micro Professional Range Finder Module for Sale

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Wuxi Lumispot Photoelectric Science & Technology Co., Ltd.
On FindLight:: since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

How do I choose the right rangefinder module for my needs?

Consider the application, range requirements, accuracy, durability, and any additional features such as waterproofing or integration capabilities. It's also important to compare reviews and prices of different models.

Do rangefinder modules require maintenance?

Minimal maintenance is required, such as keeping the lens clean and protecting the device from impacts and extreme conditions. Regular battery replacement or charging is also necessary.

Do Lumispot Tech offer OEM rangefinder module service?

Yes, Lumispot Tech is a laser rangefinder module manufacturer, parameters can be customized as needed, or you can choose the standard parameters of our range finder module product. For more information or questions, please feel free to contact our sales team with your needs.

I need a Mini LRF module for handheld device, which one is the best?

Most of our laser modules in the rangefinding series are designed as compact size and lightweight especially the 905nm and 1535nm series, ranging from 1km to 12km. For the smallest one, we would recommend the ELRF-C16 which weighs only 33g with a ranging ability of 3km.
