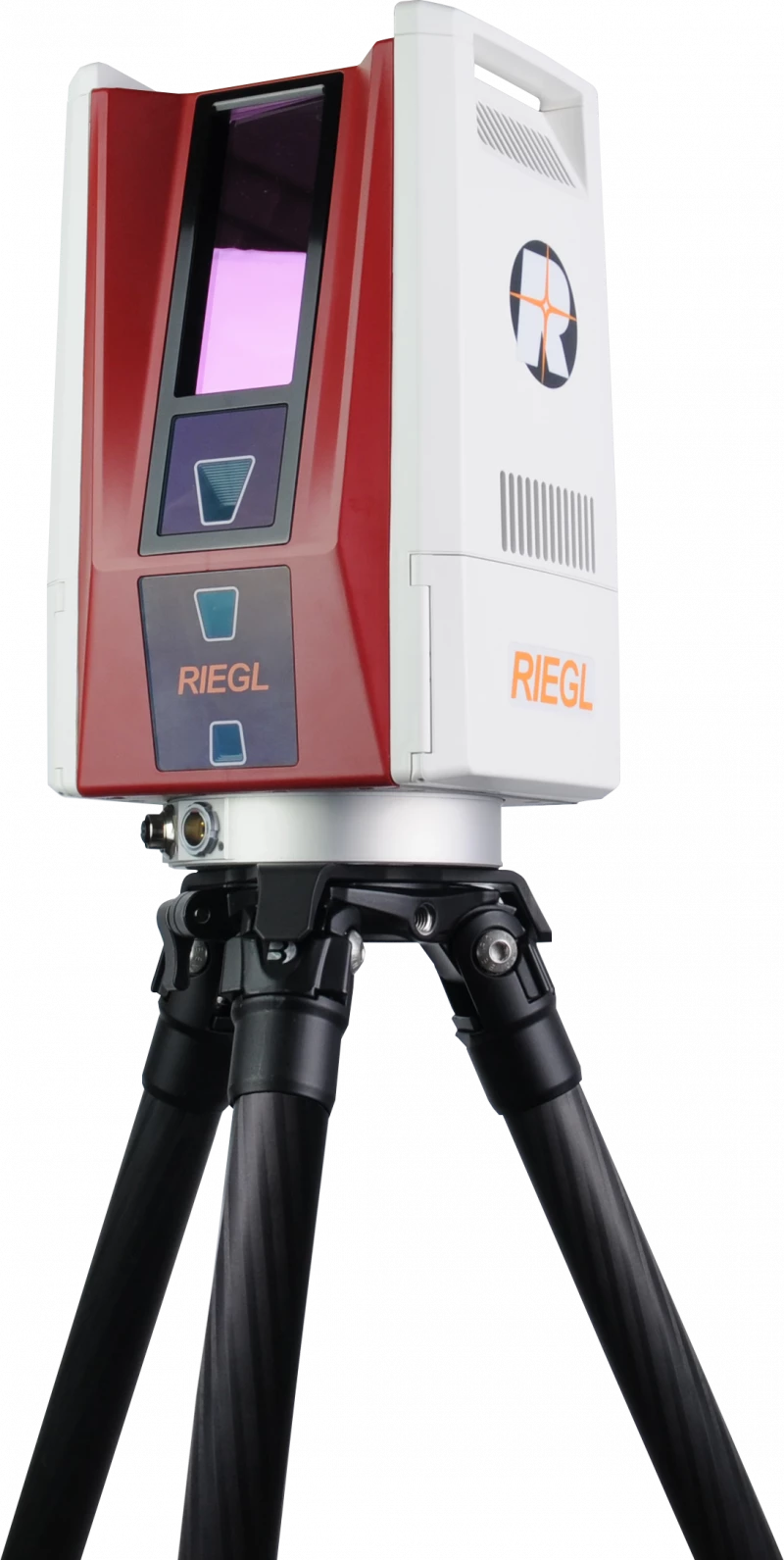

RIEGL VZ-600i
Description
The RIEGL VZ-600i offers a broad range capability from 0.5 m up to 1000 m and is suitable for indoor and outdoor 3D mapping applications. 3D position accuracy of 3 mm, less than 30 sec scan time for high-resolution scans with 6 mm point spacing at 10 m, enabling more than 60 scan positions/hour with real-time registration, weight less than 6 kg (13 lbs), 2.2 MHZ PRR, three internal cameras & GNSS integrated, and also prepared for mobile mapping applications – these key features will speed up your workflow in indoor and outdoor applications like AEC (Architecture, Engineering, Construction), BIM (Building Information Modeling), as-built surveying, forensic and crash scene investigation, archeology & cultural heritage documentation, forestry, and many more.
RIEGL VZ-600i
Specifications |
|
|---|---|
| Maximum Measurement Range: | 220 m |
| Minimum Measurement Range: | 100 m |
| Measurement Rate: | - meas./sec |
| Accuracy: | 5 mm |
| Precision: | 3 mm |
| Scan Speed: | 4 to 420 lines/sec |
Features
- broad range capability (0.5 m up to 1000 m)
- 5 sec scan time for low resolution overview scans
- 30 sec scan time for 6 mm resolution @ 10 m distance
- 60 scan positions per hour (with image acquisition)
- 3D position accuracy up to 3 mm @ 50 m
- high laser pulse repetition rate of up to 2.2 MHz
- scan speed up to 420 lines/sec
- eye safe operation at Laser Class 1
- precise real-time onboard registration
- internal cameras (offering optional on-board face detection and automatic facial blurring in real-time before image storage)
- internal GNSS receiver / external RIEGL GNSS RTK receiver (optional)
- optional external system camera or panorama camera
- weight 6 kg / 13 lbs
- prepared for mobile use
Applications
- As-Built Surveying
- Architecture & Facade Measurements
- Civil Engineering
- Building Information Modeling (BIM)
- City Modeling
- Forensics & Crash Scene Investigation
- Emergency Management Planning
- Archeology and Cultural Heritage Documentation
- Tunnel Surveying
- Forestry
- Researc
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Austria
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Yes, the RIEGL VZ-600i is suitable for indoor and outdoor 3D mapping applications.
The RIEGL VZ-600i can be used for applications such as AEC (Architecture, Engineering, Construction), BIM (Building Information Modeling), as-built surveying, forensic and crash scene investigation, archeology & cultural heritage documentation, forestry, and many more.
The 3D position accuracy of the RIEGL VZ-600i is up to 3 mm at 50 m.
The RIEGL VZ-600i offers a broad range capability from 0.5 m up to 1000 m.
The weight of the RIEGL VZ-600i is less than 6 kg (13 lbs).
