Description

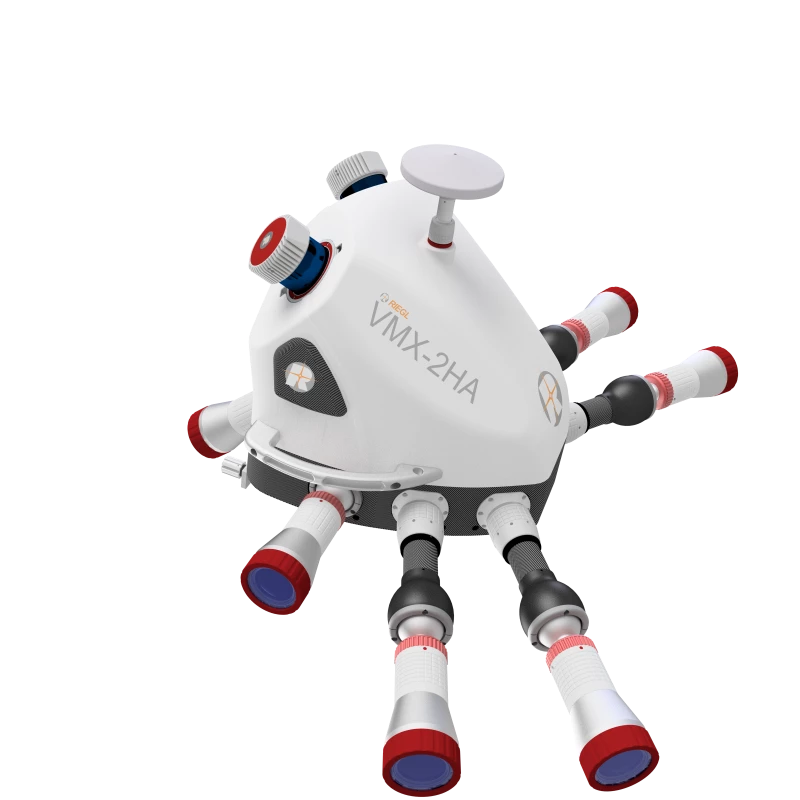

The RIEGL VMX-2HA is a High Speed, High Performance Dual Scanner Mobile Mapping System which provides dense, accurate, and feature-rich data at highway speeds.
With 3.6 million measurements and 500 scan lines per second, this turn-key solution is ideally suited for survey-grade mobile mapping applications.
This powerful technology comprises two RIEGL VUX-1HA²² High Accuracy LiDAR Sensors and a high performance INS/GNSS unit, housed in an aerodynamically-
shaped protective cover.
A camera interface for up to 9 optional cameras enables complementation of the LiDAR data with precisely geo-referenced images.
RIEGL VMX-2HA
Specifications
| Maximum Measurement Range: | 475 m |
|---|---|
| Minimum Measurement Range: | 1 m |
| Measurement Rate: | Not Specified |
| Accuracy: | 5 mm |
| Precision: | 3 mm |
Download Data Sheet
Features
- High laser pulse repetition rate of up to 3.6 MHz
- 500 scan lines per second
- Range 475 m
- Eye safe operation at Laser Class 1
- Field of view 360°
- Multiple target capability
- Aerodynamically-shaped protective cover
- Camera interface for up to 9 optional cameras
- High-Speed 10GigE Link
- RIEGL VMX-2HA BC "Basic Configuration": version reduced in weight and size
Applications
- Transportation Infrastructure Mapping
- Road Surface Measurements
- City Modeling
- Rapid Capture of Construction Sites and Bulk Material
- Surveying in Open-Pit Mining
- GIS Mapping and Asset Management
- As-Built Surveying
Frequently Asked Questions
What is the RIEGL VMX-2HA used for?
The RIEGL VMX-2HA is used for survey-grade mobile mapping applications, transportation infrastructure mapping, road surface measurements, city modeling, construction site capture, open-pit mining surveying, GIS mapping, and asset management, as well as as-built surveying.
How many measurements does the RIEGL VMX-2HA provide?
The RIEGL VMX-2HA provides 3.6 million measurements.
How many scan lines per second does the RIEGL VMX-2HA have?
The RIEGL VMX-2HA has 500 scan lines per second.
Is the RIEGL VMX-2HA safe to use?
Yes, the RIEGL VMX-2HA is eye safe and operates at Laser Class 1.
How many optional cameras can be used with the RIEGL VMX-2HA?
The RIEGL VMX-2HA can interface with up to 9 optional cameras for complementing LiDAR data with geo-referenced images.
