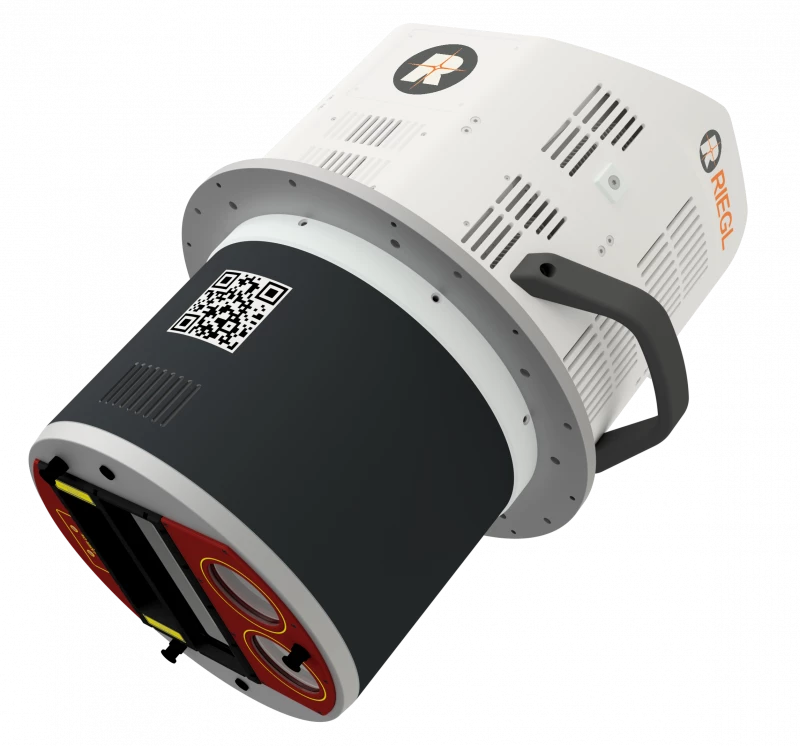

RIEGL VQ-1460 | RIEGL VQ-1260
Description
The VQ-1460 is one of RIEGL‘s latest high-end airborne laser scanning systems, suitable for a wide field of applications – from high-point density wide area mapping to ultra-high resolution city mapping or corridor mapping.
The unique design features pulse repetition rates from 4.4 MHz, resulting in a regular point spacing and an almost constant point density distribution on the ground. The system features large measurement distances of up to 2300 m at maximum PRR, and 5400 m at minimum PRR, for a target reflectance of 20 %, resulting in an unsurpassed high efficiency in area acquisition of e.g. up to 615 km²/h at 150 knots flying speed for an average of 8 points per square meter.
A newly designed optical fronted significantly minimizes for near-range echoes due to atmospheric clutter, resulting in clean point clouds. Online-Waveform processing and full-waveform processing capabilities are a matter of course for this class of equipment.
Scan data and camera images are stored on removable hard disks that can be accessed directly on the device, eliminating the need for an external data recorder.
A high-performance IMU/GNSS unit and one or two optional high-resolution RGB/NIR cameras are seamlessly integrated in the compact and user-friendly designed housing. The standardized mounting flange fits typical hatches or gyro-stabilized leveling mounts for maintaining optimum point distribution.
The VQ-1260 is one of RIEGL‘s latest high-end airborne laser scanning systems, suitable for a wide field of applications – from high-point density wide area mapping to ultra-high resolution city mapping or corridor mapping.
The unique design features pulse repetition rates from 2.2 MHz, resulting in a regular point spacing and an almost constant point density distribution on the ground. The system features large measurement distances of up to 2300 m at maximum PRR, and 5400 m at minimum PRR, for a target reflectance of 20 %, resulting in an unsurpassed high efficiency in area acquisition of e.g. up to 500 km²/h at 150 knots flying speed for an average of 8 points per square meter.
A newly designed optical frontend significantly minimizes for near-range echoes due to atmospheric clutter, resulting in clean point clouds. Online-Waveform processing and full-waveform processing capabilities are a matter of course for this class of equipment.
Scan data and camera images are stored on removable hard disks that can be accessed directly on the device, eliminating the need for an external data recorder.
A high-performance IMU/GNSS unit and one or two optional high- resolution RGB/NIR cameras are seamlessly integrated in the compact and user-friendly designed housing. The standardized mounting flange fits typical hatches or gyro-stabilized leveling mounts for maintaining optimum point distribution.
RIEGL VQ-1460 | RIEGL VQ-1260
Specifications |
|
|---|---|
| Maximum Measurement Range: | 5,400 | 5,400 m |
| Minimum Measurement Range: | 100 | 100 m |
| Measurement Rate: | 2,935,000 | 1,468,000 meas./sec |
| Accuracy: | 20 | 20 mm |
| Precision: | 20 | 20 mm |
Features
RIEGL VQ-1460
- high pulse repetition rates of up to 4.4 MHz
- up to 2.93 million measurements per second on the ground
- best point distribution for optimum target resolution
- excellent atmospheric clutter suppression
- multiple target capability
- online waveform processing and full waveform data recording
- on-board graphical user interface for easy access to primary scanner parameters
- integrated inertial measurement unit and GNSS receiver
- prepared for the integration of up to two high resolution RGB/NIR cameras
- optimized for interfacing with typical hatches and stabilized platforms
- deteachable handgrips for facilitated handling
RIEGL VQ-1260
- high pulse repetition rates of up to 4.4 MHz
- up to 2.93 million measurements per second on the ground
- best point distribution for optimum target resolution
- excellent atmospheric clutter suppression
- multiple target capability
- online waveform processing and full waveform data recording
- on-board graphical user interface for easy access to primary scanner parameters
- integrated inertial measurement unit and GNSS receiver
- prepared for the integration of up to two high resolution RGB/NIR cameras
- optimized for interfacing with typical hatches and stabilized platforms
- deteachable handgrips for facilitated handling
Applications
- Ultra Wide Area / High Altitude Mapping
- Ultra-High Point Density Mapping
- Mapping of Complex Urban Environments
- Glacier & Snowfield Mapping
- City Modeling
- Mapping of Lakesides & River Banks
- Agriculture & Forestry
- Corridor Mapping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Austria
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The maximum measurement distance of the RIEGL VQ-1460 is up to 2300 m at maximum pulse repetition rate (PRR).
The target reflectance for the RIEGL VQ-1460 is 20%.
Yes, the RIEGL VQ-1460 has online waveform processing capabilities.
Yes, the RIEGL VQ-1460 can store scan data and camera images on removable hard disks that can be accessed directly on the device.
The RIEGL VQ-1460 can integrate one or two optional high-resolution RGB/NIR cameras.
