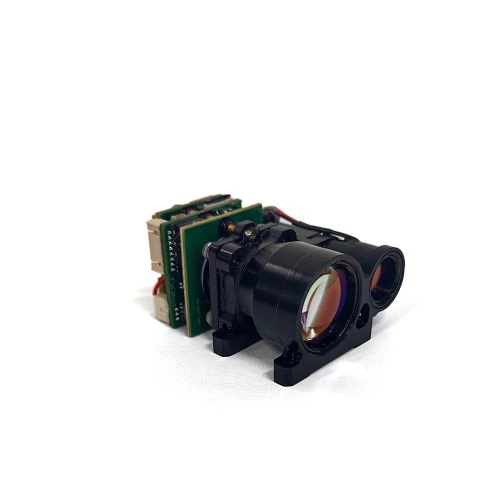

Rangefinder Module OEM 10km
Description
LumiSpot's L1535 Rangefinder Module Series: Redefining Precision with Advanced Laser Rangefinder Modules
Embark on a journey to the forefront of laser measurement technology with LumiSpot's L1535 LRF Module Series. These state-of-the-art Rangefinder Modules are a testament to our commitment to innovation, safety, and precision.
Performance specifications include:
- Wavelength: 1535nm ± 5nm
- Laser divergence angle: ≤ 0.3mrad
- Adjustable continuous ranging frequency: 1~10Hz
- Ranging accuracy: ≤ ±2m (RMS)
- Measurement reliability: ≥ 98%
- Minimum measuring range: ≤ 50m
- Ranging resolution: ≤ 30m (multi-target capable)
- Power supply voltage: DC 9V to 16V (customizable)
- Weight: ≤ 140g
- Power consumption: Average power consumption ≤ 1.5W (at 1Hz operation), peak
- power consumption ≤ 5W
- Dimensions: ≤ 83mm68mm46mm
- Operating temperature range: -40°C to +60°C
- Storage temperature range: -50°C to +70°C
Rangefinder Module OEM 10km
Specifications |
|
|---|---|
| Maximum Measurement Range: | 12000 m |
| Minimum Measurement Range: | 50 m |
| Measurement Rate: | -- meas./sec |
| Accuracy: | 2000 mm |
| Precision: | -- mm |
| Operating Range: | ≥10km km |
| Laser Divergence Angle: | 0.3 mrad |
| Size: | 86*68*46 mm |
| Weight: | ≤145 g |
| Continuous Ranging Frequency: | 1-10 Hz |
| Accuracy: | ±2 m |
Features
- Developed based on 1535nm Erbium-doped glass laser
- Primary eye safety
- Fully independent development
- Patent protection, intellectual property protection
- Single pulse ranging, up to 12km
- Small size, light weight, high cost performance
- Can be carried with a variety of platforms
Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2023
Frequently Asked Questions
email:sales@lumispot-tech.com
www.lumispot-tech.com
For short to medium distances, their 905nm Rangefinder Module can measure between 1 to 12 km. The 1535nm Rangefinder Module is designed for medium ranges, offering measurements from 3 to 15 km. For longer distances, the 1570nm Rangefinder Module can handle 20 to 40 km. Lastly, the 1064nm Rangefinder Module is suitable for the longest ranges, capable of measuring from 40 to 70 km.
It's based on 1535 nm erbium-doped glass laser technology, ensuring primary eye safety and fully independent development with patent protection.
Yes, LumiSpot offers customized solutions and OEM services to tailor the LRF Modules to specific requirements.
