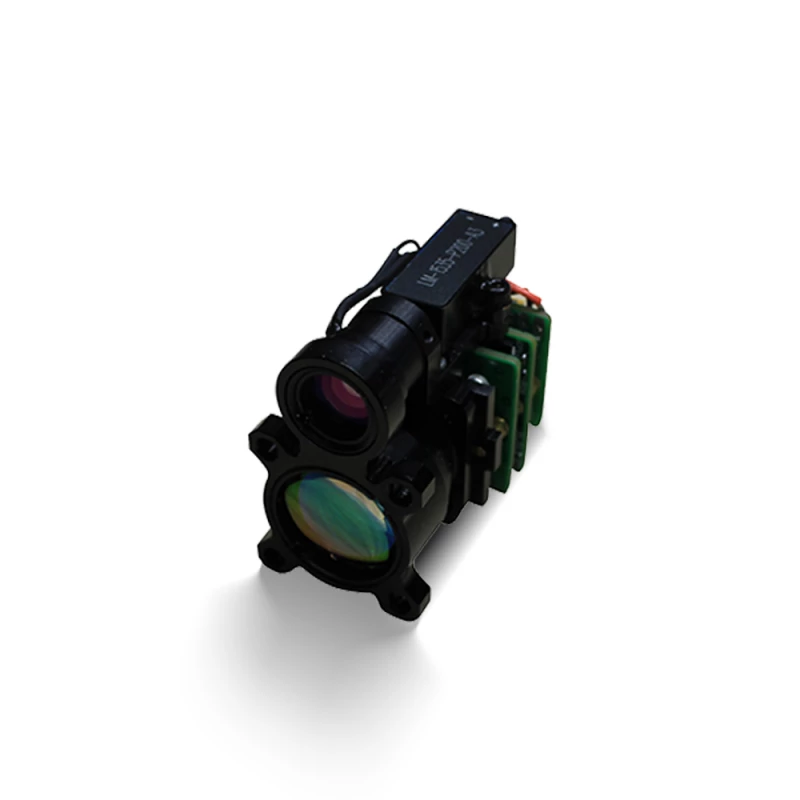

1535nm 6km Laser Rangefinder
Description
Introducing Lumispot Tech's Human Eye Safety Laser Ranging Module, a cutting-edge solution for precise distance measurement. Powered by our 1535nm laser technology, this module prioritizes safety, accuracy, and reliability.
Safety is paramount, with first-class human eye safety classification, suitable for various applications.
Versatility is key, with an adjustable ranging frequency from 1Hz to 10Hz.
Accuracy is guaranteed, with ≤ ±2m (RMS) ranging accuracy and over 98% measurement reliability.
This module operates in temperatures from -40°C to +60°C and can be stored from -50°C to +70°C.
Customization is easy with an adjustable power supply voltage, and it remains compact and lightweight, weighing ≤ 70g and measuring ≤ 72mm × 45mm × 35mm.
The 1535nm laser rangefinder ensures unwavering precision, and integration is seamless with RS422 communication and the Molex Connector Model 51021-0800.
1535nm 6km Laser Rangefinder
Specifications |
|
|---|---|
| Maximum Measurement Range: | 6000 m |
| Minimum Measurement Range: | 30 m |
| Measurement Rate: | -- meas./sec |
| Accuracy: | 2000 mm |
| Precision: | -- mm |
| Wavelength: | 1535 nm |
| Ranging Distance To Human: | 2.5 km |
| Ranging Distance To Vehicle: | 6 km |
| Laser Divergence Angle: | 0.5 mrad |
| Continuous Ranging Frequency: | 1-10 Hz |
| Ranging Accuracy: | 2m RMS |
| Weight: | 70 g |
| Size: | 72 x 44 x 35 mm |
Features
- Developed based on 1535nm Erbium-doped glass laser
- Primary eye safety
- Fully independent development
- Patent protection, intellectual property protection
- mall size, lightweight, high-cost performance
- Can be carried with a variety of platforms
Applications
- Laser Ranging
- Targeting
