1535nm 3km Laser Rangefinder Module
Description
3km LRF Ranging Module for Laser Distance Measurement

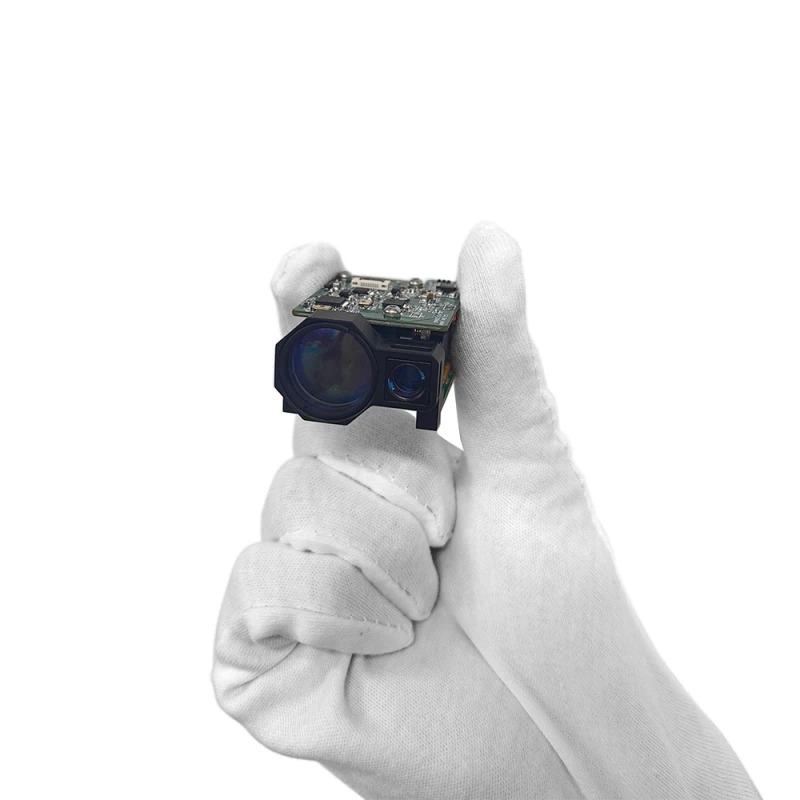

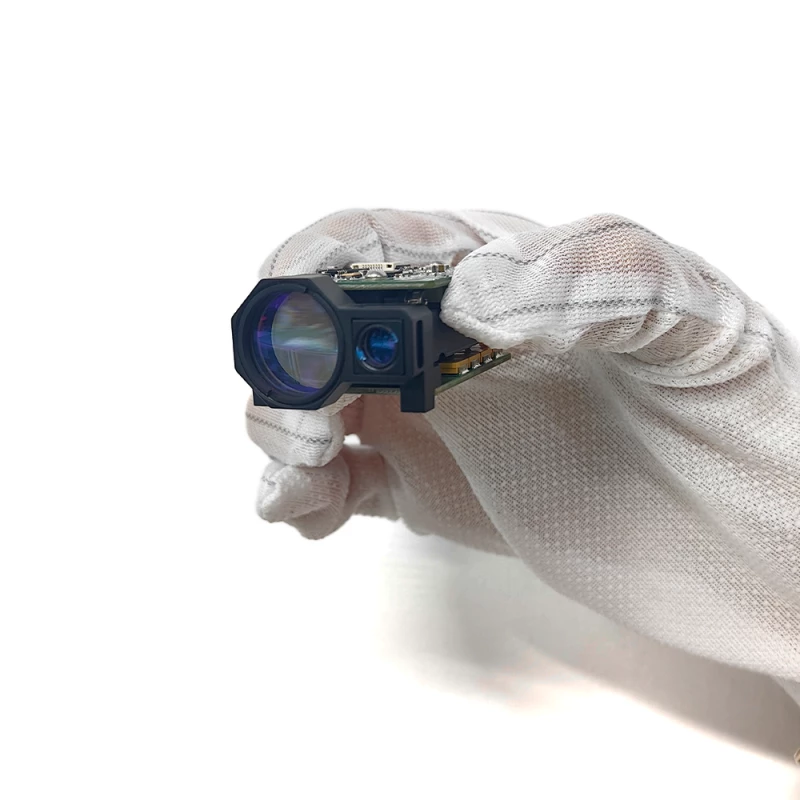

The Lumispot Tech LSP-LRS-0310F is a compact and lightweight laser rangefinder module, notable for being the smallest of its kind, weighing only 33g. It is a highly precise tool for measuring distances up to 3km, tailored for photoelectric systems where accuracy and reliability are paramount. This module is eye safety-certified and offers a wide range of technical features.
Technical Features:

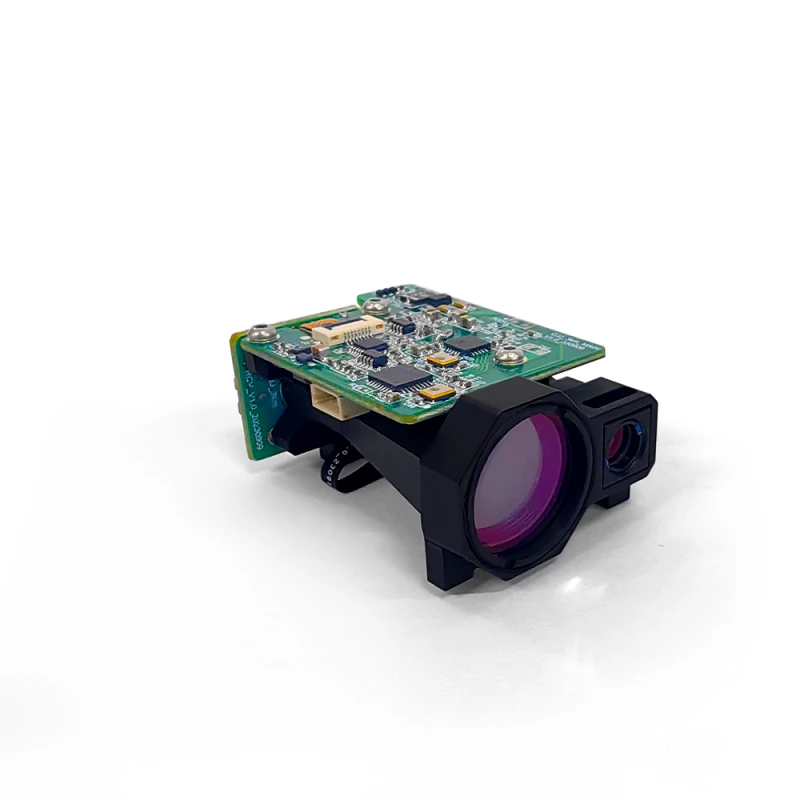

The module integrates an advanced laser, high-end transmitting and receiving optics, and a sophisticated control circuit. These components work together to provide a visible range of up to 6km and a vehicle ranging capability of at least 3km under ideal conditions.
It supports both single and continuous ranging, features range strobe and target indicators, and includes a self-inspection function for consistent performance.
Key Performance Attributes:
It operates at a precise wavelength of 1535nm±5nm and has a minimal laser divergence of ≤0.5mrad.
The ranging frequency is adjustable between 1~10Hz, and the module achieves a ranging accuracy of ≤±1.5m (RMS) with a ≥98% success rate.
It boasts a high-ranging resolution of ≤30m in multi-target scenarios.
Efficiency and Adaptability:
Despite its powerful performance, it is energy-efficient with an average power consumption of <1.0W at 1Hz and a peak of 5.0W.

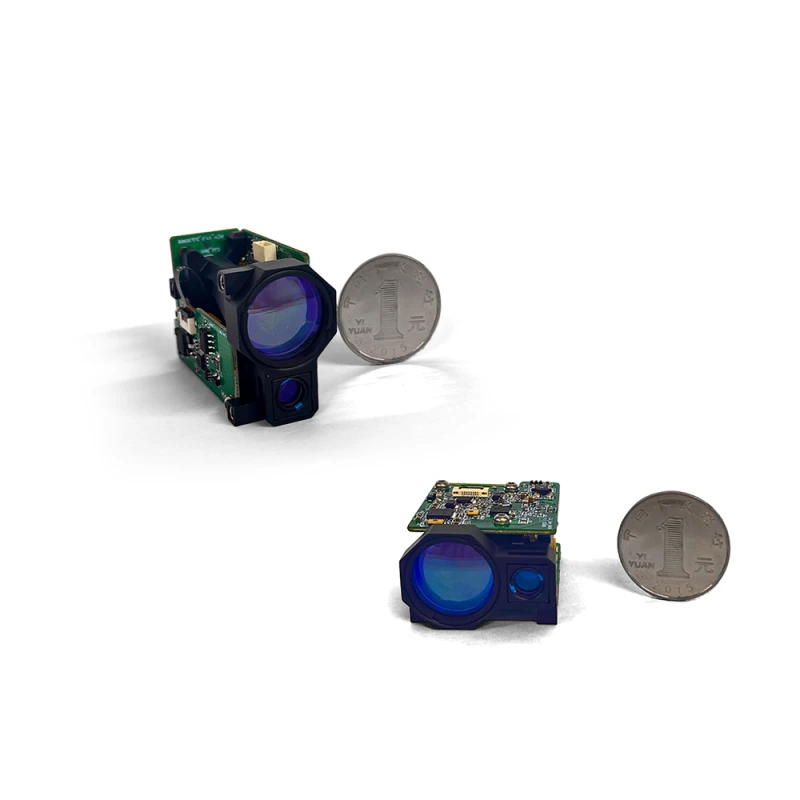

Its small size (≤48mm×21mm×31mm) and light weight make it easy to integrate into various systems.
Durability:
It operates in extreme temperatures (-40℃ to +65℃) and has a wide voltage range compatibility (DC6V to 36V).
Integration:

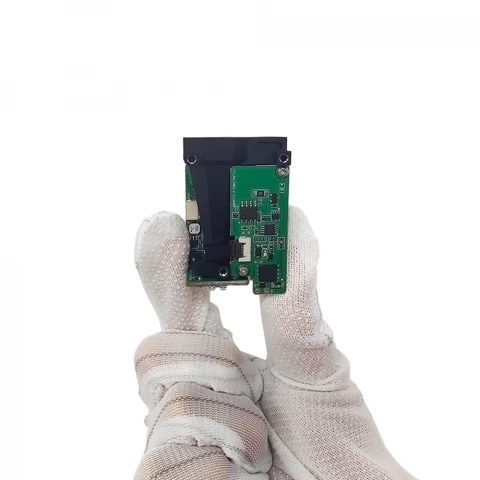

The module includes a TTL serial port for communication and a specialized electrical interface for easy integration.
The LSP-LRS-0310F is ideal for professionals needing a reliable, high-performance laser rangefinder, combining advanced features with exceptional performance. Contact Lumispot Tech for more information on this revolutionary distance measurement solution.
Our resource: Laser Rangefinder Market Report: Size, Growth, and Trends
1535nm 3km Laser Rangefinder Module
Specifications |
|
|---|---|
| Maximum Measurement Range: | 3000 m |
| Minimum Measurement Range: | 20 m |
| Measurement Rate: | 10 meas./sec |
| Accuracy: | -- mm |
| Precision: | 3000 mm |
| Wavelength: | 1535 nm |
| Ranging Distance To Human: | 1.2 km |
| Mode No.: | LSP-LRS-0310MS |
| Continous Ranging Frequency: | 1-10 Hz |
| Weight: | 50 g |
| Dimension: | 53 x 37 x 24 mm |
| Minimum Measuring Range: | 20 m |
| Range Resolution: | 30 m |
| Average Power Consumption: | 1W @1Hz |
| Interface: | RS422, 115200bps |
Features
- Developed based on 1535nm Erbium-doped glass laser
- Primary eye safety
- Fully independent development
- Patent protection, intellectual property protection
- Single pulse ranging
- Small size, lightweight, high-cost performance
- Can be carried with a variety of platforms
Applications
- Laser Ranging (distance measurement)
- Targeting
- Laser Security and Monitoring
