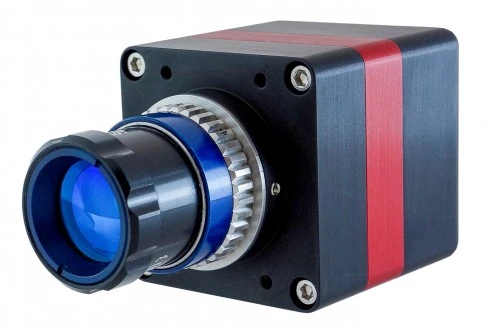

Owl 1280 VIS-SWIR High-Resolution Digital Camera with Low Noise
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Description
The Owl 1280 VIS-SWIR Digital Camera by Raptor Photonics is a cutting-edge imaging solution designed to deliver exceptional high-resolution and high-sensitivity performance in the visible to short-wave infrared (VIS-SWIR) spectrum. Engineered with precision, this camera is ideal for those demanding the best in HD VIS-SWIR imaging capabilities. Its advanced technology enables superior imaging from 0.4µm to 1.7µm, making it a preferred choice for applications requiring detailed and clear visuals even in challenging light conditions.
At the heart of the Owl 1280 is its impressive 1280 x 1024-pixel resolution with a 10µm pitch, ensuring high-definition images with remarkable clarity. The camera's low readout noise of less than 35 electrons further enhances its ability to capture fine details, even in low-light environments. This feature, combined with its on-board Automated Gain Control (AGC) and Intelligent 3-point Non-Uniformity Correction (NUC), guarantees optimal image quality across various lighting situations.
The Owl 1280 VIS-SWIR Digital Camera is built with an InGaAs PIN-Photodiode sensor, offering peak quantum efficiency of over 85%. This ensures that the camera maximizes the capture of available light, providing superior image quality. With a programmable frame rate of up to 60Hz and a global shutter mode, the camera is versatile enough to meet the needs of both fast-paced and static imaging scenarios. Compact and efficient, the Owl 1280 is designed for easy integration into a wide range of systems, making it an invaluable tool for professionals seeking excellence in VIS-SWIR imaging.
Owl 1280 VIS-SWIR High-Resolution Digital Camera with Low Noise
Specifications |
|
|---|---|
| Camera Type: | Scientific |
| Array Type: | InGaAs |
| Spectral Band: | 0.4 – 1.7 um |
| # Pixels (Height): | 1024 |
| # Pixels (Width): | 1280 |
| Pixel Pitch: | 10 um |
| Array Cooling: | Cooled |
| Frame Rate: | 60 Hz |
| Dynamic Range: | 14 Bit |
| Camera Control: | CameraLink |
| Noise (RMS): | <170 (LG), <35 (HG) e- |
Features
- High Resolution VIS-SWIR Technology: 1280 x 1024 resolution with 10μm pixel pitch, enabling high-quality imaging from 0.4μm to 1.7μm.
- Exceptional Sensitivity: 640 x 512 resolution with 20μm pitch using 2x2 binning for enhanced low light imaging capabilities.
- Minimal Readout Noise: Less than 35 electrons readout noise, providing superior VIS-SWIR detection limits.
- Advanced Automated Gain Control (AGC): On-board AGC ensures clear video output in varying light conditions.
- Intelligent Non-Uniformity Correction (NUC): On-board 3-point NUC for the highest quality photos.
- High Frame Rate: Programmable frame rate from 10Hz to 60Hz with 25ns resolution for dynamic imaging.
- Wide Wavelength Range: Spectral response from 0.4µm to 1.7µm, suitable for diverse applications.
- Quantum Efficiency: Peak efficiency greater than 85%, with specific efficiencies over 73% at 1.064μm and over 80% at 1.55μm.
- Global Shutter Mode: Ensures sharp image capture without motion blur.
- Compact and Lightweight Design: Dimensions of 50mm x 50mm x 61.2mm and weight of 247g, making it easy to integrate into various systems.
- Flexible Optical Interface: Compatible with C mount and M42, with a selection of SWIR lenses available.
- Durable Operating Range: Operating case temperature from -20˚C to +55˚C and storage temperature from -30˚C to +60˚C.
- Low Power Consumption: Less than 3W with TEC off and NUC on, and less than 5W with TEC on.
Applications
- Surveillance & Laser Detection: Detects 860, 1064 & 1550 nm laser spots for security and targeting.
- Driving Vision Enhancement (DVE): Enhances visibility for advanced vehicular systems.
- Airborne & Ground Payloads: Lightweight for UAVs and rugged systems.
- Astronomy & Beam Profiling: High sensitivity imaging for scientific research.
- Hyperspectral Imaging: Enables precise spectral analysis in life sciences and materials.
- Semiconductor & Solar Inspection: Non-destructive evaluation of wafers and cells.
- Thermography & Vision Enhancement: Broad range thermal and night vision imaging.
Frequently Asked Questions
The OWL 1280 camera has less than 35 electrons readout noise, which enables the highest VIS-SWIR detection limit.
The OWL 1280 camera has a wavelength range of 0.4µm to 1.7µm.
The OWL 1280 camera has a resolution of 1280 x 1024 pixels.
The OWL 1280 camera has a pixel pitch of 10µm x 10µm.
The OWL 1280 camera can run from 10 up to 60Hz.
