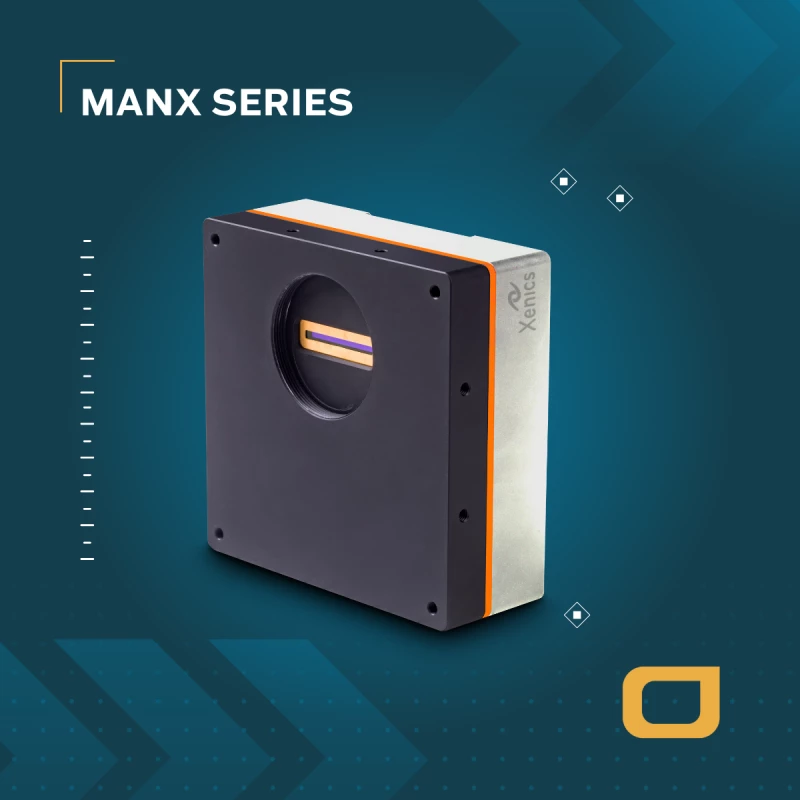

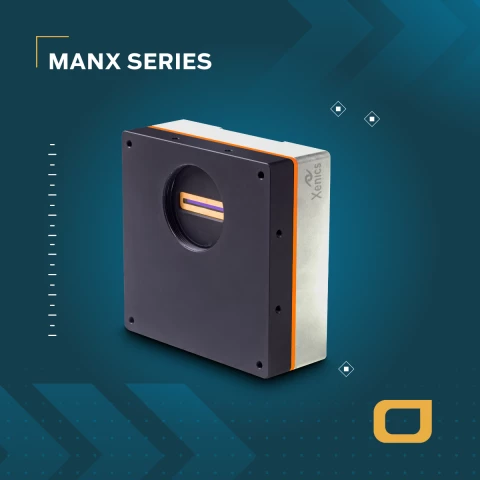

Thumbnail of Manx R and SQ Series Short-Wave Infrared (SWIR) Camera photo 1

Description

Introducing the Manx R Series, the pinnacle of high-performance short-wave infrared (SWIR) imaging technology. Engineered with an in-house developed InGaAs linear detector, the Manx R Series redefines speed and precision in line-scan imaging. With an extraordinary capability of achieving line rates up to 256 kHz, it holds the title of the fastest line-scan InGaAs camera globally. This remarkable speed is complemented by its unparalleled low noise performance, making it the ideal choice for demanding imaging applications where clarity and speed are paramount.

The Manx R Series is not just about speed; it also boasts an impressive dynamic range, ensuring that every image captured is of the highest quality. The integration of CoaXPress interfacing guarantees swift and reliable data transfer, enhancing the camera's efficiency and performance in real-time applications. Whether utilized in spectroscopy or spectral-domain optical coherence tomography (OCT), the Manx R Series delivers consistent, high-resolution results that professionals can rely on.

Designed with practicality in mind, the Manx R Series features a compact form factor with dimensions of 102 mm x 102 mm x 40 mm, and a manageable weight of 900 grams, allowing for easy integration into various systems. The camera's optical interface options, including C-mount and M42, provide flexibility for diverse operational needs. With its robust build and cutting-edge technology, the Manx R Series stands as a testament to innovation in SWIR imaging, setting a new standard for performance and reliability.

Manx R and SQ Series Short-Wave Infrared (SWIR) Camera

Visit the Exosens Store

Specifications

Camera Type: Other, Industrial
Array Type: InGaAs
Spectral Band: 0.9 – 1.7 um
# Pixels (Height): 250
Pixel Pitch: 12.5 um
Array Cooling: Uncooled

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • World’s Fastest InGaAs Line-Scan Camera: The Manx R Series offers the fastest line-scan imaging available, with line rates up to 256 kHz.
  • High Resolution: Available in sensor formats with 512, 1024, or 2048 pixels, ensuring detailed and precise imaging.
  • Low Noise, Low Dark Current: Provides the lowest noise performance for a 2048 pixel SWIR linear camera, enhancing image quality.
  • Advanced SWIR Imaging: Operates within a spectral range of 900 - 1700 nm, suitable for a variety of applications.
  • Reliable Data Transfer: Utilizes CoaXPress interfacing for fast and reliable data communication.
  • Versatile Optical Interface: Compatible with C-mount or M42, with an optional M42 to F-mount adapter.
  • Compact and Lightweight Design: Dimensions of 102 mm x 102 mm x 40 mm and a weight of 900 grams make it easy to integrate into various systems.
  • Efficient Power Usage: Consumes up to 11 W, powered by a DC 24 V supply through CoaXPress.
  • Multiple Product Options: Available in different configurations to meet specific needs: Manx 512 R CXP 130, Manx 1024 R CXP 130, Manx 2048 R CXP 130, Manx 512 R CXP 260, Manx 1024 R CXP 260, Manx 2048 R CXP 260.

Applications

  • Spectroscopy: The Manx R Series is ideal for spectroscopy applications, offering high-speed and high-resolution imaging capabilities.
  • Spectral-Domain Optical Coherence Tomography (OCT): Suitable for OCT applications, the camera provides excellent dynamic range and low noise performance.
  • High-Speed Imaging: With line rates up to 256 kHz, the camera is perfect for applications requiring rapid data acquisition.
  • Low Noise and Low Dark Current: The Manx R Series ensures superior image quality with minimal noise and dark current.
  • CoaXPress Interface: Enables fast and reliable data transfer, essential for high-speed applications.
  • Flexible Optical Interfaces: Compatible with C-mount or M42, with an optional M42 to F-mount adapter for various optical setups.
  • Compact Design: The camera's dimensions (102 mm x 102 mm x 40 mm) and weight (900 gr) make it suitable for various setups and environments.

Frequently Asked Questions

What are the advantages of the Manx R?
The Manx R has the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range. It also has CoaXPress interfacing for reliable streaming of data and versatility with 4 gain modes.
What are the industrial applications that would benefit from the Manx SQ line?
The Manx SQ line is suitable for silicon wafer inspection, TFT screen inspection, food and agricultural produce sorting, and other industrial applications.
What is the highest line rate that the Manx R can achieve?
The Manx R can achieve an unprecedented line rate of up to 256 kHz (or 128 kHz), making it the fastest linescan InGaAs camera available in the world.
What is the Manx R and SQ series?
The Manx R and SQ series are high-performance short-wave infrared (SWIR) cameras that provide high speed and quality linescan imaging.
What is the resolution of the Manx R?
The Manx R is offered in 3 different resolutions of 512, 1024, or 2048 pixels.

Got more questions? Use the inquiry form to ask the supplier directly.
