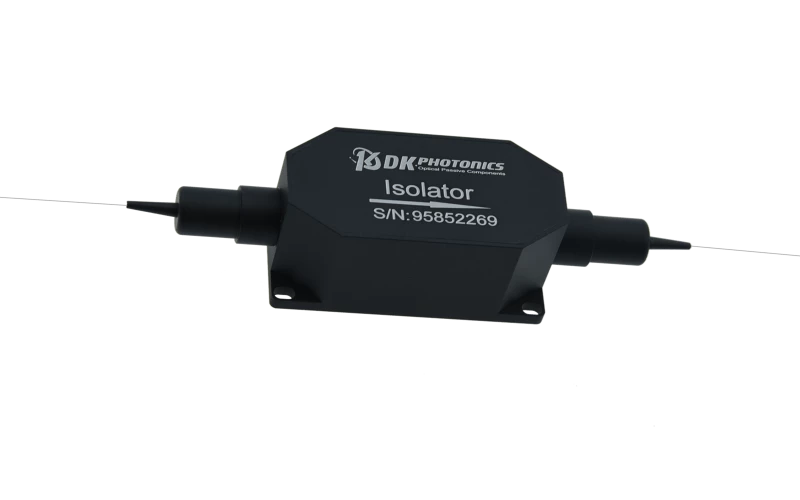

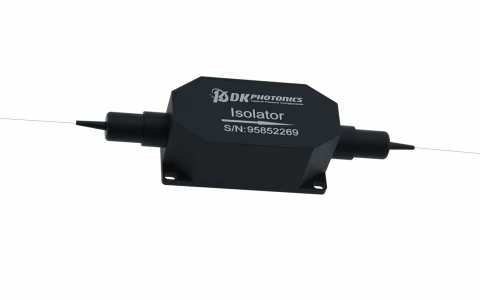

DK Photonics 1030 nm TGG Fiber Isolator

Description

The DK Photonics 1030nm TGG Based Optical Isolator is a high-performance component designed to enhance the stability and efficiency of optical systems by effectively suppressing back reflections and back scattering. Utilizing terbium gallium garnet (TGG) as the core material, this isolator delivers exceptional isolation and low insertion loss, making it an ideal choice for demanding applications in fiber optic amplifiers, fiber lasers, and precision test and measurement instrumentation.

Engineered for reliability, the 1030nm TGG Based Optical Isolator exhibits excellent environmental stability, ensuring consistent performance even under challenging operating conditions. Its robust design supports a wide range of power handling capabilities, from 300mW up to 150W, accommodating both standard and high-power requirements. The device is available in both polarization-insensitive and polarization-maintaining configurations, allowing seamless integration into various optical setups.

This isolator is particularly well-suited for use in advanced laser systems and optical transmitters, where minimizing feedback is critical to maintaining signal integrity and protecting sensitive components. The flexible design allows for customization of fiber pigtails, operating wavelengths (from 500nm to 2100nm), and power handling specifications to meet unique application needs.

Whether for research, industrial, or telecommunications environments, the DK Photonics 1030nm TGG Based Optical Isolator provides a reliable and cost-effective solution for optimizing optical system performance.

Specifications

Type Of The Device:	Isolator
Operating Wavelength:	1030 nm
Max Power:	0.5 W
Min Isolation:	26 dB
Operating Wavelength Range:	±10 nm
Typ. Peak Isolation:	33 dB
Typ. Insertion Loss:	0.6 dB
Max. Insertion Loss (at 23°C):	1.0 dB
Max. PDL(for SM Fiber):	0.15 dB
Min. Return Loss:	45 dB
Max. Peak Power For Ns Pulse:	1-5-10 dB
Max. Tensile Load:	5 N
Fiber Type:	HI1060-XP, 10/125 SC, or other
Operating Temperature:	0 to +70 ℃
Storage Temperature:	-40 to +85 ℃
Dimensions:	58x28x26 mm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High Isolation Performance: Ensures superior suppression of back reflections and backscattering, protecting sensitive optical components and improving system stability.
Low Insertion Loss: Minimizes signal loss for maximum transmission efficiency, ideal for high-performance fiber optic systems.
Excellent Environmental Stability & Reliability: Engineered for robust operation in demanding environments, ensuring consistent performance over time.
Wide Power Handling Range: Supports optical power from 300mW up to 150W (customizable), suitable for both low and high-power applications.
Broad Wavelength Compatibility: Standard operation at 1030nm, with customizable options from 500nm to 2100nm to fit diverse application needs.
Polarization Insensitive & Polarization Maintaining Options: Available in both PI and PM configurations for versatile integration into various optical setups.
Customizable Fiber Pigtails & Connectors: Offers a range of fiber types, connector options, and pigtail lengths to meet specific system requirements.
Compact and Flexible Package Design: Space-saving form factor with customizable dimensions to fit different installation environments.
Cost-Effective Solution: Delivers high performance at a competitive price point, making it suitable for both research and industrial applications.
Comprehensive Application Support: Ideal for use in fiber optic amplifiers, fiber lasers, test and measurement equipment, and instrumentation.
Custom Engineering Available: DK Photonics provides tailored solutions for unique requirements, including special wavelengths, power handling, and fiber types.

Applications

Fiber Optic Amplifiers
Enhances the performance of optical amplifiers by preventing back reflections and feedback, ensuring stable and efficient signal amplification.
Fiber Optic Lasers
Protects laser sources from destabilizing back reflections, improving laser stability, output quality, and lifespan.
Test and Measurement Equipment
Ensures accurate and reliable measurements by minimizing noise and interference caused by reflected signals in optical test setups.
Optical Communication Systems
Maintains signal integrity in high-speed fiber optic networks by suppressing backscattering and reflections, crucial for long-haul and metro networks.
Optical Transmitters and Receivers
Prevents unwanted feedback into sensitive transmitter and receiver modules, enhancing overall system performance and reliability.
Laser-Based Medical Devices
Protects sensitive laser components in medical imaging and surgical equipment from back reflections, ensuring patient safety and device longevity.
Industrial Laser Processing
Used in laser cutting, welding, and marking systems to prevent back-reflected light from damaging high-power laser sources.
Optical Sensing Systems
Improves accuracy and stability in fiber optic sensors by eliminating interference from reflected signals.
Quantum Optics and Research
Essential in experimental setups to maintain unidirectional light propagation and reduce noise in sensitive quantum measurements.
Spectroscopy Systems
Enhances measurement precision in spectroscopic instruments by minimizing stray reflections and feedback.
Optical Instrumentation
Ensures optimal performance and reliability in various optical instruments by controlling light direction and suppressing unwanted reflections.
High-Power Laser Applications
Suitable for high-power fiber lasers and amplifiers, offering robust protection against back-reflected light in demanding industrial and scientific environments.
Research and Development
Widely used in R&D labs for developing and testing new fiber optic devices and systems, where precise control of light propagation is critical.
