Description
The Fiber Optic Isolators offered by OZ Optics are designed to handle high optical power and provide excellent isolation levels with low insertion loss.
These isolators are available in polarization sensitive and insensitive versions, covering a wavelength range of 532nm to 2000nm. They are compact in size and built with stable and reliable designs.
Fiber Optic Isolators for High Power Applications
Specifications
Type Of The Device: | Isolator |
---|---|
Operating Wavelength: | 2000 nm |
Max Power: | 10 W |
Min Isolation: | 60 dB |
Insertion Loss: | <1.4 dB |
Isolation Levels: | >60 dB |
Polarization Dependent Losses: | Low |
Fiber Types: | Singlemode (SM) or Polarization Maintaining (PM) |
Operating Temperature Range: | +10 to +55 °C |
Storage Temperature Range: | -40 to +85 °C |
Features
- Optical power handling capability of >10W

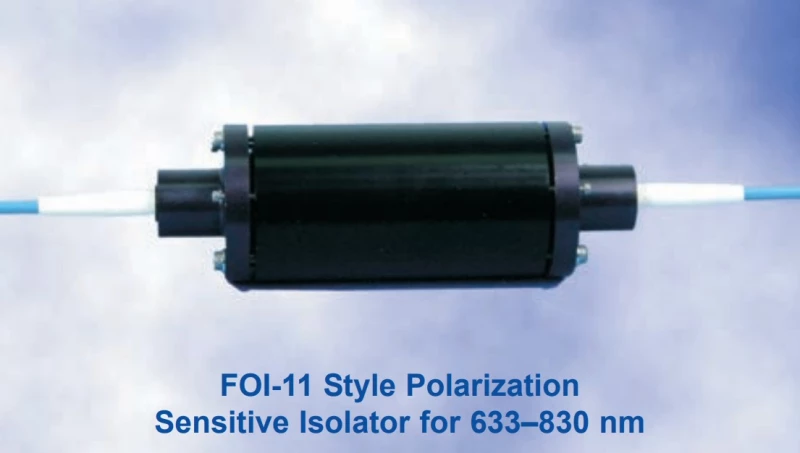

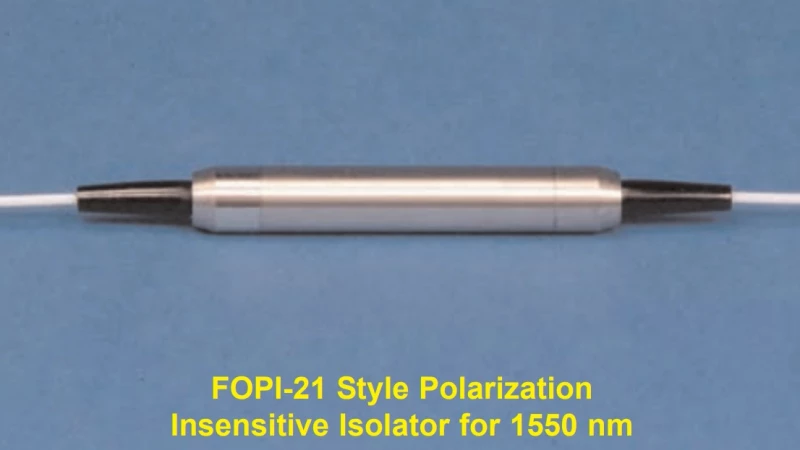

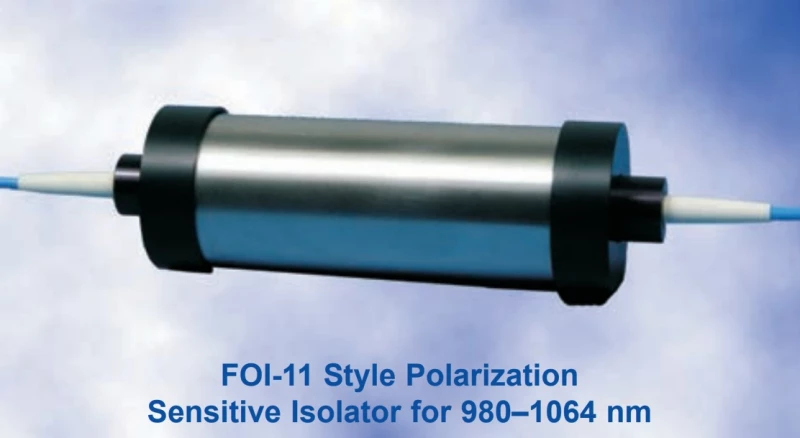

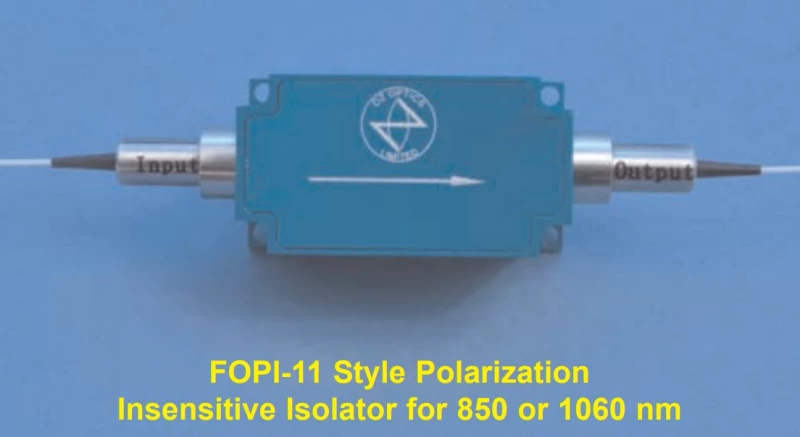

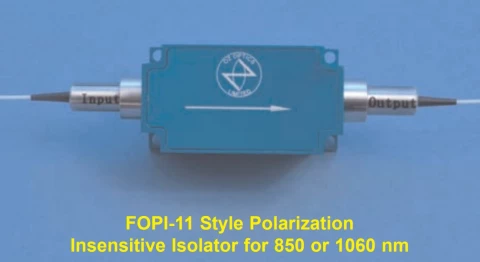

- Available in polarization sensitive and insensitive versions
- Wavelength range of 532–2000 nm
- High isolation levels and low return loss
- Low insertion loss and polarization-dependent losses
- Compact sizes, including miniature packaged versions
- Stable and highly reliable designs
Applications
- High power laser to fiber coupling systems
- Optical amplifiers
- CATV systems
Frequently Asked Questions
What are the features of the Fiber Optic Isolators?
The Fiber Optic Isolators have high isolation levels and low return loss, low insertion loss and polarization-dependent losses, compact sizes, including miniature packaged versions, and stable and highly reliable designs.
Are the Fiber Optic Isolators easy to install?
The installation process for the Fiber Optic Isolators is straightforward and simple. However, it is recommended that a qualified technician performs the installation to ensure proper functioning.
What wavelength range do the Fiber Optic Isolators cover?
The Fiber Optic Isolators are available in polarization sensitive and insensitive versions, covering a wavelength range of 532nm to 2000nm.
What are the applications of the Fiber Optic Isolators?
The Fiber Optic Isolators are suitable for high power laser to fiber coupling systems, optical amplifiers, and CATV systems.
What is the maximum optical power that the Fiber Optic Isolators can handle?
The Fiber Optic Isolators have an optical power handling capability of >10W.
