Description

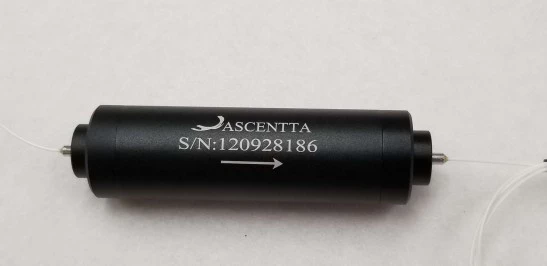

The MMVIS-850 Multimode Visible/IR Isolator by Ascentta, Inc. is a versatile optical isolator designed for multimode applications. It provides efficient isolation and protection for optical signals in the 850nm wavelength range.
Ascentta, Inc. offers a wide range of isolators, including single-mode, multimode, and polarization-maintaining (PM) isolators, tailored to various wavelength requirements. Customized isolators are also available to suit specific application needs.
Ascentta also provides multi-channel 850nm multimode isolator array, which takes advantage of one compact size to deliver the two channel performance.
Ascentta Multimode Fiber Isolator (850nm)
Specifications
| Type Of The Device: | Isolator |
|---|---|
| Operating Wavelength: | 850 nm |
| Max Power: | 1 W |
| Min Isolation: | 20 dB |
| Insertion Loss (ALL SOP): | 1.2 dB |
| Return Loss Min.: | 30 dB |
| Fiber Length: | 1.0 m |
| Operation Temperature: | +10 to +50 ℃ |
| Storage Temperature: | 0 to +60 °C |
| Manufacturer Part Number (MPN): | MMVIS-850-M5-L-10-FA-24x60 |
| FindLight SKU: | FL-18735 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Multimode optical isolator for 850nm wavelength range
- Provides efficient isolation and protection for optical signals
- Compatible with multimode fiber optic systems
- Visible/IR TGG type isolator for extended wavelength compatibility
- Free-space and polarization-dependent configurations available
- Mini-size and array variants for diverse installation requirements
Applications
- Multimode fiber optic networks
- Local area networks (LANs)
- Data centers and Datacom
- Industrial automation and control systems
- Test and measurement applications
- Research and development in fiber optics
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9027.90.8400 |
| Estimated US Tariff: | 0% |
Frequently Asked Questions
What is the wavelength range of the optical isolator?
What is the minimum isolation provided by the optical isolator?
What is the typical insertion loss for the optical isolator?
What is the maximum optical power handling capacity of the isolator?
What are the operating temperature conditions for the optical isolator?
How does adding connectors affect the specifications of the optical isolator?
What are the package dimensions available for the optical isolator?
