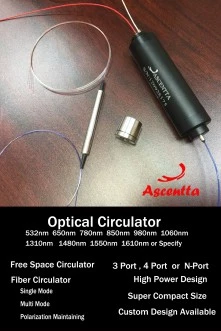

Thumbnail of Single-Mode 3-port Fiber Optical Circulator (1310nm | 1480nm | 1550nm | 1590nm) photo 1

Description

The Compact Fiber Optic Circulator by Ascentta, Inc. is a high-performance optical device designed to enable simultaneous transmission of signals between three ports. This compact circulator efficiently transfers the signal from port 1 to port 2 and from port 2 to port 3, making it an essential component in various optical systems.

With its reliable performance and compatibility with DWDM systems, fiber gratings, and reflective components, the Compact Fiber Optic Circulator is a versatile solution for demanding optical applications. Ascentta also offers multiport circulator modules for enhanced connectivity options.

Single-Mode 3-port Fiber Optical Circulator (1310nm | 1480nm | 1550nm | 1590nm)

Visit the Ascentta Store

Specifications

Type Of The Device: Circulator
Operating Wavelength: 1550 nm
Max Power: 0.3 W
Min Isolation: 40 dB
Insertion Loss (23℃, All SOP) (1→2, Or 2→3): 0.8 dB
Return Loss Min.: 55 dB
Directivity (1→3, Or 3→1) Min.: 55 dB
Fiber Length: 1-3 m
Operating Temperature: -5 to +70 ℃
Storage Temperature: -40 to +85 °C
Manufacturer Part Number (MPN): CIR-3-15-L-10-FA
FindLight SKU: FL-18263

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact and high-performance fiber optic circulator
  • Enables simultaneous transmission between three ports
  • Efficient signal transfer from port 1 to port 2 and port 2 to port 3
  • Suitable for use in DWDM systems, fiber gratings, and reflective components
  • Widely used in various optical applications
  • Multiport circulator modules available for enhanced connectivity

Applications

  • DWDM (Dense Wavelength Division Multiplexing) systems
  • Fiber optic communication networks
  • Optical signal routing and distribution
  • Fiber sensing and monitoring systems
  • Optical testing and measurement
  • Research and development in photonics and telecommunications
  • Industrial and manufacturing applications

Export & Trade Information

ECCN: EAR99
HTS Code: 9027.90.8400

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the function of the Single-Mode 3-Port Optical Circulator?
The Single-Mode 3-Port Optical Circulator is used to direct light from one port to another in a specific sequence, typically from port 1 to port 2 and then from port 2 to port 3.
What wavelengths are supported by the optical circulator?
The optical circulator supports wavelengths of 1310±30 nm, 1480±30 nm, 1550±30 nm, and 1590±30 nm.
What is the maximum optical power handling capacity of the circulator?
The maximum optical power handling capacity of the circulator is 300 mW.
What are the operating and storage temperature ranges for the circulator?
The operating temperature range is -5 to 70°C, and the storage temperature range is -40 to 85°C.
How does adding connectors affect the circulator's performance?
Adding connectors can affect the insertion loss (IL), return loss (RL), and polarization-dependent loss (PDL) of the circulator.
What is the typical insertion loss for the circulator?
The typical insertion loss for the circulator is 0.6 dB, with a maximum of 0.8 dB.
What are the available connector options for the circulator?
The available connector options include None, FC/APC, FC/PC, SC/APC, SC/PC, ST/PC, LC/APC, and LC/PC.

Got more questions? Use the inquiry form to ask the supplier directly.
