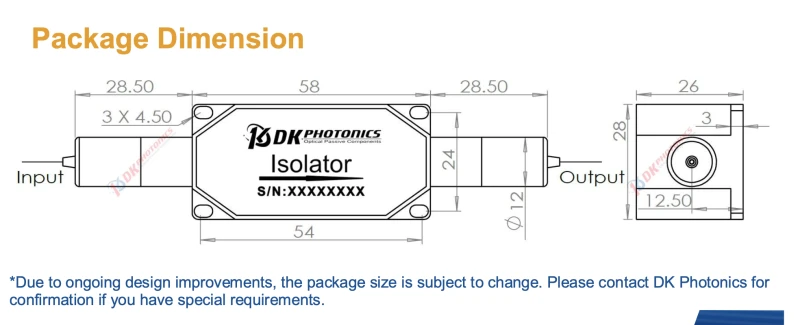

Thumbnail of 850nm High Power Polarization Independent Isolator photo 1

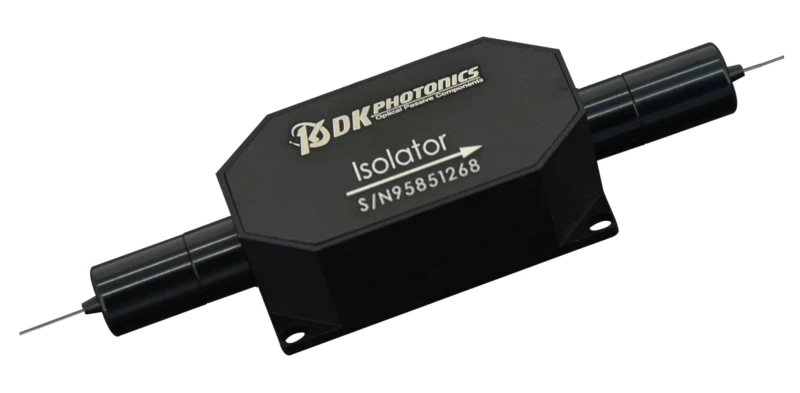

Thumbnail of 850nm High Power Polarization Independent Isolator photo 2

Description

980nm High Power In-line Optical Isolator – DK-XS-DT-006-A/2

The 980nm High Power In-line Optical Isolator from DK Photonics is engineered to deliver superior performance in demanding fiber optic systems. Designed for high power applications, this isolator ensures unidirectional light transmission, effectively protecting sensitive laser sources from back reflections and feedback that can compromise system stability and performance. Its robust construction and advanced optical design make it an essential component in high-power fiber laser and amplifier setups.

This isolator stands out for its exceptionally low insertion loss and high isolation, which are critical for maintaining signal integrity and maximizing system efficiency. The device is available in both polarization-maintaining (PM) and non-PM configurations, catering to a wide range of application needs. Customization options for fiber type, connector, and power handling (ranging from 5W up to 50W) ensure seamless integration into various optical architectures, whether for continuous wave (CW) or pulsed operations.

Built to withstand rigorous operational environments, the 980nm High Power In-line Optical Isolator offers excellent temperature stability and high reliability, making it suitable for use in laboratory research, industrial instrumentation, and advanced test and measurement systems. Its versatility is further enhanced by the availability of different package types, including in-line, beam expanded, and free-space variants, addressing the diverse requirements of modern photonics applications.

With a focus on quality and adaptability, DK Photonics’ isolator series is trusted by professionals in the fiber laser and amplifier industry worldwide. Whether you require a standard solution or a fully customized device tailored to your specific wavelength, fiber, or power handling needs, this isolator delivers consistent, high-performance optical isolation for even the most challenging environments.

850nm High Power Polarization Independent Isolator

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 850 nm
Max Power: 1 W
Min Isolation: 28 dB
Operating Wavelength Range: ±10 nm
Peak Isolation (typical): 32 dB
Insertion Loss (typical): 0.8 dB
Max Insertion Loss (max At 25°C): 1.2 dB
Polarization Dependent Loss (for SM Fiber): 0.15 dB
Extinction Ratio (PM Fiber): 18 dB (Type B), 20 dB (Type F)
Return Loss: 45 dB
Max Power Handling (CW): 10W, 20W, 30W
Max Peak Power (ns Pulse): 5 kW, 10 kW, 20 kW (for typical pulse application)
Max Tensile Load: 5 N
Operating Temperature: 0 to +70° °C
Storage Temperature: -40 to +85 °C
Fiber Type Options: 1060-XP, PM980-XP fiber
Fiber Diameter Options: 10/125 SC
Fiber Length Options: 0.8m, 1.0m (customizable)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Minimizes signal attenuation for optimal transmission efficiency.
  • High Power Handling: Supports continuous wave (CW) and pulsed operations with customizable power ratings (5W, 10W, 20W, 30W, 50W and more).
  • High Isolation: Effectively blocks back-reflected light to protect sensitive laser sources and maintain system stability.
  • PM and Non-PM Options: Available in both polarization-maintaining (PM) and standard (non-PM) fiber configurations to suit diverse application needs.
  • Customizable Fiber Types: Fiber type, pigtail length, and connector options can be tailored to your specific requirements.
  • Excellent Temperature Stability: Delivers reliable performance across a wide temperature range, ensuring consistent operation in demanding environments.
  • High Reliability and Durability: Engineered for long-term use in high-power fiber laser and amplifier systems.
  • Multiple Package Types: Available as in-line, beam expanded, fiber-in/free-space-out, and free-space isolators for flexible integration.
  • High Return Loss: Reduces back reflections, further protecting laser sources and improving overall system performance.
  • Custom Wavelengths and Power Handling: Supports a range of wavelengths (including 980nm) and can be engineered for specific power levels and operational needs.
  • Application Versatility: Ideal for high-power fiber lasers, fiber amplifiers, instrumentation, test and measurement setups, and fiber amplifier laboratory research.
  • Comprehensive Support for Custom Solutions: DK Photonics welcomes custom requests for non-standard specifications, fiber pigtails, and unique application requirements.

Applications

  • High Power Fiber Laser Systems
    Ensures stable, unidirectional light transmission in high power fiber laser setups, preventing back reflections that can damage laser sources and degrade performance.
  • High Power Fiber Amplifiers (EDFA, YDFA, TDFA)
    Protects sensitive amplifier components from harmful reflected light, enhancing amplifier reliability and efficiency.
  • Optical Instrumentation
    Used in precision optical instruments to maintain signal integrity and prevent feedback that can affect measurement accuracy.
  • Test and Measurement Systems
    Provides isolation in optical test benches and measurement setups, ensuring accurate and repeatable results by eliminating unwanted feedback.
  • Fiber Amplifier Laboratory Research
    Essential for research and development of advanced fiber amplifiers and laser systems, supporting both CW and pulsed operation.
  • Optical Communication Systems
    Prevents back reflections in high-speed optical networks, improving signal quality and reducing bit error rates.
  • Medical Laser Systems
    Protects laser sources in medical devices, such as surgical and diagnostic equipment, from destabilizing feedback.
  • Industrial Laser Processing
    Used in material processing applications (cutting, welding, engraving) to safeguard high power laser sources from reflected light.
  • Quantum Optics and Photonics Experiments
    Maintains coherence and stability in sensitive quantum optics setups by blocking unwanted optical feedback.
  • Free Space and Fiber Coupling Applications
    Facilitates efficient coupling between fiber and free-space optical paths, minimizing feedback and maximizing throughput.
  • Laser Spectroscopy
    Ensures accurate spectral measurements by isolating the laser source from reflected signals.
  • Optical Sensing Systems
    Enhances the performance of fiber optic sensors by preventing destabilizing reflections.
  • Custom High Power Photonics Solutions
    Suitable for custom-designed photonics systems requiring robust isolation at 980nm and high power handling.

Frequently Asked Questions

What is a 980nm High Power In-line Optical Isolator?
A 980nm High Power In-line Optical Isolator is an optical device designed to transmit light in one direction while blocking light in the reverse direction. This prevents unwanted feedback and reflected light from entering sensitive components like fiber lasers and amplifiers, ensuring stable and reliable operation.
What are the key features of the DK Photonics 980nm High Power Optical Isolator?
The DK Photonics 980nm High Power Optical Isolator offers low insertion loss, high isolation, high power handling (customizable up to 50W), excellent temperature stability, high reliability, and is available in both polarization-maintaining (PM) and non-PM versions. Custom fiber types and configurations are also available.
What applications are suitable for the 980nm High Power In-line Optical Isolator?
This isolator is ideal for high power fiber lasers, high power fiber amplifiers, instrumentation, test and measurement setups, and fiber amplifier laboratory research. Its high isolation and power handling make it suitable for demanding optical systems.
Can the DK Photonics 980nm isolator be customized for specific requirements?
Yes, DK Photonics offers customization for fiber type, power handling (5W, 10W, 20W, 30W, 50W), wavelength, and package configuration. Custom fiber pigtails and other specific needs can be addressed upon request.
What is the difference between PM and non-PM types of the 980nm optical isolator?
PM (Polarization-Maintaining) isolators maintain the polarization state of the transmitted light, which is critical for certain applications like coherent communications and high-precision measurements. Non-PM isolators do not preserve polarization and are suitable for general applications where polarization is not a concern.
How does the DK Photonics 980nm isolator handle high power levels?
The isolator is designed with advanced materials and construction to handle continuous wave (CW) or pulsed optical powers up to 50W (customizable). For higher power applications, fiber splicing is recommended instead of connectors to ensure optimal performance and safety.
How do I order or request a quote for a custom 980nm High Power Optical Isolator?
To order or request a quote, provide the correct part number (P/N) and specify your requirements such as fiber type, power handling, wavelength, and any special configurations. You can contact DK Photonics via their website, email (sales@dkphotonics.com), or phone for assistance.

Got more questions? Use the inquiry form to ask the supplier directly.
