Description
CSRAYZER's Polarization Maintaining Filter WDM PMFWDM Series Product, is based on thin-film filter technology with low insertion loss, low polarization dependence, high extinction ratio, high isolation and excellent environmental stability. Unique pigtail processing and high quality AR coating ensure high optical power. These components are widely used in EDFA, and fiber laser, fiber sensor, etc.

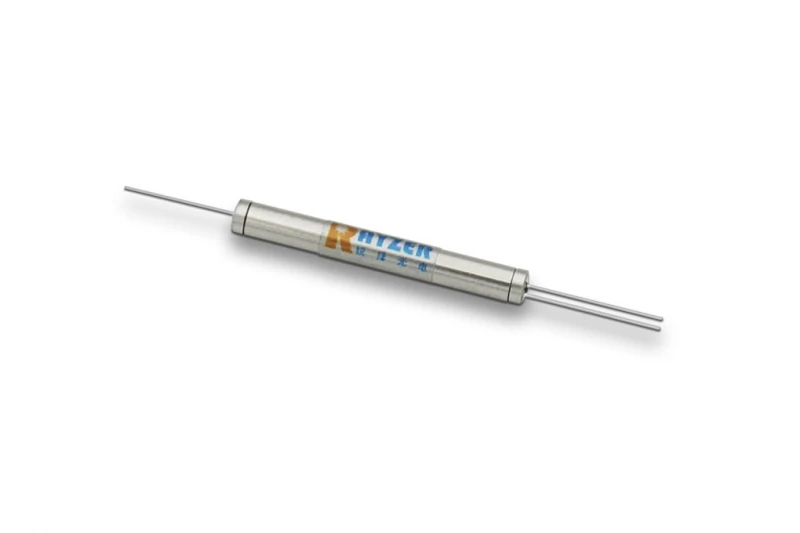

Polarization Maintaining WDM of 1030nm PMFWDM-1030/980-5.5x35-PM980-1-0-N-F
Specifications
| Operating Wavelength: | 1030 nm |
|---|---|
| Operating Bandwidth: | 1030 nm |
| Isolation (min): | 30 dB |
| Max Power Handling: | 0.5 W |
| Polarization Maintaining: | Yes |
| Structure: | 1*2 |
| Max. Polarization Dependent Loss: | 0.1 dB |
| Fiber Type: | PM980 |
| Extinction Ratio: | 20 |
Download Data Sheet
Features
- Low insertion loss
- Low polarization dependence
- High extinction ratio
- High isolation
- Excellent environmental stability
Applications
- EDFA
- Fiber laser
- Fiber sensor
Frequently Asked Questions
What is the model number of the product?
The model number is Polarization Maintaining WDM of 1030nm.
What are the center wavelengths for this WDM?
The center wavelengths are 1030 nm and 980 nm.
What is the maximum insertion loss for the passband at 23°C?
The maximum passband insertion loss at 23°C is ≤0.6 dB.
What is the operating temperature range for this device?
The operating temperature range is 0 to +75°C.
What type of fiber is used in this product?
The fiber type used is PM980.
What is the maximum average power the device can handle?
The maximum average power is ≤500 mW.
What is the package size of the product?
The package size is Ø5.5 x 35 mm (Steel Tube).
