635-1064 nm Wavelength Division Multiplexers
Description

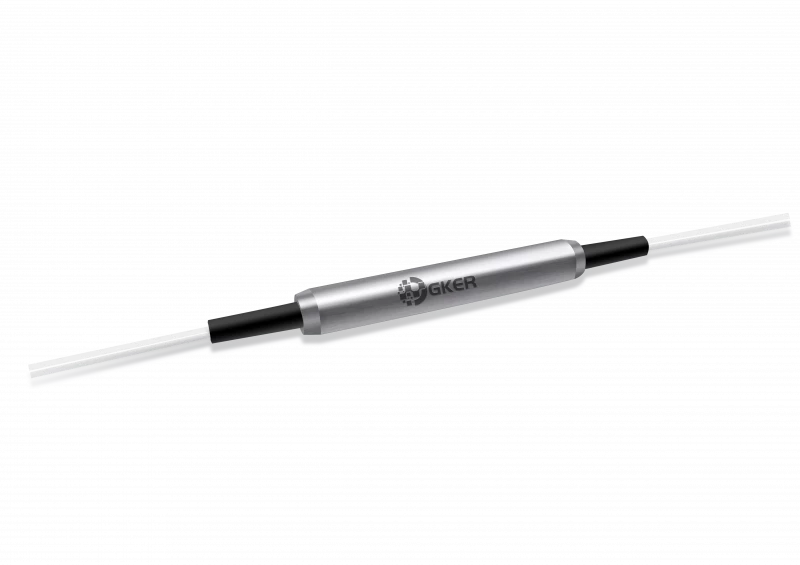

The GKER Photonics 635/1064 nm Wavelength Division Multiplexer (WDM) from the GK-WDM Series is a high-performance singlemode optical component designed to combine or separate light at 635 nm and 1064 nm. This WDM unit is engineered for use in a variety of advanced fiber optic systems, offering exceptionally low insertion loss, minimal polarization dependent loss (PDL), and high channel isolation. With a thermal stability of ≤0.002 dB/°C, it ensures consistent performance even in fluctuating environmental conditions.
Built using high-quality components and precision manufacturing, the multiplexer supports up to 5 W of continuous wave optical power and offers excellent return loss and directivity. It is available in multiple configurations, including 1×2 and 2×2, and supports fiber types such as Corning HI1060 and Nufern FUD-3584, with options for 250 µm bare fiber or 900 µm loose tube jackets.
Ideal for use in EDFA systems, CATV infrastructure, WDM networks, and fiber optic instrumentation, the GK-WDM Series is a reliable solution for applications demanding both wavelength specificity and environmental resilience.
635-1064 nm Wavelength Division Multiplexers
Specifications |
|
|---|---|
| Operating Wavelength: | 1064 nm |
| Operating Bandwidth: | Not Specified |
| Isolation (min): | 10 dB |
| Max Power Handling: | 5 W |
| Polarization Maintaining: | No |
| Longer Operating Wavelength: | 1064 ± 5 nm |
| Max. Insertion Loss: | 0.2 dB |
| Max. Polarization Dependent Loss: | 0.1 dB |
| Min. Isolation: | 20 dB |
| Shorter Operating Wavelength: | 635 ± 5 nm |
| Max. Insertion Loss: | 1.0 dB |
| Min. Isolation: | 10 dB |
| Thermal Stability: | ≤ 0.002 dB/℃ |
| Min. Return Loss: | 55 dB |
| Min. Directivity: | 55 dB |
| Max. Optical Power (Continuous Wave): | 5 W |
| Operating Temperature: | -40 to +75 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Dual Wavelength Operation: Combines or separates 635 nm and 1064 nm signals
- Low Insertion Loss: Down to 0.2 dB for 1064 nm and 1.0 dB for 635 nm
- High Isolation: Ensures minimal crosstalk with isolation up to 20 dB
- Minimal PDL: Polarization dependent loss as low as 0.1 dB
- High Return Loss: ≥55 dB, minimizing signal reflection
- Thermal Stability: ≤0.002 dB/°C for robust environmental performance
- High Optical Power Handling: Supports up to 5 W continuous wave power
Applications
- EDFA Systems: Efficient wavelength separation in fiber amplifiers
- CATV Networks: Signal routing and multiplexing in broadband systems
- WDM Optical Networks: Channel management in dense wavelength systems
- Fiber Optic Instrumentation: Precision testing and signal conditioning
- Medical Laser Systems: Combines visible and IR wavelengths for diagnostics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The primary function of this WDM multiplexer is to combine or separate optical signals at two specific wavelengths—635 nm (visible) and 1064 nm (infrared)—within a single optical fiber. This allows for more efficient use of fiber bandwidth and simplifies fiber optic system architectures by minimizing the number of required fibers.
The GK-WDM Series is designed to handle continuous wave optical power up to 5 watts, making it suitable for applications like medical laser systems, high-power sensing, and industrial laser delivery. Its robust construction and low insertion loss help maintain stable performance at elevated power levels.
This multiplexer features excellent thermal stability with a temperature coefficient of ≤0.002 dB/°C. It operates reliably over a wide temperature range from –40°C to +75°C and can be stored between –40°C to +85°C, making it ideal for harsh or outdoor environments.
The GK-WDM Series supports fiber types such as Corning HI1060 and Nufern FUD-3584. It is available with either 250 µm bare fiber or 900 µm loose tube jacket options and can be ordered with or without standard fiber connectors depending on your system requirements.
This device is widely used in optical communication systems, including EDFA amplification chains, CATV signal distribution, and WDM-based networks. It is also applicable in fiber optic instrumentation and medical laser delivery systems, where combining or separating light of different wavelengths is critical.
