Polarization Maintaining Bandpass Filter CWDM

Name: Polarization Maintaining Bandpass Filter CWDM
Brand: GKER Photonics
Availability: InStock

Description

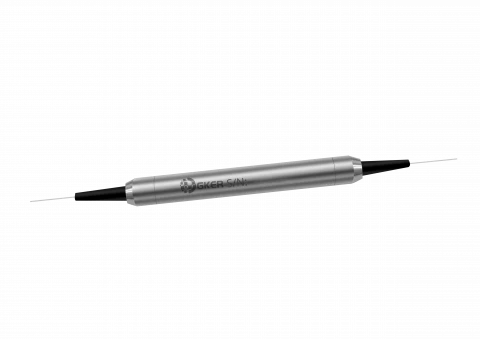

The GKER Photonics Polarization Maintaining Bandpass Filter CWDM (GK-PMBPCWDM Series) is a high-performance optical component designed to ensure superior signal integrity in complex optical communication systems. Leveraging environmentally stable thin-film filter technology, this device effectively blocks unwanted noise signals, making it ideal for use in Erbium-Doped Fiber Amplifiers (EDFAs) and fiber laser systems.

This bandpass filter is engineered to maintain the polarization of the optical signal, ensuring high isolation, low insertion loss, and a high extinction ratio. These features are crucial for applications requiring precise wavelength filtering, such as wavelength-division multiplexing (WDM) systems, where the filter allows specific wavelengths to pass while reflecting or attenuating others. The device is compatible with PM Panda Fiber, making it suitable for high-speed, high-power optical networks.

The GK-PMBPCWDM Series is built to withstand a wide range of environmental conditions, offering excellent stability in both operating and storage temperatures. Its robust construction supports high optical power handling, up to 300 mW continuous wave, and provides reliable performance across multiple wavelength ranges, including 1470 nm to 1610 nm. This makes it a versatile solution for advanced optical systems that demand high precision and durability.

Specifications

Operating Wavelength:	1470 nm
Operating Bandwidth:	Not Specified
Isolation (min):	30 dB
Max Power Handling:	300 W
Polarization Maintaining:	Yes
Center Wavelength:	1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 nm
Passband:	CWL ± 6.5 nm
Max. Insertion Loss:	0.6 dB
Typ. Insertion Loss:	0.4 dB
Min. Isolation @ Wavelength 1450 - CWL-14 & CWL+14 - 1630:	30 dB
Min. Return Loss:	50 dB
Min. Extinction Ratio:	20 dB
Thermal Stability:	≤ 0.005 dB/℃
Thermal Wavelength Drift:	≤ 0.003 nm/℃
Max. Optical Power (Continuous Wave):	300 mW
Max. Tensile Load:	5 N
Fiber Type:	PM Panda Fiber -
Operating Temperature:	- 5 to + 70 ℃
Storage Temperature:	- 40 to + 85 ℃

Download Data Sheet

Features

Polarization Maintaining Design: Ensures signal integrity by maintaining the polarization state of the light

High Isolation: Provides effective noise suppression with a minimum isolation of 50 dB

Low Insertion Loss: Delivers efficient signal transmission with a typical insertion loss of 0.4 dB

High Extinction Ratio: Achieves superior signal clarity with a minimum extinction ratio of 20 dB

Excellent Environmental Stability: Operates reliably in a wide temperature range, from -5°C to +70°C

High Power Handling: Supports up to 300 mW of continuous optical power, suitable for high-power applications

Versatile Wavelength Options: Available in multiple center wavelengths, ranging from 1470 nm to 1610 nm

Applications

WDM Systems: Ideal for precise wavelength selection and signal routing in wavelength-division multiplexing systems

Fiber Laser Systems: Enhances performance by filtering out unwanted noise and improving signal clarity

EDFA Modules: Improves the performance of Erbium-Doped Fiber Amplifiers by blocking unwanted signals and maintaining signal polarization
