1528 -1565nm Bandpass Filter

Name: 1528 -1565nm Bandpass Filter
Brand: GKER Photonics
Availability: InStock

Description

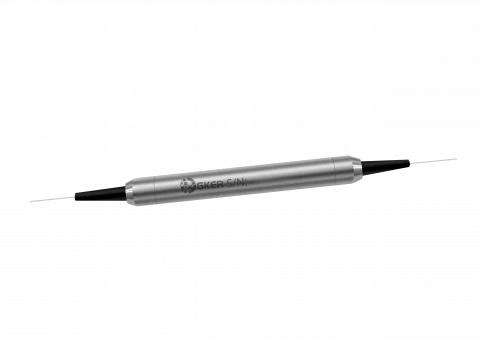

The GKER Photonics Bandpass Filter (GK-BP Series) is a high-performance micro-optics device designed to selectively transmit a specific range of wavelengths while blocking unwanted signals. Utilizing advanced thin-film filter technology, this bandpass filter offers superior environmental stability and is particularly effective in applications like Erbium-Doped Fiber Amplifiers (EDFAs) and fiber laser systems, where precision and reliability are paramount.

With a wavelength range of 1528 to 1565 nm, the GK-BP Series is engineered to deliver exceptional performance with a typical insertion loss of just 0.5 dB and maximum insertion loss of 0.7 dB. The filter ensures minimal signal distortion with its low polarization-dependent loss (PDL) of 0.05 dB, making it ideal for high-fidelity optical communication systems. Its high isolation (minimum 12 dB for wavelengths below 1521 nm and above 1574 nm) effectively eliminates noise, enhancing signal clarity.

Designed for robustness, the Bandpass Filter can operate in harsh environments with an operating temperature range of -40°C to +105°C and storage temperature range of -40°C to +85°C. The device also boasts a high power handling capability of up to 300 mW and is compatible with standard SMF-28 fiber.

Whether used in DWDM systems, optical sensors, or compact optical circuits, the GK-BP Series Bandpass Filter provides unparalleled reliability and performance, making it a crucial component in cutting-edge fiber optic communication systems.

Specifications

Operating Wavelength:	1528 nm
Operating Bandwidth:	Not Specified
Isolation (min):	12 dB
Max Power Handling:	300 W
Polarization Maintaining:	No
Wavelength Range:	1528 - 1565 nm
Max. Insertion Loss:	0.7 dB
Typ. Insertion Loss:	0.5 dB
Min. Isolation @ Wavelength ＜ 1521 Nm And ＞ 1574 Nm:	12 dB
Min. Return Loss:	50 dB
Max. Polarization Dependent Loss:	0.1 dB
Typ. Polarization Dependent Loss:	0.05 dB
Thermal Stability:	≤ 0.005 dB/℃
Thermal Wavelength Drift:	≤ 0.003 nm/℃
Max. Optical Power (Continuous Wave):	300 mW
Max. Tensile Load:	5 N
Fiber Type:	SMF-28 Fiber -
Operating Temperature:	-40to +105 ℃
Storage Temperature:	- 40 to + 85 ℃

Download Data Sheet

Features

High Isolation: Provides a minimum isolation of 12 dB for enhanced signal clarity

Low Insertion Loss: Delivers efficient signal transmission with a typical insertion loss of 0.5 dB

Low Polarization Dependent Loss: Ensures minimal signal distortion with a PDL as low as 0.05 dB

High Thermal Stability: Operates with a thermal wavelength drift of ≤ 0.003 nm/°C for consistent performance

Robust Optical Power Handling: Capable of handling up to 300 mW of continuous wave optical power

Environmental Stability: Operates reliably within -40°C to +105°C and stores safely from -40°C to +85°C

Applications

Noise Filtering in EDFAs: Effectively blocks unwanted noise signals, ensuring cleaner amplification

Wavelength Selection in Fiber Lasers: Provides precise wavelength selection for optimal laser performance

DWDM Systems: Enhances signal integrity in dense wavelength division multiplexing systems

Optical Sensors: Improves sensor accuracy by filtering out extraneous wavelengths

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

GKER Photonics

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the operating wavelength range of the Bandpass Filter?

The operating wavelength range is 1528 - 1565 nm.

What is the typical insertion loss of the GK-BP Series Bandpass Filter?

The typical insertion loss is 0.5 dB.

What is the maximum optical power handling capacity of the filter?

The filter can handle up to 300 mW of continuous wave optical power.

How does the Bandpass Filter ensure environmental stability?

The filter is designed with thin-film filter technology and can operate reliably in temperatures ranging from -40°C to +105°C.

What is the minimum isolation provided by the Bandpass Filter?

The filter provides a minimum isolation of 12 dB for wavelengths outside the 1528 - 1565 nm range.

What is the polarization dependent loss (PDL) of the filter?

The maximum PDL is 0.1 dB, and the typical PDL is 0.05 dB.

What type of fiber is compatible with the GK-BP Series Bandpass Filter?

The filter is compatible with SMF-28 fiber.

What are the package dimensions of the Bandpass Filter?

The filter comes in a compact design with package dimensions of Φ 5.5 ± 0.1 mm, length of 35 ± 1 mm, and width of 55 ± 1 mm.

What is the return loss for the Bandpass Filter?

The minimum return loss is 50 dB, ensuring minimal signal reflection.

How does the thermal stability of the Bandpass Filter impact its performance?

The filter has excellent thermal stability, with a thermal wavelength drift of ≤ 0.003 nm/°C and thermal stability of ≤ 0.005 dB/°C, ensuring consistent performance.
