Description
The 25G 1270 nm DFB 1330 nm PD LC BIDI BOSA optical module is a cutting-edge solution designed for high-speed data transmission in industrial temperature environments. This module features a multi-quantum-well structured DFB laser diode and a PIN-TIA receiver, integrated with a WDM filter to ensure efficient bi-directional operation. With a data rate of 25Gbps, it is engineered to perform reliably across a wide temperature range from -40℃ to 85℃, making it suitable for various demanding applications.
Constructed with an LC receptacle, this optical module is designed for seamless integration and ease of use. It includes an optical isolator to enhance performance and is compliant with Telcordia GR-468 and ROHS standards, ensuring high quality and environmental safety. The module's robust design and advanced technology make it an ideal choice for industries requiring high-speed data communication solutions.
Attention to detail in the design and manufacturing process ensures that the module is protected against electro-static damage, which is crucial for maintaining its longevity and performance. Operators are advised to use anti-static measures during handling and installation to prevent any potential damage. The module is packaged with anti-static materials for safe transportation, and it is recommended to maintain a controlled humidity environment during operation to further safeguard against static electricity.

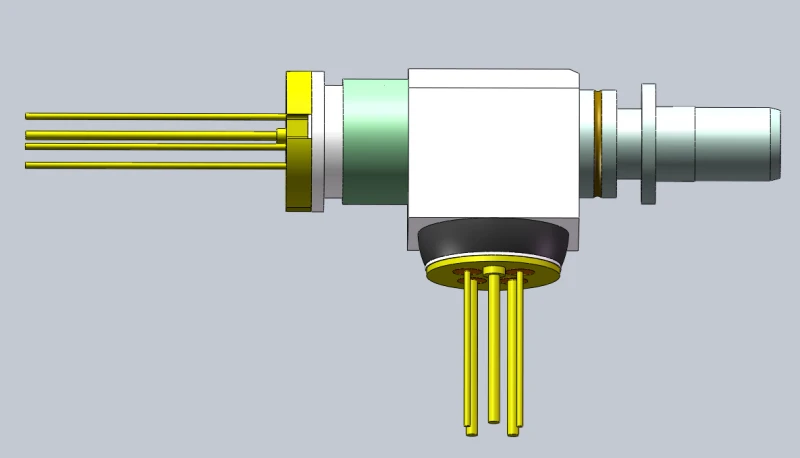

25G 1270 nm DFB 1330 nm PD LC BIDI BOSA
Specifications
| Optical Sub-Assembly (BOSA) Type: | BiDi (bi-directional) BOSA, High-Speed BOSA |
|---|---|
| Threshold Current (typical): | 8 mA |
| Peak Wavelength (typical): | 1271 nm |
| Side Mode Suppression Ratio: | 35 dB |
| Spectral Width: | 1 nm |
| Receiver Sensitivity: | -11.5 dBm |
| Receiver Responsivity: | 0.65 A/W |
| Tacking Error: | -1.5 to 1.5 dB |
| Return Loss: | 12 dB |
| Saturation Power: | 2.5 dBm |
| Supply Current: | 25 to 34 mA |
| Supply Voltage: | 3 to 3.6 V |
| Peak Wavelength: | 1271 to 1277.5 nm |
| Storage Temperature: | -40 to 85 ℃ |
| Dark Current: | 100 nA |
| Monitor Current (PD): | 0.043 to 1 mA |
| Output Optical Power: | 0.35 to 0.7 mW |
| Threshold Current: | 8 to 12 mA |
| Lead Soldering Temperature (10 Sec): | 260 ℃ |
| Laser Forward Current (T=25℃): | 100 mA |
| Reverse Voltage (Laser Diode): | 2 V |
| Operating Temperature: | -40 to 85 ℃ |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- LC Receptacle Bi-directional Operation: Ensures efficient data transmission in both directions.
- Integrated WDM Filter: Combines multiple signals on different wavelengths for improved performance.
- Un-cooled Operation from -40℃ to 85℃: Reliable performance across a wide temperature range.
- Data Rate for 25Gbps: High-speed data transfer capability.
- Includes Optical Isolator: Reduces interference and enhances signal integrity.
- Compliance with Telcordia GR-468 and ROHS: Meets industry standards for reliability and environmental safety.
Applications
High-speed data transmission in industrial temperature environments
Frequently Asked Questions
What is the operating temperature range for the 25G 1270nm DFB 1330nm PD LC BIDI BOSA module?
What is the data rate supported by this optical module?
Does the module comply with any standards?
What precautions should be taken to prevent electro-static damage to the module?
What is the peak wavelength of the transmitter?
What is the sensitivity of the receiver?
What is the maximum laser forward current at 25℃?
