Description
25G PON OLT BOSA (EML1358/25G1286APD)
The 25G PON OLT BOSA (EML1358/25G1286APD) is a cutting-edge single-fiber optical sub-assembly engineered for high-speed transmission applications. This advanced component integrates a 25Gb/s 1358nm Electro-absorption Modulated Laser (EML) with a 25Gb/s 1286nm Receiver featuring an Avalanche Photodiode (APD) and Transimpedance Amplifier (TIA).
The integration of optical filters ensures precise beam direction, making it a vital component for modern optical networks. Designed to operate efficiently within a temperature range of -5 to 75°C, this optical sub-assembly is equipped with an SC/UPC connector, ensuring compatibility and ease of installation. The product adheres to ROHS requirements, underscoring its commitment to environmental standards. Its robust design and high-performance capabilities make it an ideal choice for demanding network environments where reliability and speed are paramount.
The 25G PON OLT BOSA is meticulously crafted to meet the 25G-PON MSA standards, ensuring seamless integration into existing network infrastructures. Its sophisticated design and high sensitivity make it a preferred choice for network operators looking to enhance their optical transmission capabilities. With its advanced features and reliable performance, this optical sub-assembly is poised to support the next generation of high-speed data transmission.

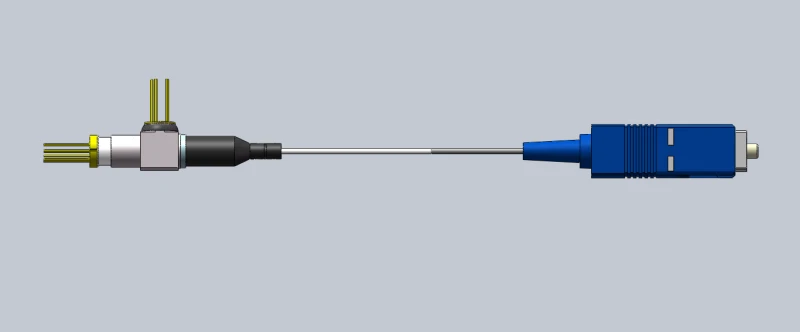

25G PON OLT Optical Sub-Assembly with EML and APD-TIA
Specifications
| Optical Sub-Assembly (BOSA) Type: | PON OLT BOSA |
|---|---|
| Threshold Current (typical): | 40 mA |
| Peak Wavelength (typical): | 1358 nm |
| Side Mode Suppression Ratio: | 35 dB |
| Spectral Width: | 0.4 nm |
| Receiver Sensitivity: | -26 dBm |
| Receiver Responsivity: | 5 A/W |
| Resistance Value At 25℃: | 9.9k to 10.1k Ω |
| Optical Crosstalk: | -35 dB |
| Optical Isolate: | -35 dB |
| Dark Current: | 100 nA |
| Operating Voltage: | Vbr*0.9 |
| Breakdown Voltage: | 20 to 40 V |
| Supply Current: | 25 to 40 mA |
| Supply Voltage: | 2.99 to 3.63 V |
| Receiver Wavelength: | 1284 to 1288 nm |
| Nominal Bitrate (Receiver): | 25 Gb/s |
| Tracking Error: | -1.5 to 1.5 dB |
| Thermoelectric Cooler Voltage: | 2.5 V |
| Thermoelectric Cooler Current: | 0.9 A |
| Thermoelectric Cooler Power: | 1.3 W |
| Laser Diode Reverse Voltage: | 2 V |
| Optical Return Loss: | 15 dB |
| Center Wavelength (Transmitter): | 1356 to 1360 nm |
| Forward Voltage: | 2 V |
| Optical Power: | 5 mW |
| Threshold Current: | 40 mA |
| Nominal Bitrate (Transmitter): | 25 Gb/s |
| Storage Temperature: | -40 to 85 ℃ |
| Operate Temperature: | -5 to 80 ℃ |
| TEC Current: | 0.9 A |
| TEC Voltage: | 2.7 V |
| Modulator Reverse Voltage: | -3 V |
| SOA Reverse Voltage: | 2 V |
| SOA Forward Current: | 80 mA |
| Laser Diode Forward Current: | 100 mA |
Download Data Sheet
Features
- High-Speed Transmission: Designed for high-speed transmission applications with a single-fiber optical sub-assembly.
- Integrated Components: Features a 25Gb/s 1358nm EML and a 25Gb/s 1286nm Receiver with APD and TIA.
- Temperature Range: Operates efficiently within a temperature range of -5 to 75℃.
- Connector Type: Equipped with an SC/UPC connector for reliable connections.
- ROHS Compliant: Meets all ROHS requirements for environmental safety.
- Application Compatibility: Fully compatible with 25G-PON MSA standards.
- Laser Diode: Features a 1358 EMA electric absorption modulated laser for enhanced performance.
- High Sensitivity: Includes a high sensitivity APD-TIA for improved signal reception.
- Mechanical Design: Customizable fiber length with SC/UPC connector.
- Electrostatic Protection: Modules are packed with antistatic material to prevent electro-static damage.
Applications
- High-Speed Transmission Applications: This single-fiber optical sub-assembly is designed for high-speed data transmission, making it ideal for modern communication networks.
- 25G-PON MSA Compliance: Meets the 25G-PON Multi-Source Agreement (MSA) standards, ensuring compatibility with industry requirements.
- Telecommunications: Suitable for use in telecommunications infrastructure, providing reliable and efficient data transfer.
- Data Centers: Can be integrated into data center environments to support high-speed data processing and storage solutions.
- Optical Networking: Ideal for optical networking applications, offering high sensitivity and performance with its integrated APD-TIA and EML components.
- Temperature Range: Operates effectively within a wide temperature range of -5 to 75℃, making it versatile for various environmental conditions.
- ROHS Compliance: Complies with ROHS requirements, ensuring environmentally friendly and safe usage.
Frequently Asked Questions
What is the 25GPONOLT (EML1358/25G1286APD) BOSA used for?
What are the key features of this product?
What is the operating temperature range for this product?
What precautions should be taken when handling this product?
What is the nominal bitrate for both the transmitter and receiver?
What is the center wavelength for the transmitter and receiver?
What type of connector does this product use?
