Optran®UV
Description
ArmadilloSia® high quality Optran UV and Optran WF fiber exhibits exceptional performance and transmission from the deep UV to the IR. With impressive radiation resistance and broad temperature capability, Optran UV and Optran WF are ideal for applications including spectroscopy, Thomson scattering, and medical diagnostics. We offer a choice of several jacket types and sizes - as well as custom-designed products and sizes to meet your specifications. For example, our new Optran WF with a hard polymer buffer features Cleave N Connect™ technology to eliminate messy silicone stripping. Optran WF with a hard polymer buffer is available with NA 0,37, 0.48, 0.52, and 0.57
Optran®UV
Specifications |
|
|---|---|
| Mode Field Diameter (MFD): | N/A um |
| Wavelength Range: | 190-1200nm |
| Cable Length: | N/A m |
| Fiber Core Material: | Silica |
Features
- Pure synthetic, fused silica glass core
- High resistance against laser damage
- Step-index profile

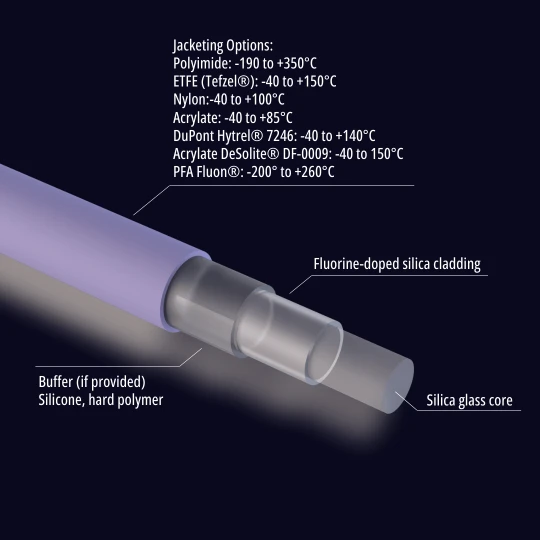

- Special jackets available for high temperatures, high vacuum and harsh chemicals Very low NA expansion
- Biocompatible material
- Sterilisable using ETO and other methods
Applications
First choice for applications including spectroscopy, medical diagnostics, medical technology, laser delivery systems and many more.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Latvia
-
Sold by:
-
On FindLight:
External Vendor
Claim Armadillo Sia Page to edit and add data
Frequently Asked Questions
Optran WF with a hard polymer buffer is available with NA 0,37, 0.48, 0.52, and 0.57.
Optran UV and Optran WF fiber are used for applications including spectroscopy, Thomson scattering, and medical diagnostics.
The minimum bending radius is 50 × cladding diameter (short-term mechanical stress) and 150 × core diameter (during use with high laser power).
The numerical aperture (NA) for Optran UV is 0,12 ± 0,02 or customised and for Optran WF is standard 0,22 ± 0,02.
The wavelength range for Optran UV is 190 – 1200 nm and for Optran WF is 300 – 2400 nm.
