Optran®PUV/PWF
Description

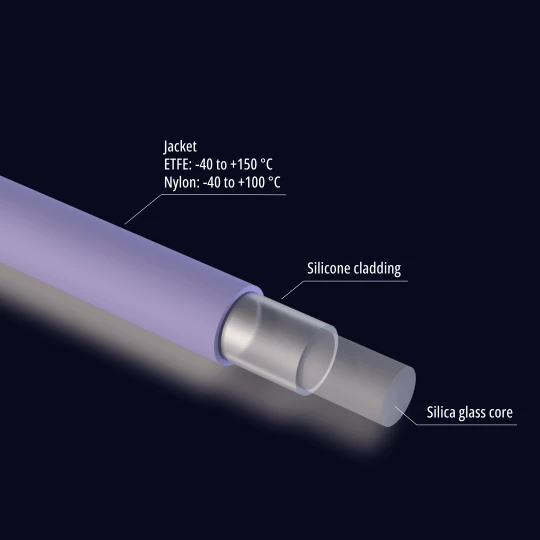

ArmadilloSia® plastic-clad silica fibers feature high transmission values for UV through NIR wavelengths and are ideal for applications from remote illumination and spectroscopy to high power laser delivery. With better UV and IR transmission than hard clad silica fibers, Optran PUV and PWF fibers are fully bio-compatible, radiation resistant, and a cost effective alternative to all silica fiber. We offer a choice of several jacket types and sizes – as well as custom-designed products and sizes to meet your specifications.
Optran®PUV/PWF
Specifications |
|
|---|---|
| Mode Field Diameter (MFD): | N/A um |
| Wavelength Range: | 350-2200nm |
| Cable Length: | N/A m |
| Fiber Core Material: | Silica |
Features
- Cost-effective (compared to silica / silica fibers)
- High concentricity
- Step-index profile
- Biocompatible material
- Sterilisable using ETO and other methods
Applications
- First choice for applications from remote illumination to spectroscopy and many more.
- Your advantages
- Over 500 Optran®UV and Optran®WF fibers in stock Non-standard diameters and NA values available
- Option of fully customised fiber production
- A complete solution for all your performance needs
- ISO 9001 compliant manufacturing environment
- CE mark
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Latvia
-
Sold by:
-
On FindLight:
External Vendor
Claim Armadillo Sia Page to edit and add data
Frequently Asked Questions
ArmadilloSia® plastic-clad silica fibers are fibers that feature high transmission values for UV through NIR wavelengths and are ideal for applications from remote illumination and spectroscopy to high power laser delivery.
The advantages of Optran PUV and PWF fibers include being cost-effective (compared to silica/silica fibers), having high concentricity, a step-index profile, biocompatible material, and being sterilisable using ETO and other methods.
The advantages of using ArmadilloSia® plastic-clad silica fibers include low-attenuation transmission from UV to NIR wavelengths, being a cost-effective alternative to pure silica fibers, and suiting a wide range of applications from remote illumination to spectroscopy.
Optran PUV and PWF fibers are the first choice for applications from remote illumination to spectroscopy and many more.
The operating temperature of Optran PUV and PWF fibers is -40 to +150 °C.
