Description
Germanate glass core fiber GDF-MM-8/125-98 is used for a variety of nonlinear applications.
GERMANATE GLASS CORE FIBERS GDF-MM-8-125-98
Specifications
| Mode Field Diameter (MFD): | 8 um |
|---|---|
| Wavelength Range: | 550 – 2800 nm |
| Cable Length: | Not Specified |
| Fiber Core Material: | Not Specified |
| Core Diameter, µm: | 8 x 7 (elliptical) |
| Clad Diameter, µm: | 125 |
| Delta N: | 0.14 |
| GeO2 Concentration, %: | 98 |
| Cutoff Wavelength, µm : | ~ 0.7 |

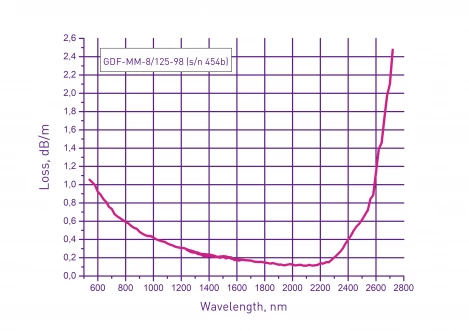

| Attenuation (at 1550nm), DB/km: | 200 |
| Attenuation (at 2100nm), DB/km: | 110 |
| Attenuation (at 2300nm), DB/km: | 200 |
| Splicing Loss With Ordinary Fiber, DB: | ~ 1 |
Download Data Sheet
Features
Highly Non-Linear
Frequently Asked Questions
What is the purpose of the Germanate glass core fiber GDF-MM-8/125-98?
The Germanate glass core fiber GDF-MM-8/125-98 is used for a variety of nonlinear applications.
What are the features of the Germanate glass core fiber GDF-MM-8/125-98?
The Germanate glass core fiber GDF-MM-8/125-98 is highly nonlinear.
What are the specifications of the Germanate glass core fiber GDF-MM-8/125-98?
The specifications of the Germanate glass core fiber GDF-MM-8/125-98 include a core diameter of 8 x 7 (elliptical) µm, a clad diameter of 125 µm, a coating diameter of 250 µm, a Delta n of 0.14, a GeO2 concentration of 98%, a cutoff wavelength of ~0.7 µm, an attenuation of 200 dB/km at 1550nm, 110 dB/km at 2100nm, and 200 dB/km at 2300nm.
What is the splicing loss of the Germanate glass core fiber GDF-MM-8/125-98 with ordinary fiber?
The splicing loss of the Germanate glass core fiber GDF-MM-8/125-98 with ordinary fiber is approximately 1 dB.
Is the Germanate glass core fiber GDF-MM-8/125-98 suitable for high nonlinear applications?
Yes, the Germanate glass core fiber GDF-MM-8/125-98 is suitable for high nonlinear applications.
