Attenuating Optical Fiber - ATN-FBL - Get a price quote from Coractive

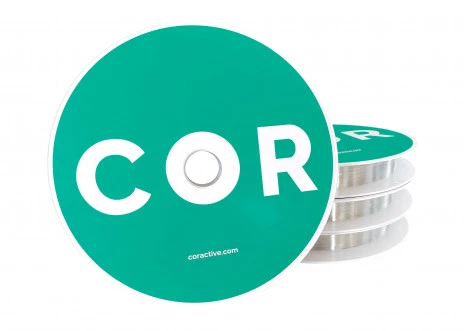

Name: Attenuating Optical Fiber - ATN-FBL
Brand: Coractive
Availability: InStock

Description

Coractive’s attenuation optical fiber (ATN) products have been specifically designed to provide flat attenuation. Wideband uniform attenuation ensures full compatibility with current and future DWDM, CATV and other telecom systems. The ATN-FBL has a wide attenuation range (<0.4 dB/cm) for manufacturing patchcord-type attenuators used in telecommunications.

Specifications

Mode Field Diameter (MFD):	9 um
Wavelength Range:	1295 – 1565 nm
Cable Length:	Not Specified
Fiber Core Material:	Not Specified
Attenuation Range (dB/cm):	0.005 - 0.4

Download Data Sheet

Features

Industry-standard fiber geometry – provides high-precision core alignment for more efficient fiber coupling

Precise cladding diameter control – perfect ferrule fit reducing manufacturing costs & increasing production yield

Tight attenuation tolerance – enables compatibility with DWDM network applications

Guaranteed attenuation in 1310 nm and 1550 nm wavelength ranges

Exceptional batch-to-batch uniformity – ensures a consistent and high-quality attenuator

Wide attenuation range: from 0.005 to 0.4 dB/cm

Applications

Patchcord-type attenuators

Telecom (DWDM, CATV)

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

Coractive

On FindLight:

since 2022

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the purpose of the ATN-FBL attenuating optical fiber?

The ATN-FBL attenuating optical fiber is specifically designed to provide flat attenuation and is used in telecommunications for manufacturing patchcord-type attenuators.

What are the features of the ATN-FBL attenuating optical fiber?

The ATN-FBL attenuating optical fiber features industry-standard fiber geometry for efficient fiber coupling, precise cladding diameter control for reduced manufacturing costs, tight attenuation tolerance for compatibility with DWDM network applications, guaranteed attenuation in 1310 nm and 1550 nm wavelength ranges, exceptional batch-to-batch uniformity, and a wide attenuation range from 0.005 to 0.4 dB/cm.

What applications is the ATN-FBL attenuating optical fiber suitable for?

The ATN-FBL attenuating optical fiber is suitable for patchcord-type attenuators and is commonly used in telecom systems such as DWDM and CATV.

What is the attenuation range of the ATN-FBL attenuating optical fiber?

The attenuation range of the ATN-FBL attenuating optical fiber is from 0.005 to 0.4 dB/cm.

What are the environmental specifications of the ATN-FBL attenuating optical fiber?

The ATN-FBL attenuating optical fiber can operate in temperatures ranging from 0 to 70 degrees Celsius and storage temperatures ranging from -40 to 85 degrees Celsius. It has an operating humidity range of 5 to 85% and a storage humidity range of 5 to 85%.
