Description
The featured Singlemode (SM 9/125) metal coated fiber operates at 1310 nm and 1550 nm wavelength, according to G.652 A/B standards. The fiber is supplied with either 24 kt Gold or Aluminum coatings As an electric conductor, these types of coatings provide the user with the ability to terminate the fiber directly to the coating, supporting hermetically sealed assemblies. Gold and Aluminum coated fibers are most capable of withstanding high temperatures and harsh environments compared to polymer coated fibers. A dedicated manufacturing process of these fibers result in low stress corrosion susceptibility, and thus offering an improved mechanical protection to the optical fiber when used in the most challenging harsh environments.
All metal coated Singlemode fibers are 100 % quality tested to stringent test procedures according to TIA/EIA and international FOTP guidelines. Custom specific tests to verify application requirements are available. Heracle is proud distributor of metallized optical fiber manufactured by Waveguide Technologies, Inc. New Jersey, USA.

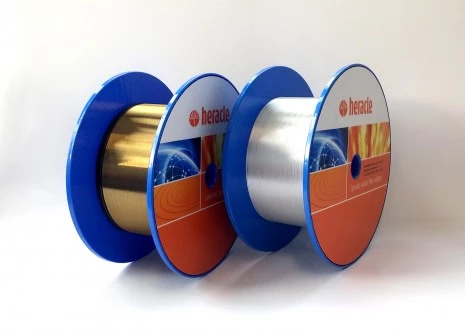

Metal Coated Single Mode Fiber: Gold and Aluminum
Specifications
Mode Field Diameter (MFD): | 9.2 um |
---|---|
Wavelength Range: | 1310 – 1550 nm |
Cable Length: | 100 m |
Fiber Core Material: | Silica |
Core Diameter: | 9 µm ± 2 % |
Cladding Diameter: | 125 µm ± 2 % |
Coating Diameter (Gold): | 155 µm ± 10 % |
Coating Diameter (Aluminum): | 175 µm ± 10 % |
Numerical Aperture (All Silica): | up to 0.35 |
Numerical Aperture (Hard Clad): | up to 0.52 |
Wavelength Operating Range: | 1310 nm and 1550 nm |
Features
- Wide operating temperature range from cryogenic up to 400°C (Aluminum) or 700°C (Gold)
- Hermetic & sterilizable
- Directly solderable for vacuum feedthroughs & laser diode pigtailing
- Radiation resistant
- Low outgassing
- Resistant to organic solvents
Applications
Metal coated Singlemode optical fibers are typically used under extreme conditions such as:
- Aircraft, missile, rocket, turbine & jet engine monitoring
- Radiation, caustic & corrosive environments
- Material fatigue sensing applications
- High power laser delivery systems
- Ultra high vacuum applications
- Semiconductor manufacturing
Frequently Asked Questions
Are custom specific tests available for metal coated single mode fibers?
What are the applications of metal coated single mode fibers?
What are the coatings available for the metal coated single mode fiber?
What is the temperature range that the metal coated single mode fiber can withstand?
What is the wavelength range of the metal coated single mode fiber?
