Description
Coractive’s attenuation optical fiber (ATN) products have been specifically designed to provide flat attenuation. Wideband uniform attenuation ensures full compatibility with current and future DWDM, CATV and other telecom systems. The ATN-FB has a wide attenuation range (<15 dB/cm) for manufacturing in-line fixed attenuators used in telecommunications.

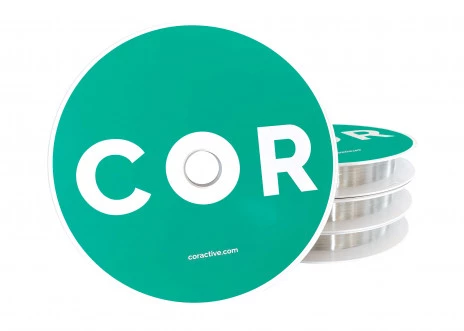

Attenuating Optical Fiber - ATN-FB
Specifications
| Mode Field Diameter (MFD): | 9 um |
|---|---|
| Wavelength Range: | 1295 – 1565 nm |
| Cable Length: | Not Specified |
| Fiber Core Material: | Not Specified |
| Attenuation Range (dB/cm): | 0.4-15 |
Download Data Sheet
Features
- Industry-standard fiber geometry – provides high-precision core alignment for more efficient fiber coupling
- Precise cladding diameter control – perfect ferrule fit reducing manufacturing costs & increasing production yield
- Tight attenuation tolerance – enables compatibility with DWDM network applications
- Guaranteed attenuation in 1310 nm and 1550 nm wavelength ranges
- Exceptional batch-to-batch uniformity – ensures a consistent and high-quality attenuator
- Wide attenuation range: from 0.4 to 15 dB/cm
Applications
- In-line fixed attenuators
- Telecom (DWDM, CATV)
Frequently Asked Questions
What is the purpose of the Attenuating Optical Fiber (ATN-FB)?
The ATN-FB is used for manufacturing in-line fixed attenuators in telecommunications systems.
What are the features of the ATN-FB?
The ATN-FB features industry-standard fiber geometry, precise cladding diameter control, tight attenuation tolerance, guaranteed attenuation in specific wavelength ranges, exceptional batch-to-batch uniformity, and a wide attenuation range.
What applications is the ATN-FB suitable for?
The ATN-FB is suitable for in-line fixed attenuators in telecom systems such as DWDM and CATV.
What is the attenuation range of the ATN-FB?
The ATN-FB has a wide attenuation range from 0.4 to 15 dB/cm.
Are there any certifications or compliances associated with the ATN-FB?
Yes, the ATN-FB is ISO 9001:2015 certified for quality, and it is RoHS and REACH compliant.
