PHOSPHORUS DOPED FIBERS PDF-5/125
Description
Phosphorus doped fiber PDF-5/125 series is specially designed for highly efficient Raman lasers and amplifiers operating in the 1.1-1.6 µm spectral range.
PHOSPHORUS DOPED FIBERS PDF-5/125
Specifications |
|
|---|---|
| Mode Field Diameter (MFD): | 5 um |
| Wavelength Range: | 1056-1672nm |
| Cable Length: | 100 m |
| Fiber Core Material: | Not Specified |
| Raman Gain @ 1480 Nm, DB/kmW: | > 5.0 |

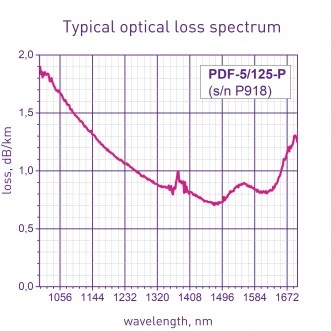

| Optical Loss (1064 Nm), DB/km: | < 2.0 |
| Optical Loss (1240 Nm), DB/km: | < 1.2 |
| Optical Loss (1480 Nm), DB/km: | < 1.0 |
| PM Version: | yes |
Features
The main advantage of phosphorus-doped fiber is a three times higher value of the Raman shift as compared to germanium-doped fibers. This feature allows one to strongly simplify the Raman fiber laser and amplifier design. For example, to construct a high-power laser @ 1480nm required for pumping Er-doped fibers, only two cascades of Raman wavelength transformation are necessary, whereas six cascades are necessary in the case of Ge-doped fibers.
PDF-5/125PM series is specially designed with ability to maintain polarization.
Applications
Highly efficient Raman lasers and amplifiers operating in the 1.1-1.6 µm spectral range
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Russia
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The PDF-5/125 series is designed for highly efficient Raman lasers and amplifiers operating in the 1.1-1.6 µm spectral range.
The cutoff wavelength for the PDF-5/125 series is 0.9 ± 0.2 µm.
The main advantage of phosphorus-doped fiber is a three times higher value of the Raman shift as compared to germanium-doped fibers.
The PDF-5/125PM series is specially designed with the ability to maintain polarization.
The Raman gain at 1480 nm for the PDF-5/125 series is greater than 5.0 dB/km·W.
