Description
ARTICLE HNLF (s/n Ge304): HNLF series is designed to maximize fiber nonlinearity and minimize optical loss, which makes such fibers optimal for constructing highly efficient Raman lasers and amplifiers, dispersion compensators and various non-linear devices.
ARTICLE HNLF DS (s/n Ge137): HNLF DS series is designed for applications requiring a shift of the zero dispersion wavelength to the 1550 nm spectral region: supercontinuum generation, parametric conversion and etc.
HIGH NON-LINEAR FIBERS HNLF
Specifications
Mode Field Diameter (MFD): | 4 um |
---|---|
Wavelength Range: | 1050 – 2300 nm |
Cable Length: | Not Specified |
Fiber Core Material: | Not Specified |

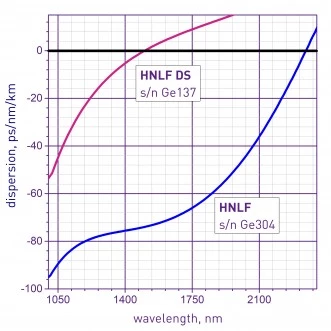

Dispersion @ 1550nm, Ps/nm/km : | < - 50 |
Optical Loss (1550 Nm), DB/km : | < 5 |
ZDW,nm: | > 2300 |
Frequently Asked Questions
Are there other parameters available for the HNLF fibers upon request?
Yes, other parameters including core NA greater than 0.6 (pure GeO2 core) are available upon request.
What are the core diameter and cutoff wavelength specifications for the HNLF and HNLF DS fibers?
The core diameter for HNLF is 3 ± 1 µm, and for HNLF DS it is 4.5 ± 1 µm. The cutoff wavelength for HNLF is 1 ± 0.3 µm, and for HNLF DS it is 1.5 ± 0.5 µm.
What is the HNLF DS series designed for?
The HNLF DS series is designed for applications requiring a shift of the zero dispersion wavelength to the 1550 nm spectral region, such as supercontinuum generation and parametric conversion.
What is the HNLF series designed for?
The HNLF series is designed to maximize fiber nonlinearity and minimize optical loss, making it optimal for constructing highly efficient Raman lasers and amplifiers, dispersion compensators, and various non-linear devices.

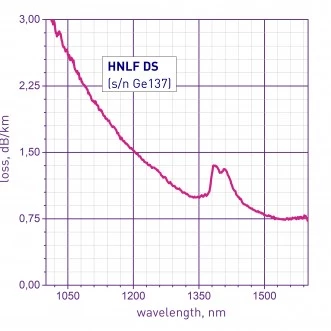

What is the optical loss at 1550 nm for the HNLF and HNLF DS fibers?
The optical loss at 1550 nm for HNLF is less than 5 dB/km, and for HNLF DS it is not specified.
