Description
Germinate glass core fiber GDF-SM-2.2/125-75 series is higly Ge-doped silica fibers used for variety of nonlinear applications.
GERMANATE GLASS CORE FIBERS GDF-SM-2.2-125-75
Specifications
| Mode Field Diameter (MFD): | 22 um |
|---|---|
| Wavelength Range: | 1000 – 2300 nm |
| Cable Length: | Not Specified |
| Fiber Core Material: | Not Specified |
| Core Diameter, µm: | 2.2 |
| Clad Diameter, µm: | 125 |
| Delta N: | 0.11 |
| GeO2 Concentration, %: | 75 |
| Cutoff Wavelength, µm : | 1.4 |

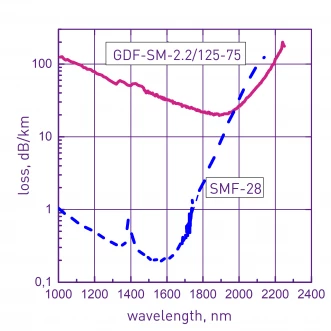

| Minimum Loss (at ~1850-1700 Nm), DB/km: | ~ 20 |
Download Data Sheet
Features
HIGH NON-LINEAR
