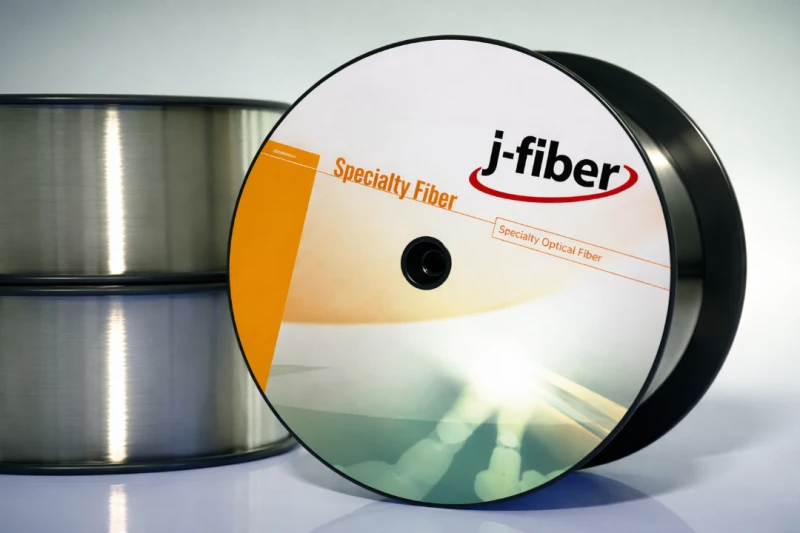

High-temperature Acrylate Coated Bend-insensitive Singlemode Fiber
Introducing our advanced high-temperature acrylate coated bend-insensitive singlemode fiber, designed to deliver exceptional performance in demanding environments. This innovative fiber is engineered with precision to ensure minimal signal loss and superior durability, making it an ideal choice for applications requiring reliable and efficient data transmission. The fiber's unique construction allows it to maintain its integrity even under challenging conditions, providing a robust solution for modern communication needs.
The core of this fiber is crafted from Ge-doped fused silica, ensuring optimal light transmission and minimal attenuation. The cladding, with a diameter of 125 µm ± 2 µm, is meticulously aligned with the core to minimize concentricity errors, enhancing the fiber's overall performance. The high-temperature acrylate coating provides an additional layer of protection, allowing the fiber to withstand temperatures ranging from -60°C to +150°C, making it suitable for a wide range of industrial applications.
Our bend-insensitive singlemode fiber is designed to meet the rigorous standards of the industry, offering low macrobend loss and high mechanical strength. It undergoes a thorough proof-test to ensure it can withstand stress levels of at least 100 kpsi, guaranteeing its reliability and longevity. With a delivery length of over 100 meters, this fiber is ready to meet the demands of extensive installations, providing a seamless and efficient solution for your connectivity needs.
This product is currently classified as a C-sample, indicating that it is fully functional and meets all specified requirements. It is poised for transition to serial production, with quality requirements fulfilled statistically. Any design changes will be communicated and approved by customers, ensuring transparency and satisfaction.
High-Temperature Acrylate Coated Bend-Insensitive Singlemode Fiber
Specifications
| Mode Field Diameter (MFD): | 8.6 um |
|---|---|
| Wavelength Range: | 1310 – 1550 nm |
| Fiber Core Material: | Ge-Doped Fused Silica |
| Numerical Aperture (typical): | 0.12 |
| Delivery Length: | > 100 m |
| Operating Temperature: | -60°C to +150°C |
| Proof-test: | ≥ 100 kpsi |
| Macrobend Loss @ 1625 Nm, 1 Turn, 7.5 Mm Radius: | ≤ 1.0 dB |
| Macrobend Loss @ 1625 Nm, 1 Turn, 10 Mm Radius: | ≤ 0.2 dB |
| Macrobend Loss @ 1625 Nm, 10 Turns, 15 Mm Radius: | ≤ 0.1 dB |
| Macrobend Loss @ 1550 Nm, 1 Turn, 7.5 Mm Radius: | ≤ 0.5 dB |
| Macrobend Loss @ 1550 Nm, 1 Turn, 10 Mm Radius: | ≤ 0.1 dB |
| Macrobend Loss @ 1550 Nm, 10 Turns, 15 Mm Radius: | ≤ 0.03 dB |
| Cladding Diameter: | 125 µm ± 2 µm |
| Attenuation @ 1550 Nm: | ≤ 0.3 dB/km |
| Attenuation @ 1310 Nm: | ≤ 0.4 dB/km |
| Cut-off Wavelength (uncabled): | ≤ 1330 nm |
| Mode Field Diameter @ 1550 Nm: | 9.6 µm ± 0.5 µm |
| Mode Field Diameter @ 1310 Nm: | 8.6 µm ± 0.4 µm |
| Clad/Coating Concentricity Error: | ≤ 6 µm |
| Coating Diameter: | 242 µm ± 7 µm |
| Cladding Non-circularity: | ≤ 1 % |
| Core/Clad Concentricity Error: | < 0.8 µm |
Download Data Sheet
Features
- High-Temperature Acrylate Coated Bend-Insensitive Singlemode Fiber
- Geometrical Features:
- Core Material: Ge-doped fused silica
- Cladding Diameter: 125 µm ± 2 µm
- Core/Clad Concentricity Error: < 0.8 µm
- Cladding Non-circularity: ≤ 1%
- Coating Diameter: 242 µm ± 7 µm
- Clad/Coating Concentricity Error: ≤ 6 µm
- Coating Material: High-temperature Acrylate
- Optical Properties:
- Mode Field Diameter @ 1310 nm: 8.6 µm ± 0.4 µm
- Mode Field Diameter @ 1550 nm: 9.6 µm ± 0.5 µm
- Cut-off Wavelength (uncabled): ≤ 1330 nm
- Attenuation @ 1310 nm: ≤ 0.4 dB/km
- Attenuation @ 1550 nm: ≤ 0.3 dB/km
- Numerical Aperture (typical): 0.12
- Macrobend Loss @ 1550 nm:
- 10 turns, 15 mm radius: ≤ 0.03 dB
- 1 turn, 10 mm radius: ≤ 0.1 dB
- 1 turn, 7.5 mm radius: ≤ 0.5 dB
- Macrobend Loss @ 1625 nm:
- 10 turns, 15 mm radius: ≤ 0.1 dB
- 1 turn, 10 mm radius: ≤ 0.2 dB
- 1 turn, 7.5 mm radius: ≤ 1.0 dB
Applications
- Telecommunications: Ideal for high-speed data transmission in telecommunications networks due to its low attenuation and bend-insensitive properties.
- Data Centers: Suitable for use in data centers where space is limited and high-density cabling is required.
- Industrial Applications: Can be used in harsh environments due to its high-temperature acrylate coating, operating effectively between -60°C and +150°C.
- FTTx Networks: Perfect for fiber-to-the-home (FTTH) and other fiber-to-the-x (FTTx) applications, providing reliable performance in tight spaces.
- Military and Aerospace: Its robust mechanical properties and high proof-test level make it suitable for military and aerospace applications.
- Medical Equipment: Can be used in medical devices that require precise and reliable fiber optic components.
- Research and Development: As a C-sample product, it is suitable for R&D purposes where cutting-edge fiber technology is required.
Frequently Asked Questions
What is the core material of the fiber?
What is the operating temperature range for this fiber?
What are the attenuation specifications at 1310 nm and 1550 nm?
What is the coating material used for the fiber?
What is the proof-test level for the fiber?
What is the macrobend loss at 1550 nm for 10 turns with a 15 mm radius?
Is this product ready for serial production?
