Optran®NCF UV
Description

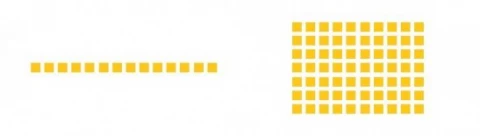

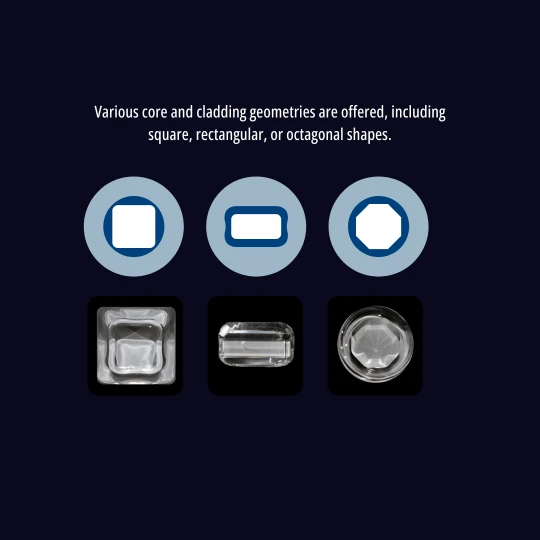

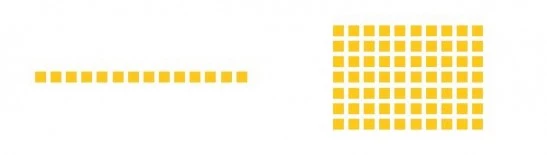

Fibers which deviate from the traditional round form with a square or rectangular shape offer advantages due to providing maximum packing density for input and output. These fibers are very suitable for connections to angular sources and receivers, such as diode lasers. The angular-shaped core provides consistent short-distance homogenization input power distribution. Our angular fibers are also available in rectangular shapes with large side ratios and a small corner radius, thanks to our special PCVD-technology.
Large NCF’s are ideal for applications, such as diode laser delivery systems, which require a combination of flexibility and large cross sections in silica fibers. To name an example, the geometry of a rectangular optical fiber with a ratio of 1:3 allows for rotation and movement on one axis. The cross section is but about four times larger than that of a round fiber (round fiber/diameter – rectangular fiber/page size).
Optran®NCF UV
Specifications |
|
|---|---|
| Mode Field Diameter (MFD): | N/A um |
| Wavelength Range: | 00-00nm |
| Cable Length: | N/A m |
| Fiber Core Material: | Silica |
Features
- Maximum packing density for input or output of bundle
- Suitable for diode laser coupling
- Homogeneous power distribution
- Wide range of available core and cladding sizes
- The same cross section ratio of the core provides higher flexibility
- compared to round fibers
- High resistance against laser damage
- No need for laser beam focusing optics
- Very low NA-expansion
- Excellent image scrambling characteristics
- Step-index profile
Applications
Excellent choice for applications that include diode laser coupling and many more.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Latvia
-
Sold by:
-
On FindLight:
External Vendor
Claim Armadillo Sia Page to edit and add data
Frequently Asked Questions
No, there is no need for laser beam focusing optics when using Optran®NCF UV.
Optran®NCF UV is an excellent choice for applications that include diode laser coupling and many more.
Non-circular fibers like Optran®NCF UV offer advantages due to providing maximum packing density for input and output. They are very suitable for connections to angular sources and receivers, such as diode lasers. The angular-shaped core provides consistent short-distance homogenization input power distribution.
The same cross-section ratio of the core provides higher flexibility compared to round fibers.
Optran®NCF UV has high resistance against laser damage.
