Description
At the heart of LEONI Fiber Optics' innovative solutions lies the core of glass fibers specifically designed for infrared (IR) applications. These fibers are crafted from pure fused silica glass, renowned for its low hydroxyl (OH) content and consistent refractive index across the entire diameter. This meticulous engineering ensures optimal performance within a broad wavelength range from 400 nm to 2400 nm, encompassing both visible (VIS) and infrared (IR) spectrums. The result is a versatile fiber that meets the demanding requirements of modern optical applications.
To protect and enhance the functionality of these multimode fibers, LEONI offers a variety of coating options. Depending on the specific application requirements, fibers can be coated with acrylate, silicone, or polyimide. Each coating type provides unique benefits, such as temperature resilience and flexibility, ensuring that the fibers maintain their integrity and performance under various environmental conditions. Whether for optical data transmission, sensor technology, or laser applications, these coatings play a crucial role in maintaining the fibers' reliability and efficiency.
LEONI's step-index multimode fibers are available in a range of core and cladding diameters, offering customization to suit specific needs. The fibers can be further enhanced with jackets made from Nylon® or Tefzel®, providing additional protection and color-coding options for easy identification and application-specific adjustments. This versatility allows for seamless integration into a wide array of industries, including spectroscopy, medical technology, and beyond. With a focus on precision and adaptability, LEONI Fiber Optics delivers solutions that empower innovation and elevate performance standards.
Tefzel Silicone-Jacket Coated Multimode Fiber – 84810179N
Specifications |
|
|---|---|
| Core Diameter: | 1500 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features

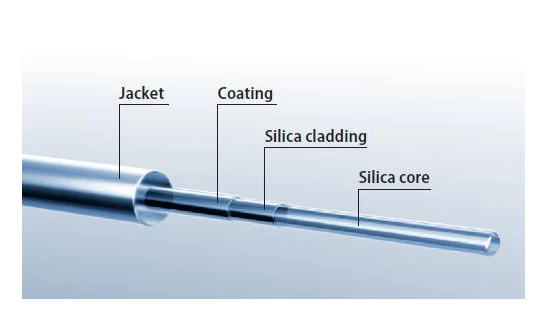

- Material Composition: The core of the glass fibers is made from pure fused silica glass with low OH content, ensuring a uniform refractive index across the entire diameter.
- Wavelength Range: Suitable for use in the VIS-IR range from 400 nm to 2400 nm.
- Coating Options: Available with single or dual acrylate, silicone, or polyimide coatings.
- Multimode Fiber Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Core and Cladding Diameter: Various core diameters ranging from 40 μm to 200 μm, with cladding diameters from 110 μm to 220 μm.
- Numerical Aperture: Standard numerical aperture of 0.22, with options for 0.1 to 0.4 on request.
- Jacket Options: Available with Nylon® or Tefzel® jackets in multiple colors including black, blue, transparent, yellow, red, and white.
- Bending Radius: Short-term bending radius is 100 times the clad radius, while the long-term bending radius is 600 times the clad radius.
- Special Coating: ORMOCER® coating available for continuous use at temperatures up to 200 °C.
- Product Codes: Each fiber variant is associated with a specific order number and fiber code for easy identification and ordering.
Applications
- Optical Data Transmission: The multimode fibers are ideal for transmitting data over optical networks.
- Sensor Technology: These fibers are used in various sensor applications due to their precision and reliability.
- Spectroscopy: Suitable for spectroscopy applications within the 400 nm to 2400 nm wavelength range.
- Medical Technology: Utilized in medical devices and procedures that require precise optical fibers.
- Laser Applications: The fibers are designed to handle laser applications, offering high performance and efficiency.
Frequently Asked Questions
The core material of the Tefzel Silicone-Jacket Coated Multimode Fiber is pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The Tefzel Silicone-Jacket Coated Multimode Fiber is used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The Tefzel Silicone-Jacket Coated Multimode Fiber is used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
The short-term bending radius for the Tefzel Silicone-Jacket Coated Multimode Fiber is 100 x clad radius.
The temperature range for the Tefzel Silicone-Jacket Coated Multimode Fiber is -40 °C to 150 °C.
