Description
The Leoni Fiber Optics glass fibers are engineered for infrared applications, offering a core of pure fused silica glass. This core is characterized by its low hydroxyl (OH) content and a uniform refractive index across the entire diameter, ensuring optimal performance. These fibers are designed to function effectively within a wide wavelength range from 400 nm to 2400 nm, encompassing both visible (VIS) and infrared (IR) spectrums. Such a broad range makes them versatile for various demanding applications.
Each fiber is protected by a specialized coating, which can be made from materials such as acrylate, silicone, or polyimide. These coatings not only enhance the durability of the fibers but also enable them to withstand different temperature ranges, making them suitable for a variety of environments. The multimode fibers are integral to numerous advanced technologies, including optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
Leoni's step-index multimode fibers are available in various core diameters, precisely calibrated to ensure consistency and reliability. The fibers are further customizable with different coating options and jackets, such as Nylon® and Tefzel®, which provide additional protection and flexibility. The jackets are available in multiple colors, offering both functional and aesthetic customization for specific project needs. With the capability to withstand both short-term and long-term bending, these fibers are designed for robust performance in dynamic conditions.
The integration of FiberTech® coatings, like ORMOCER®, extends the operational temperature range up to 200 °C, making these fibers suitable for continuous use in high-temperature environments. This adaptability, combined with the precision and quality inherent in each fiber, ensures that Leoni Fiber Optics glass fibers meet the rigorous demands of cutting-edge optical applications.
Tefzel Silicone-Jacket Coated Multimode Fiber – 84810178N
Specifications |
|
|---|---|
| Core Diameter: | 800 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Material Composition: Core of glass fibers made from pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
- Wavelength Range: Suitable for use in the 400 nm to 2400 nm (VIS-IR) range.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Fiber Types: Step-index multimode fibers available.
- Core and Clad Diameters: Core diameters range from 40 µm to 200 µm, with corresponding clad diameters.
- Coating Options: Available with single acrylate, dual acrylate, or polyimide coatings.
- Numerical Aperture: 0.22 (0.1 to 0.4 available on request).
- Jacket Color Options: Available in black, blue, transparent, yellow, red, and white.
- Bending Radius: Short-term: 100 x clad radius; Long-term: 600 x clad radius.
- Special Coatings: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: These fibers are used for transmitting optical data, taking advantage of their wide wavelength range from 400 nm to 2400 nm (VIS-IR).
- Sensor Technology: The fibers are ideal for use in various sensor technologies due to their precise and consistent light transmission capabilities.
- Spectroscopy: Their uniform refractive index and low OH content make them suitable for spectroscopy applications, providing accurate and reliable measurements.
- Medical Technology: The fibers' ability to operate across a wide temperature range and their biocompatible coatings make them suitable for medical applications.
- Laser Applications: These fibers can be used in laser systems, benefiting from their high numerical aperture and broad wavelength range.
Frequently Asked Questions

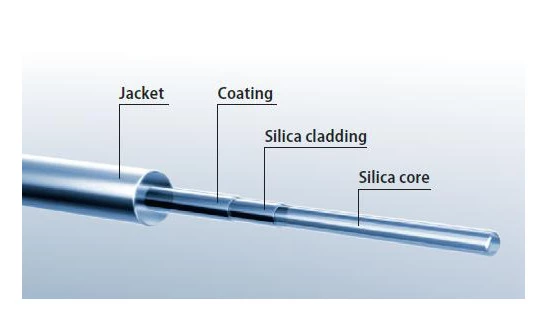

The core of the Tefzel Silicone-Jacket Coated Multimode Fiber consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The multimode fibers are used not only in optical data transmission, but also in sensor technology, spectroscopy, medical technology and laser applications.
The fibers are covered with a coating either consisting of acrylate, silicone or polyimide.
The temperature range for the fibers with coating and jacket is -40 °C to 150 °C.
The fibers can be used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
