Description

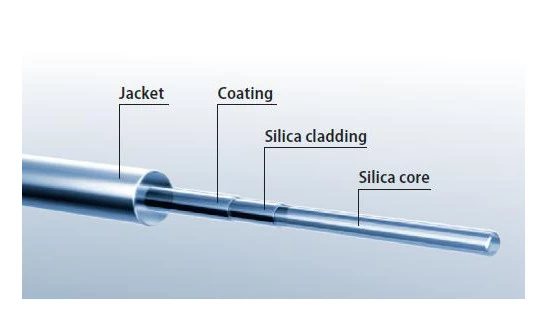

LEONI Fiber Optics offers an advanced range of glass fibers that are meticulously designed to excel in infrared (IR) applications. At the core of these fibers lies pure fused silica glass, renowned for its low OH content and uniform refractive index across the entire diameter. This ensures optimal performance in the wavelength range from 400 nm to 2400 nm, covering both visible (VIS) and infrared spectrums. The fibers are protected by a robust coating, which can be composed of acrylate, silicone, or polyimide, providing versatility and reliability in various demanding environments.
These step-index multimode fibers are crafted to deliver exceptional performance in a wide array of fields, including optical data transmission, sensor technology, spectroscopy, and medical technology. The precision-engineered core and cladding diameters, available in a variety of sizes, ensure that the fibers meet the specific needs of different applications. The coatings enhance the fibers' durability, allowing them to withstand a broad temperature range and maintain their integrity under challenging conditions.
LEONI's fibers are available with various coating options, each tailored to specific operational requirements. The single and dual acrylate coatings offer a numerical aperture of 0.22, with customizable options available upon request. For applications requiring higher temperature resistance, the polyimide coating supports a range from –190 °C to 385 °C. Additionally, fibers can be outfitted with protective jackets, available in multiple colors, providing further customization to suit the aesthetic and functional needs of any project.
With LEONI Fiber Optics, you are assured of cutting-edge technology and unparalleled quality, making them an ideal choice for those seeking reliable and high-performance fiber optic solutions.
Tefzel Silicone-Jacket Coated Multimode Fiber – 84810175N
Specifications |
|
|---|---|
| Core Diameter: | 400 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- High-Quality Glass Fibers: The core of the glass fibers is made from pure fused silica glass with low OH content, ensuring a uniform refractive index across the entire diameter.
- Wide Wavelength Range: Suitable for applications in the wavelength range from 400 nm to 2400 nm (VIS-IR).
- Versatile Coating Options: Fibers are available with coatings made of acrylate, silicone, or polyimide to fit various application needs.
- Multimode Fiber Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Step-Index Multimode: Available in various core and cladding diameters, supporting diverse application requirements.
- Customizable Numerical Aperture: Standard numerical aperture of 0.22, with options ranging from 0.1 to 0.4 upon request.
- Durable Jacket Options: Available with Nylon® or Tefzel® jackets, providing additional protection and color options.
- Bending Radius: Short-term bending radius is 100 times the clad radius, while long-term bending radius is 600 times the clad radius.
- Color Variety: Jacket colors include black, blue, transparent, yellow, red, and white, with fiber codes applying to black jackets by default.
- Special Coating: ORMOCER® coating available for continuous use at 200 °C, enhancing fiber durability.
Applications
- Optical Data Transmission: The multimode fibers are used for efficient optical data transmission across a wide range of wavelengths from 400 nm to 2400 nm (VIS-IR).
- Sensor Technology: These fibers are suitable for use in various sensor technologies due to their reliable performance and uniform refractive index.
- Spectroscopy: The fibers are ideal for spectroscopy applications, providing precise and consistent results.
- Medical Technology: Suitable for medical applications, these fibers offer high performance and reliability.
- Laser Applications: The fibers can be used in laser applications, providing robust and efficient transmission of laser light.
Frequently Asked Questions
The core of the glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The numerical aperture for fibers with dual acrylate coating is 0.22 (0.1 to 0.4 on request).
The temperature range for the fibers with single acrylate coating is -40°C to 85°C.
The temperature range for fibers with silicone jacket coating is -40°C to 150°C.
The short-term bending radius for the fibers is 100 x clad radius.
