Polyimide Coated Multimode Fiber – 84810191N
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

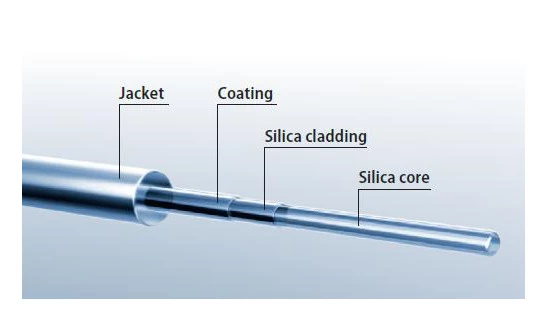

Experience the cutting-edge technology of LEONI Fiber Optics, where innovation meets precision in the realm of infrared glass fibers. At the heart of these fibers lies pure fused silica glass, renowned for its low OH content and uniform refractive index across the entire diameter. This meticulous construction ensures optimal performance across a wavelength range from 400 nm to 2400 nm, covering both visible and infrared spectrums. These fibers are expertly coated with materials such as acrylate, silicone, or polyimide, each tailored to enhance durability and functionality in diverse environments.
The step-index multimode fibers are a testament to versatility and reliability, making them indispensable in a multitude of fields. Whether it's optical data transmission, sensor technology, spectroscopy, medical technology, or laser applications, these fibers deliver unmatched performance. Each fiber is crafted with precision, offering a range of core diameters and coatings to meet specific requirements. The coatings not only protect the fibers but also extend their usability across varying temperature ranges, ensuring they perform consistently, even in challenging conditions.
For those seeking enhanced protection and versatility, fibers with additional jackets are available. These jackets, made from materials such as Nylon® and Tefzel®, provide an extra layer of defense against environmental factors, while also offering aesthetic options with multiple color choices. The combination of advanced materials and meticulous engineering results in a product that is both robust and adaptable, ready to meet the demands of any application. With a commitment to quality and innovation, LEONI Fiber Optics continues to set the standard in the field of optical fibers.
Polyimide Coated Multimode Fiber – 84810191N
Specifications |
|
|---|---|
| Core Diameter: | 40 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Material Composition: The core of the glass fibers is made from pure fused silica glass with low OH content, ensuring a uniform refractive index across the entire diameter.
- Wavelength Range: These fibers operate efficiently in a wavelength range from 400 nm to 2400 nm (VIS-IR).
- Numerical Aperture: Standard aperture of 0.22, with options from 0.1 to 0.4 available upon request.
- Fiber Diameters: Core diameters range from 40 μm to 200 μm, with corresponding cladding diameters and coating thicknesses.
- Bending Radius: Short-term bending radius is 100 times the clad radius, and long-term bending radius is 600 times the clad radius.
- Special Coatings: ORMOCER® coating is available for continuous use at temperatures up to 200 °C.
- Applications: These multimode fibers are ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
Applications
- Optical Data Transmission: The multimode fibers are ideal for transmitting optical data, ensuring reliable communication over a range of wavelengths from 400 nm to 2400 nm (VIS-IR).
- Sensor Technology: These fibers are employed in various sensor technologies, providing precise measurements and data collection.
- Spectroscopy: Used in spectroscopy applications to analyze materials and substances by measuring their interaction with light.
- Medical Technology: The fibers are utilized in medical devices and procedures, offering high precision and reliability in medical technology.
- Laser Applications: Suitable for laser applications, providing efficient transmission of laser light for various industrial and scientific purposes.
Frequently Asked Questions
The core of the glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The short-term bending radius is 100 x clad radius, while the long-term bending radius is not specified.
The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
The temperature range for the polyimide coating is -190°C to 385°C.
