Description
The core of LEONI's glass fibers for infrared (IR) applications is crafted from pure fused silica glass, ensuring a low hydroxyl (OH) content and a consistent refractive index across the entire diameter. These fibers are specifically designed to operate within a wavelength range of 400 nm to 2400 nm, covering both visible (VIS) and infrared (IR) spectrums. This makes them an ideal choice for a variety of applications that require precision and reliability.

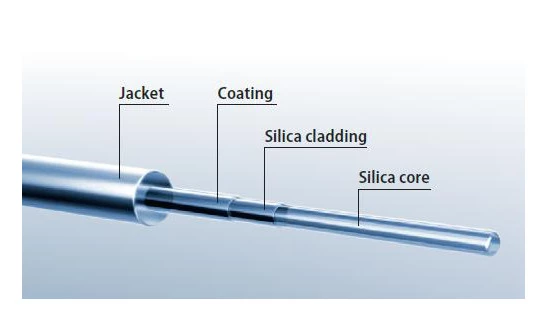

The fibers are covered with a protective coating, which can be made from acrylate, silicone, or polyimide, depending on the specific requirements of the application. These coatings provide essential protection and durability, allowing the fibers to perform optimally under different environmental conditions. The multimode fibers are integral to various industries, playing a crucial role in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
LEONI offers step-index multimode fibers with a range of core diameters from 40 μm to 200 μm, ensuring flexibility for diverse application needs. The fibers are available with different coatings and jackets, such as acrylate with a Nylon® jacket or silicone with a Tefzel® jacket, each offering unique advantages in terms of temperature resistance and mechanical protection. These design choices ensure that the fibers can withstand temperature ranges from as low as -190 °C to as high as 385 °C, catering to both standard and extreme operating environments.
For applications requiring additional protection, fibers with jackets are available in a variety of colors, including black, blue, transparent, yellow, red, and white. This color-coding can be particularly beneficial for organizational purposes or when integrating the fibers into existing systems. LEONI's commitment to quality and innovation is evident in their use of advanced materials and coatings, such as ORMOCER®, which is suitable for continuous use at temperatures up to 200 °C, further enhancing the versatility and reliability of these optical fibers.
Nylon Acrylate-Jacket Coated Multimode Fiber – 84810101N
Specifications |
|
|---|---|
| Core Diameter: | 40 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Material Composition: The core of the glass fibers is made from pure fused silica glass with low OH content, ensuring a uniform refractive index across the entire diameter.
- Wavelength Range: Suitable for use in the 400 nm to 2400 nm range (VIS-IR).
- Numerical Aperture: Standard numerical aperture of 0.22, with options from 0.1 to 0.4 available upon request.
- Bending Radius: Short-term bending radius is 100 times the clad radius, and long-term bending radius is 600 times the clad radius.
- Color Options: Fibers with jackets are available in different colors. Tefzel® jackets are available in black, blue, and transparent, while Nylon® jackets are available in black, blue, transparent, yellow, red, and white.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Fiber Technology: Includes FiberConnect®, FiberSwitch®, FiberSplit®, and FiberTech® technologies.
- Special Coating: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: Utilized for transmitting data over optical fibers, leveraging the wide wavelength range from 400 nm to 2400 nm.
- Sensor Technology: Used in various sensing applications due to its ability to operate across the VIS-IR spectrum.
- Spectroscopy: Suitable for spectroscopic applications, benefiting from the fiber's uniform refractive index and low OH content.
- Medical Technology: Applied in medical devices and technologies requiring precise and reliable optical fibers.
- Laser Applications: Used in laser systems due to its multimode capabilities and robust temperature range.
Frequently Asked Questions
The temperature range for the fibers with single acrylate coating is -40 °C to 85 °C, while for fibers with polyimide coating it is -190 °C to 385 °C.
The core of glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
The short-term bending radius is 100 x clad radius.
