Description

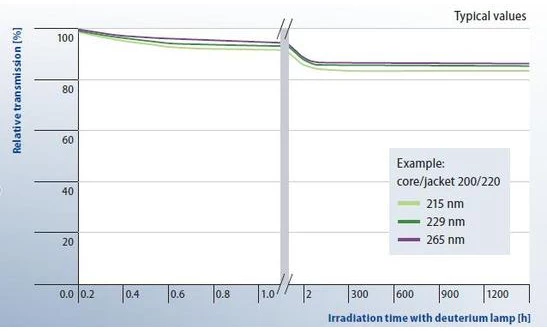

Experience the cutting-edge innovation of our solarization-stable fibers, designed to excel in the UV-VIS spectrum. These fibers are crafted with a high OH content, ensuring exceptional transmission capabilities in the critical 190–250 nm range. This makes them ideal for applications requiring high precision and reliability under challenging conditions. The use of a deuterium light source in our testing process guarantees that these fibers maintain their superior performance over time, even when exposed to prolonged UV irradiation.

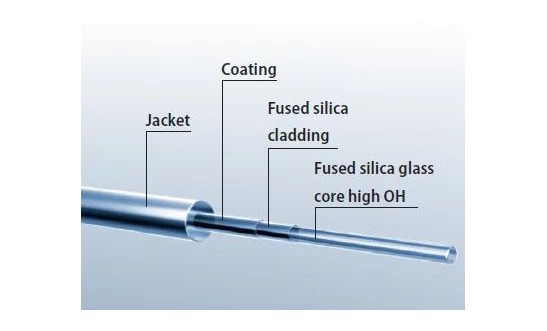

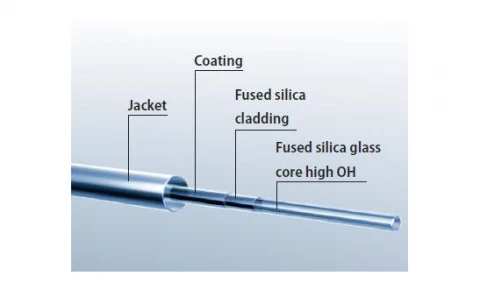

Our fibers feature a robust construction with a fused silica glass core and cladding, providing unmatched durability and stability. The core and cladding are complemented by a choice of single acrylate or polyimide coatings, each offering unique benefits tailored to specific needs. The single acrylate coating is designed for standard applications, while the polyimide coating offers enhanced resistance to environmental factors, making it suitable for more demanding environments.
For those requiring versatility, our fibers are available in various core and cladding diameters, ranging from 100 μm to 600 μm. This range allows for precise customization to meet the specific demands of your application. Additionally, our fibers can be configured into bundles with single-fiber cores starting from 30 μm, providing even more flexibility and adaptability. Optional coatings such as Nylon® or Tefzel® are also available to further enhance the performance and longevity of the fibers.
These ultrasol® fibers are engineered to withstand the progressive absorption that typically leads to fiber failure in UV-VIS applications below 240 nm. By choosing our solarization-stable fibers, you are investing in a product that not only meets but exceeds industry standards for performance and reliability. Explore the possibilities with our advanced optical fibers and elevate your projects to new heights of innovation and efficiency.
FiberTech Ultrasol Fibers - 84808017F
Specifications |
|
|---|---|
| Core Diameter: | 600 um |
| Wavelength Range: | 190 – 250 nm |
| Fiber Core Material: | Silica |
| Fiber Type: | Solar Stable |
| Fiber Length: | Custom |
Features
- High Transmission Efficiency: These fibers offer exceptional transmission in the 190–250 nm range, making them ideal for UV-VIS applications.
- Solarization-Stable: Designed to prevent progressive absorption and failure in critical UV-VIS applications below 240 nm, ensuring long-lasting performance.
- Fused Silica Glass Core: High OH content provides superior transmission capabilities, especially in the ultraviolet spectrum.
- Versatile Coating Options: Available with single acrylate or polyimide coatings, with optional Nylon® or Tefzel® coatings for enhanced durability.
- Customizable Specifications: Further specifications, including CCDR, are available to meet diverse application needs.
- Multiple Core/Cladding Sizes: Offered in sizes ranging from 100/110 μm to 600/660 μm, catering to a wide range of optical requirements.
- Order and Fiber Codes: Easily identifiable with specific order numbers and fiber codes for streamlined purchasing and inventory management.
- Available as Fiber Bundles: Solarization-stable fibers can also be configured as fiber bundles with single-fiber cores starting from 30 μm, providing flexibility for various applications.
Applications
- UV-VIS Spectroscopy: Stable transmission for precise analytical measurements
- UV Laser Delivery Systems: Reliable fiber for high-power UV laser transmission
- Medical Diagnostics: Supports UV-based imaging and treatment systems
- Environmental Monitoring: Durable fibers for continuous UV exposure applications
- Scientific Research: Ideal for laboratory experiments requiring stable UV guidance
- Industrial UV Systems: Suitable for UV curing, illumination, and inspection setups
- Multi-Point Illumination: Fiber bundles provide distributed UV light for complex systems
Frequently Asked Questions
The FiberTech Ultrasol Fibers are solarisation-stable and can be used for applications in the critical range of <240 nm, while UV-VIS fibers experience progressive absorption to the point of complete failure in this range.
The FiberTech Ultrasol Fibers have a single acrylate coating, and optionally available coatings include polyimide, Nylon®, or Tefzel®.
Yes, FiberTech Ultrasol Fibers are available as fiber bundles with a single-fiber core from 30 μm.
The FiberTech Ultrasol Fibers have a very good transmission in the 190-250 nm range.
The core diameter of the FiberTech Ultrasol Fibers is 100 μm.
