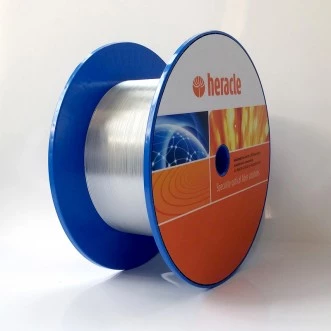

Aluminum Coated Step Index Multi Mode Fiber
Description
heracle features pure fused silica step index multimode fibers, optimised for applications in the UV/VIS and VIS/IR wavelengths. Optional solarisation resistant performance for UV wavelength region is available.
The fiber is protected with Aluminum coating. Aluminum coatings not only enable the fiber to be used in applications of a wider temperature range, but also offers excellent protection at extended stress levels. As an electric conductor this type of coating provides the user with the ability to terminate the fiber directly onto the coating, supporting a hermetically sealed assembly. The manufacturing process utilized in the production of these fibers results in a superior strength optical fiber, with improved long term reliability especially under extreme bend radius applications. Unlike polymers, metal coatings such as Aluminum have very low outgassing of volatile components.
All Aluminum coated fibers are 100 % quality tested to stringent test procedures in accordance with TIA/EIA and FOTP guidelines. Custom specific tests to verify application requirements are available. Heracle is proud distributor of metallized optical fiber manufactured by Waveguide Technologies, Inc. New Jersey, USA.
Aluminum Coated Step Index Multi Mode Fiber
Specifications |
|
|---|---|
| Core Diameter: | 100 um |
| Wavelength Range: | 200-2400nm |
| Cable Length: | 100 m |
| Fiber Core Material: | Silica |
| Core Diameter: | 50 - 400 nm |
| Number Of Claddings: | 1 or up to 7 (optional) |
| Solarisation Resistant Performance: | optional available |
Features
Features
• Wide operating temperature range (from cryogenic up to 400° C)
• Hermetic & sterilizable
• Directly solderable onto coating for vacuum feedthroughs & laser diode pigtailing
• Radiation resistant
• Low outgassing of volatile components
• Resistant to organic solvents
Applications
Aluminum coated step index multimode optical
fibers are typically used under extreme
conditions such as:
• Aircraft, missile, rocket, turbine & jet engine monitoring
• Radiation, caustic & corrosive environments
• Material fatigue sensing applications
• High power laser delivery systems
• Ultra high vacuum applications
• Semiconductor manufacturing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The features of the fiber include hermetic and sterilizable, directly solderable onto coating for vacuum feedthroughs and laser diode pigtailing, radiation resistant, low outgassing of volatile components, and resistant to organic solvents.
The fiber is typically used under extreme conditions such as aircraft, missile, rocket, turbine & jet engine monitoring, radiation, caustic & corrosive environments, material fatigue sensing applications, high power laser delivery systems, ultra high vacuum applications, and semiconductor manufacturing.
The manufacturing process utilized in the production of the fiber results in a superior strength optical fiber, with improved long term reliability especially under extreme bend radius applications. Unlike polymers, metal coatings such as Aluminum have very low outgassing of volatile components.
The Aluminum coating enables the fiber to be used in applications of a wider temperature range and offers excellent protection at extended stress levels. It also provides the user with the ability to terminate the fiber directly onto the coating, supporting a hermetically sealed assembly.
The fiber has a wide operating temperature range from cryogenic up to 400° C.
