Description
The Reduced Cladding Fiber Faraday Mirror (GK-RCFM Series) by GKER Photonics is a sophisticated passive optical device designed to offer precise 90-degree polarization rotation without being affected by the input light's polarization state. This advanced Faraday mirror is engineered for applications requiring high performance and stability in optical systems. It features excellent environmental stability and minimal insertion loss, making it an ideal choice for integration into various optical setups.
The GK-RCFM Series is particularly beneficial in compact optical amplifiers, where space constraints necessitate the use of highly efficient components. It also finds extensive application in Dense Wavelength Division Multiplexing (DWDM) systems, where stable performance across multiple wavelengths is crucial. In addition, the device is suitable for optical sensors and compact optical circuits, where it helps to reduce polarization-related issues, thereby enhancing the overall accuracy and reliability of the system.
With a typical insertion loss of 1.0 dB and a maximum insertion loss of 1.2 dB, the GK-RCFM Series ensures high efficiency and minimal signal degradation. The mirror maintains a Faraday rotation angle of 45 degrees with a maximum rotation angle tolerance of ±3 degrees at the center wavelength of 1550 nm. It also offers a low maximum polarization-dependent loss of 0.05 dB, ensuring consistent performance across varying conditions. Designed for high optical power handling up to 300 mW and robust against tensile loads up to 5 N, the GK-RCFM Series operates reliably within temperatures ranging from -5°C to +70°C and can be stored from -40°C to +85°C.

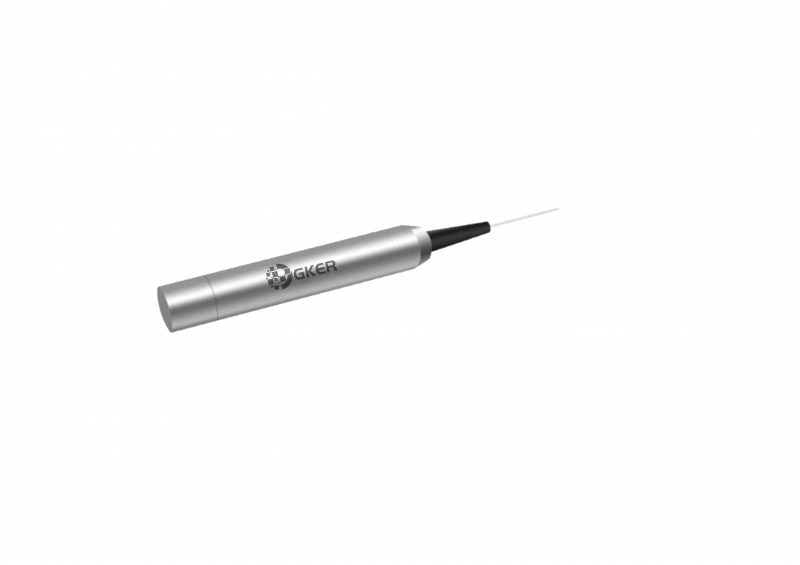

1550nm Reduced Cladding Fiber Faraday Mirror
Specifications
Center Wavelength: | 1550 nm |
---|---|
Operating Wavelength Range: | 55 – 1550 nm |
Typical Insertion Loss: | 1 dB |
Max Insertion Loss: | 1.2 dB |
Min Extinction Ratio: | Not Specified |
Max Optical Power: | 300 mW |
Center Wavelength (λc): | 1550 nm |
Operating Wavelength Range: | λc ± 15 nm |
Typ. Insertion Loss: | 1.0 dB |
Max. Insertion Loss: | 1.2 dB |
Faraday Rotation Angle (Single Pass): | 45 degree |
Max. Rotation Angle Tolerance Over Wavelength At 23 ℃: | ± 3 degree |
Max. Polarization Dependent Loss: | 0.05 dB |
Max. Optical Power (Continuous Wave): | 300 mW |
Max. Tensile Load: | 5 N |
Fiber Type: | RC 1550 Fiber - |
Operating Temperature: | - 5 to + 70 ℃ |
Storage Temperature: | - 40 to + 85 ℃ |
Features
- High Performance: Provides a 90-degree rotation of light polarization with minimal loss
- Low Insertion Loss: Typical value of 1.0 dB, with a maximum of 1.2 dB
- Minimal Polarization Dependent Loss (PDL): Maximum of 0.05 dB
- Wide Operating Wavelength Range: Center wavelength at 1550 nm with a ±15 nm range
- Robust Optical Power Handling: Capable of handling up to 300 mW of continuous wave optical power
- Environmental Stability: Operates reliably within -5°C to +70°C and stores safely from -40°C to +85°C
Applications
- Compact Optical Amplifiers: Ideal for use in space-constrained amplifier systems, ensuring high performance with minimal polarization effects
- Dense Wavelength Division Multiplexing (DWDM) Systems: Provides stable operation in high-density wavelength systems, reducing polarization-related issues
- Optical Sensors: Enhances the accuracy and reliability of optical sensors by minimizing polarization interference
- Compact Optical Circuits: Integrates effectively into compact optical circuits, contributing to efficient and stable performance in complex optical setups
Frequently Asked Questions
What is the primary function of the GK-RCFM Series?
What is the typical insertion loss of this Faraday Mirror?
What is the maximum insertion loss for this device?
What is the center wavelength of the GK-RCFM Series?
What is the operating wavelength range?
How much optical power can the GK-RCFM Series handle?
What is the maximum polarization dependent loss?
What are the operating and storage temperature ranges?
What type of fiber is used in this Faraday Mirror?
What is the maximum tensile load the device can handle?
