Polarization Maintaining Fiber Optic Patch Cord PM630-HP FC/APC-FC/APC 2m Long

Name: Polarization Maintaining Fiber Optic Patch Cord PM630-HP FC/APC-FC/APC 2m Long
Brand: SHANGHAI TARLUZ TELECOM TECH CO LTD
Price: 129.00 USD
Availability: InStock

Description

The Polarization Maintaining Fiber Optic Patch Cord PM630-HP FC/APC-FC/APC with a PM630-HP (620-850nm) fiber type and 2m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

Specifications

Insertion Loss:	1 dB
Return Loss:	60 dB
Polarization Extinction Ratio (PER):	22 dB
Wavelength Range:	620 – 950 nm
Numerical Aperture (NA):	0.12
Max Optical Power:	300 mW
Return Loss (dB) APC:	60
Cord Length (m):	2
Storage Temperature (°C):	-40 to +85
Operation Temperature (°C):	0 to +70
Fiber Type:	PM panda fiber (Nufern, Corning, Fujikura, YOFC or specified)
Connector Key For FC Type:	Narrow key (1.97~2.02mm) or Wide key (2.09~2.14mm)
Max. Optical Power (mW):	300
Extinction Ratio (dB) Typ.:	17, 17, 20, 22
Extinction Ratio (dB) Min.:	15, 15, 18, 20
Connector Type:	FC, SC, LC
Return Loss (dB) UPC:	50
Insertion Loss (dB) Typ.:	1.2, 1.2, 1.2, 1.0
Insertion Loss (dB) Max.:	1.5, 1.5, 1.5, 1.2
Numeric Aperture:	0.12
Mode Field Diameters (um):	2.3@350nm, 3.3±0.5@405nm, 3.3±0.5@515nm, 4.5±0.5@630nm
Cutoff Wavelength (nm):	315±25, 380±20, 410±40, 570±50
Model Based Wavelength Range Options (nm):	350~460, 400~680, 460~700, 620~950
Model Based Alignment Wavelength (nm):	375, 405, 460, 630
Manufacturer Part Number (MPN):	TL-PMPC-FCASFCAS-6330LBE/09HBE0020M
FindLight SKU:	FL-24330

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

Applications for Polarization Maintaining (PM) Fiber Optic Patch Cords

Coherent optical communication systems: Maintains a stable state of polarization for coherent receivers, transmitters, phase-sensitive detection, and advanced modulation formats.
High-speed fiber optic transmission: Ideal for high-data-rate optical links where polarization stability is critical for signal integrity and low bit error rates.
EDFA and fiber amplifier systems: Used in erbium-doped fiber amplifiers, PM EDFAs, Raman amplifiers, and polarization-sensitive optical amplification modules.
External optical modulators: Suitable for LiNbO3 modulators, phase modulators, intensity modulators, and electro-optic modulation systems requiring precise polarization alignment.
Interferometric fiber optic sensors: Used in Mach-Zehnder, Michelson, Sagnac, and Fabry-Perot interferometers for stable, repeatable polarization performance.
Fiber optic gyroscopes: Supports polarization stability in FOG systems used for navigation, inertial sensing, aerospace, marine, and defense applications.
Integrated optics and photonic circuits: Provides reliable polarization-maintaining connection to planar lightwave circuits, silicon photonics, lithium niobate chips, and photonic integrated circuits.
Laser diode pigtailing and laser delivery: Used with polarized laser sources, pump lasers, seed lasers, tunable lasers, narrow-linewidth lasers, and ultrafast laser systems.
Quantum optics and quantum communication: Suitable for quantum key distribution, entangled photon experiments, single-photon systems, and polarization-based quantum photonics.
Optical switching systems: Used in polarization-sensitive optical switches, optical routing modules, wavelength switching systems, and laboratory switching setups.
Test and measurement equipment: Ideal for optical component testing, polarization extinction ratio testing, optical spectrum analysis, interferometry, and calibration systems.
Polarization control and analysis: Used with polarization controllers, polarizers, polarization beam splitters, polarization analyzers, and polarization extinction ratio measurement instruments.
Fiber lasers and ultrafast laser systems: Supports PM fiber laser cavities, mode-locked lasers, seed laser modules, amplifier chains, and femtosecond or picosecond pulse delivery.
Biomedical and life science instrumentation: Used in OCT systems, fluorescence imaging, laser scanning microscopy, spectroscopy, and other polarization-sensitive optical instruments.
Sensing and metrology systems: Applicable for strain sensing, temperature sensing, acoustic sensing, current sensing, vibration sensing, and precision fiber optic metrology.
Aerospace, defense, and navigation systems: Provides stable optical connectivity for ruggedized polarization-sensitive systems requiring high extinction ratio and reliable performance.
Telecommunications research and development: Used in 400G/800G coherent optics, DWDM systems, optical transceivers, lab prototypes, and next-generation fiber communication research.
RF over fiber and microwave photonics: Maintains polarization stability in analog optical links, photonic signal processing, antenna remoting, and high-frequency modulation systems.
Precision laboratory optical setups: Suitable for university, industrial, and research laboratories requiring low insertion loss, high return loss, and stable polarization-maintaining fiber connections.
Visible, near-infrared, and mid-infrared optical systems: Supports applications across multiple operating wavelengths including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm bands.

Export & Trade Information

ECCN:	EAR99
HTS Code:	8544.70.0000
Estimated US Tariff:	25%

Importing, tariffs & codes (Quick Guide) →

$129.00

Volume Pricing:

Qty	Unit Price	Extended Price
5	$122.55	$612.75
10	$116.10	$1,161.00

Discounts apply automatically in cart.

Shipping:

$85.00

Ships from:

China

Est. US Tariff:

$32.25

Processing:

1 days (Est. arrival by Nov 6)

Delivers to:

United States

Made by:

SHANGHAI TARLUZ TELECOM TECH CO LTD

Made in:

China

Warranty:

View full terms

Returns:

View return policy

Sold by:

SHANGHAI TARLUZ TELECOM TECH CO LTD

On FindLight:

since 2025

Got Questions? Ask Below ▼

Message the supplier directly
No signup or account needed
Expect a fast reply

Ask a Question

To: SHANGHAI TARLUZ TELECOM TECH CO LTD
Re: Polarization Maintaining Fiber Optic Patch Cord PM630-HP FC/APC-FC/APC 2m Long

Name

Work Email

Organization

Country

Qty.

Your message to supplier

Thank you, your message was sent successfully.

Frequently Asked Questions

What is a polarization maintaining PM fiber optic patch cord used for?

A polarization maintaining PM fiber optic patch cord is used to transmit linearly polarized light while preserving the input polarization state. It is commonly used in coherent optical communications, EDFAs, fiber optic switching, integrated optics, high-speed transmission systems, external modulators, interferometric sensors, and other polarization-sensitive photonic systems.

What wavelengths are available for the TARLUZ polarization maintaining patch cord?

The TARLUZ PM patch cord is available for alignment wavelengths including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. Depending on the selected version, the operating wavelength range covers approximately 350 nm to 2200 nm.

What connector types are supported by this PM fiber patch cable?

The datasheet lists FC, SC, and LC connector options, with PC, UPC, or APC polishing available depending on configuration. The product description also notes that other connector formats such as ST, MU, MPO, and MTP may be available on request. For FC connectors, both narrow key and wide key versions can be supplied.

What insertion loss and extinction ratio can I expect from this PM patch cord?

Insertion loss depends on wavelength. Typical insertion loss ranges from about 0.3 dB at 1300 nm, 1550 nm, and 2000 nm to about 1.2 dB at shorter visible wavelengths. Maximum insertion loss is specified from 0.5 dB to 1.5 dB depending on wavelength. The extinction ratio ranges from a minimum of 15 dB at shorter wavelengths up to 23 dB minimum at 1300 nm, 1550 nm, and 2000 nm, with typical values up to 25 dB.

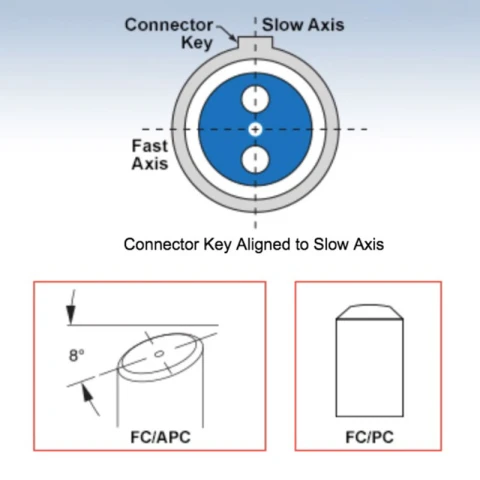

Can the slow axis or fast axis be aligned to the connector key?

Yes. By default, the slow axis of the PM panda fiber is aligned to the connector key. The fast axis can also be aligned to the connector key upon request, making the patch cord suitable for systems that require a specific polarization axis orientation.

What is the difference between UPC and APC polishing for this PM fiber optic patch cord?

UPC polishing provides a typical return loss of 50 dB, while APC polishing provides a typical return loss of 60 dB. APC connectors are generally preferred when lower back reflection is required, such as in high-power lasers, coherent systems, interferometry, and other reflection-sensitive optical setups.

What fiber and cable jacket options are available for the polarization maintaining patch cord?

The patch cord is manufactured with PM panda fiber from suppliers such as Nufern, Corning, Fujikura, YOFC, or another specified fiber brand. Cable formats include 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, and armored cable. The specified maximum optical power is 300 mW, with an operating temperature range of 0°C to +70°C and storage temperature range of -40°C to +85°C.

Got more questions? Use the inquiry form to ask the supplier directly.
