Description

The Polarization Maintaining Fiber Optic Patch Cord PM630-HP FC/APC-FC/APC with a PM630-HP (620-850nm) fiber type and 1m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

Polarization Maintaining Fiber Optic Patch Cord PM630-HP FC/APC-FC/APC 1m Long

Specifications

Insertion Loss: 1 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 22 dB
Wavelength Range: 620 – 950 nm
Numerical Aperture (NA): 0.12
Max Optical Power: 300 mW
Return Loss (dB) APC: 60
Cord Length (m): 1
Storage Temperature (°C): -40 to +85
Operation Temperature (°C): 0 to +70
Fiber Type: PM panda fiber (Nufern, Corning, Fujikura, YOFC or specified)
Connector Key For FC Type: Narrow key (1.97~2.02mm) or Wide key (2.09~2.14mm)
Max. Optical Power (mW): 300
Extinction Ratio (dB) Typ.: 17, 17, 20, 22
Extinction Ratio (dB) Min.: 15, 15, 18, 20
Connector Type: FC, SC, LC
Return Loss (dB) UPC: 50
Insertion Loss (dB) Typ.: 1.2, 1.2, 1.2, 1.0
Insertion Loss (dB) Max.: 1.5, 1.5, 1.5, 1.2
Numeric Aperture: 0.12
Mode Field Diameters (um): 2.3@350nm, 3.3±0.5@405nm, 3.3±0.5@515nm, 4.5±0.5@630nm
Cutoff Wavelength (nm): 315±25, 380±20, 410±40, 570±50
Model Based Wavelength Range Options (nm): 350~460, 400~680, 460~700, 620~950
Model Based Alignment Wavelength (nm): 375, 405, 460, 630
Manufacturer Part Number (MPN): TL-PMPC-FCASFCAS-6330LBE/09HBE0010M
FindLight SKU: FL-24329

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
  • Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
  • High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
  • Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
  • Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
  • Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
  • Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
  • High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
  • Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
  • Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

Applications of Polarization Maintaining (PM) Fiber Optic Patch Cords

  • Coherent Optical Communication Systems: Ideal for maintaining stable polarization states in coherent transmission links, coherent receivers, optical transmitters, and advanced modulation-based fiber optic networks.
  • High-Speed Optical Transmission: Used in high-speed data transmission systems where low insertion loss, high return loss, and stable polarization performance are critical.
  • Fiber Optic Gyroscopes and Inertial Navigation Systems: Suitable for precision sensing applications that require excellent polarization stability, high extinction ratio, and reliable axis alignment.
  • Interferometric Fiber Optic Sensors: Commonly used in interferometers, phase-sensitive sensing systems, and fiber optic sensor networks for accurate measurement of strain, temperature, vibration, pressure, and displacement.
  • External Optical Modulators: Designed for use with LiNbO3 modulators, electro-optic modulators, phase modulators, and intensity modulators where input polarization must be precisely controlled.
  • Erbium-Doped Fiber Amplifiers (EDFAs): Used in EDFA modules and optical amplifier systems to preserve polarization performance and optimize signal quality in telecom and laboratory setups.
  • Integrated Optics and Photonic Circuits: Suitable for coupling light into integrated optical devices, planar lightwave circuits, silicon photonics, photonic integrated circuits, and polarization-sensitive optical chips.
  • Optical Switching Systems: Used in polarization-sensitive optical switches, fiber optic routing systems, test benches, and switching modules for stable and repeatable optical performance.
  • Laser Diode and Fiber Laser Systems: Applicable for connecting polarized laser sources, fiber lasers, seed lasers, pump lasers, and precision laser modules operating from visible to infrared wavelengths.
  • Quantum Optics and Quantum Communication: Used in quantum key distribution, entangled photon experiments, single-photon systems, and polarization-based quantum photonics where polarization preservation is essential.
  • Polarization-Sensitive Test and Measurement: Suitable for optical laboratories, production testing, polarization extinction ratio measurement, component characterization, and fiber optic metrology systems.
  • Biomedical and Scientific Instrumentation: Used in optical coherence tomography, spectroscopy, microscopy, laser diagnostics, and other precision optical instruments requiring controlled polarization delivery.
  • Visible and Near-Infrared Laser Delivery: Supports applications at common wavelengths including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm.
  • Polarization Maintaining Coupler and Component Interconnects: Used to connect PM couplers, PM isolators, PM circulators, PM splitters, PM WDMs, PM collimators, and other polarization maintaining fiber optic components.
  • Aerospace, Defense, and Navigation Systems: Suitable for demanding optical systems requiring stable polarization alignment, low loss, and repeatable performance in sensing, guidance, and communications applications.
  • Research and Development Laboratories: Ideal for universities, photonics research labs, optical engineering facilities, and experimental setups that require customizable PM fiber patch cables with FC, SC, LC, ST, MU, MPO, or MTP connector options.

Export & Trade Information

ECCN: EAR99
HTS Code: 8544.70.0000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is a polarization maintaining fiber optic patch cord used for?
A polarization maintaining fiber optic patch cord is used to transmit linearly polarized light while preserving its polarization state. It is commonly used in coherent optical communications, EDFAs, fiber optic switching, integrated optics, high-speed transmission systems, external modulators, interferometric sensors, and other applications where polarization stability is critical.
What connector types are available for the TARLUZ polarization maintaining patch cord?
The TARLUZ PM patch cord can be supplied with FC, SC, or LC connectors as standard. The datasheet also notes availability of other connector styles such as ST, MU, MPO, and MTP upon request. FC connectors can be ordered with either narrow key or wide key options.
What wavelengths are supported by this PM fiber patch cord?
This polarization maintaining patch cord supports a wide range of alignment wavelengths, including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. Depending on the selected fiber, operating wavelength ranges extend from 350–460 nm up to 1850–2200 nm.
What are the insertion loss and extinction ratio specifications?
Insertion loss depends on wavelength and configuration. Typical insertion loss ranges from about 0.3 dB at 1300 nm, 1550 nm, and 2000 nm to about 1.2 dB at shorter visible wavelengths. The extinction ratio is wavelength dependent, with typical values from 17 dB at 375/405 nm up to 25 dB at 1300/1550/2000 nm.
Can the slow axis or fast axis be aligned to the connector key?

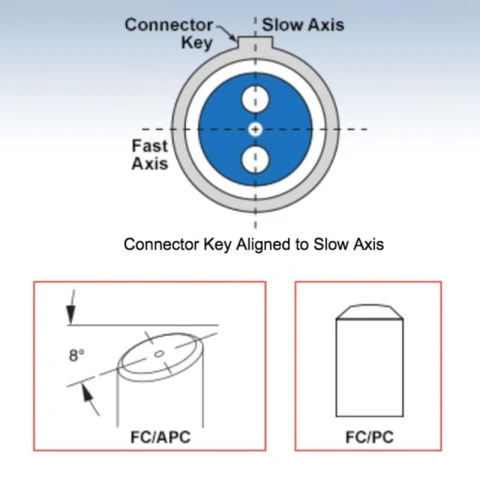

Yes. By default, the slow axis of the PM panda fiber is aligned to the connector key. Fast-axis alignment can also be provided upon request, making the patch cord suitable for systems requiring a specific polarization axis orientation.
What is the difference between UPC and APC polishing for this PM patch cord?
UPC and APC polishing affect back reflection, also called return loss. This PM patch cord offers 50 dB return loss for UPC connectors and 60 dB return loss for APC connectors. APC polishing is typically preferred when lower back reflection is required, such as in high-stability laser, interferometry, and coherent communication systems.
What cable and fiber options are available for the polarization maintaining patch cord?
The patch cord can be supplied using PM panda fiber from manufacturers such as Nufern, Corning, Fujikura, YOFC, or a specified equivalent. Available cable formats include 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, and armored cable. The maximum optical power is 300 mW, with an operating temperature range of 0 to +70 °C.
