Description

The Polarization Maintaining Fiber Optic Patch Cord PM460-HP FC/APC-FC/APC with a PM460-HP (460-700nm) fiber type and 1m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

Polarization Maintaining Fiber Optic Patch Cord PM460-HP FC/APC-FC/APC 1m Long

Specifications

Insertion Loss: 1.2 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 20 dB
Wavelength Range: 460 – 700 nm
Numerical Aperture (NA): 0.12
Max Optical Power: 300 mW
Return Loss (dB) APC: 60
Cord Length (m): 1
Storage Temperature (°C): -40 to +85
Operation Temperature (°C): 0 to +70
Fiber Type: PM panda fiber (Nufern, Corning, Fujikura, YOFC or specified)
Connector Key For FC Type: Narrow key (1.97~2.02mm) or Wide key (2.09~2.14mm)
Max. Optical Power (mW): 300

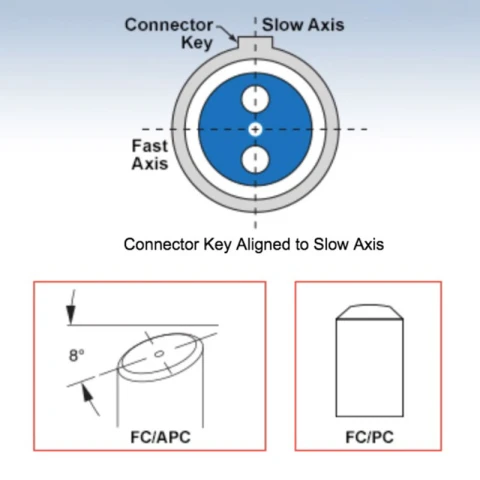

Axis Alignment: Slow axis of fiber aligned to connector key (in default)
Extinction Ratio (dB) Typ.: 17, 17, 20, 22
Extinction Ratio (dB) Min.: 15, 15, 18, 20
Connector Type: FC, SC, LC
Return Loss (dB) UPC: 50
Insertion Loss (dB) Typ.: 1.2, 1.2, 1.2, 1.0
Insertion Loss (dB) Max.: 1.5, 1.5, 1.5, 1.2
Numeric Aperture: 0.12
Mode Field Diameters (um): 2.3@350nm, 3.3±0.5@405nm, 3.3±0.5@515nm, 4.5±0.5@630nm
Cutoff Wavelength (nm): 315±25, 380±20, 410±40, 570±50
Model Based Wavelength Range Options (nm): 350~460, 400~680, 460~700, 620~950
Model Based Alignment Wavelength (nm): 375, 405, 460, 630
Manufacturer Part Number (MPN): TL-PMPC-FCASFCAS-4630LBE/09HBE0010M
FindLight SKU: FL-24325

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
  • Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
  • High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
  • Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
  • Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
  • Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
  • Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
  • High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
  • Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
  • Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

Applications for Polarization Maintaining Patch Cord

  • Coherent optical communications: Maintains a stable polarization state for coherent transceivers, coherent receivers, I/Q modulators, and high-capacity fiber optic transmission systems.
  • High-speed optical transmission devices: Ideal for testing and interconnecting high-speed photonic components where low insertion loss and high extinction ratio are required.
  • External optical modulators: Used with LiNbO3 modulators, phase modulators, intensity modulators, and electro-optic modulation systems requiring precise polarization alignment.
  • EDFA and optical amplifier systems: Suitable for erbium-doped fiber amplifiers, polarization-sensitive amplifier modules, pump laser connections, and gain characterization setups.
  • Fiber optic switching systems: Supports polarization-sensitive optical switches, PM fiber switches, and photonic routing modules in telecom and laboratory networks.
  • Integrated optics and photonic integrated circuits: Provides reliable polarization-maintaining interconnects for silicon photonics, planar lightwave circuits, chip coupling, and integrated optical devices.
  • Interferometric fiber optic sensors: Used in Mach-Zehnder, Michelson, Sagnac, and Fabry-Perot interferometer systems where polarization stability is critical.
  • Fiber optic gyroscopes: Commonly used in navigation-grade and industrial fiber optic gyroscope assemblies requiring stable polarization and high extinction ratio.
  • Laser diode pigtailing and laser delivery: Connects polarization-sensitive diode lasers, fiber lasers, solid-state lasers, and seed lasers across UV, visible, near-IR, telecom, and 2 µm wavelength bands.
  • Polarization-sensitive test and measurement: Suitable for optical benches, polarization extinction ratio testing, insertion loss testing, return loss testing, and PM fiber component characterization.
  • Quantum optics and quantum communication: Used in polarization-encoded quantum key distribution, single-photon experiments, entangled photon systems, and quantum photonic research.
  • Fiber optic sensing and metrology: Supports high-precision measurement systems, strain sensors, temperature sensors, acoustic sensors, and distributed fiber sensing applications.
  • Biomedical imaging and OCT systems: Applicable for optical coherence tomography, polarization-sensitive OCT, laser scanning systems, and precision biomedical photonics.
  • LiDAR and laser ranging systems: Provides stable polarization transmission for coherent LiDAR, FMCW LiDAR, Doppler LiDAR, and precision laser ranging equipment.
  • Spectroscopy and analytical instruments: Used in Raman spectroscopy, absorption spectroscopy, fluorescence spectroscopy, and other polarization-dependent optical analysis systems.
  • Microwave photonics and RF photonic links: Supports polarization-controlled optical links, analog photonic transmission, RF-over-fiber systems, and low-noise photonic signal processing.
  • PM fiber component interconnection: Ideal for connecting PM couplers, PM isolators, PM circulators, PM WDMs, PM splitters, PM attenuators, and other polarization-maintaining fiber components.
  • Optical clock and frequency comb systems: Used in precision timing, metrology, frequency comb distribution, and stabilized laser systems requiring polarization consistency.
  • Telecom laboratory and R&D setups: Suitable for research labs, production test stations, optical communication experiments, and prototype photonic system integration.
  • Visible and UV photonics: Supports short-wavelength applications such as 375 nm, 405 nm, 460 nm, and 630 nm laser systems, including scientific instrumentation and alignment-sensitive optical setups.
  • Telecom wavelength systems: Optimized for 1300 nm and 1550 nm applications including DWDM networks, optical transmission experiments, and polarization-dependent telecom devices.
  • 2 µm laser and sensing systems: Applicable for 2000 nm PM fiber applications, mid-infrared source development, thulium fiber laser systems, and specialty sensing platforms.
  • Polarization-maintaining fiber laser systems: Used for seed laser delivery, amplifier chains, mode-locked lasers, ultrafast laser systems, and polarization-stable fiber laser architectures.
  • Optical component manufacturing: Suitable for OEM integration, production testing, device packaging, and alignment of polarization-sensitive fiber op

Export & Trade Information

ECCN: EAR99
HTS Code: 8544.70.0000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is a polarization maintaining (PM) fiber optic patch cord used for?
A polarization maintaining fiber optic patch cord is used to transmit linearly polarized light while maintaining the polarization state through the fiber. It is commonly used in coherent optical communications, EDFAs, external modulators, interferometric sensors, switching systems, integrated optics, and high-speed optical transmission devices.
What connector types are available for the TARLUZ PM patch cord?
The TARLUZ polarization maintaining patch cord can be terminated with FC, SC, or LC connectors as standard. The datasheet also notes availability with other connector types such as ST, MU, MPO, and MTP upon request. FC connectors can be supplied with either narrow key or wide key options.
What wavelengths does this polarization maintaining patch cord support?
This PM patch cord is available for multiple alignment wavelengths, including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. Depending on the selected fiber, the operating wavelength range can extend from 350–460 nm up to 1850–2200 nm.
What insertion loss and extinction ratio can I expect from this PM fiber patch cord?
Insertion loss depends on wavelength and configuration. Typical insertion loss ranges from about 1.2 dB at shorter visible wavelengths to 0.3 dB at 1300 nm, 1550 nm, and 2000 nm. The extinction ratio is typically 17–25 dB, with minimum values from 15 dB to 23 dB depending on wavelength.
Is the slow axis or fast axis aligned to the connector key?
By default, the slow axis of the PM panda fiber is aligned to the connector key. Fast-axis alignment can also be requested, making the patch cord suitable for systems that require a specific polarization-axis orientation.
What is the difference between UPC and APC polishing for this PM patch cord?
UPC and APC refer to the connector end-face polish. UPC connectors offer a return loss of about 50 dB, while APC connectors offer a higher return loss of about 60 dB. APC polishing is often preferred in applications requiring lower back reflection, such as coherent communications, interferometry, and high-performance laser systems.
What cable and fiber options are available for this polarization maintaining patch cord?
The patch cord can be supplied using PM panda fiber from manufacturers such as Nufern, Corning, Fujikura, YOFC, or another specified fiber brand. Cable options include 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, and armored cable. The maximum optical power rating is 300 mW, with an operating temperature range of 0°C to +70°C.

Got more questions? Use the inquiry form to ask the supplier directly.
