The Polarization Maintaining Fiber Optic Patch Cord PM-S405-XP FC/APC-FC/APC Connector with a PM-S405-XP fiber type and 3m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

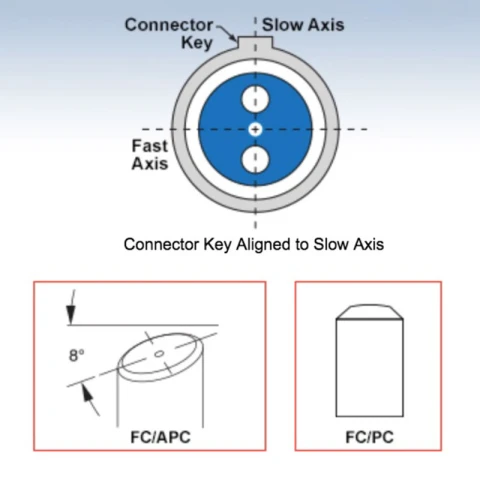

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

Polarization Maintaining Fiber Optic Patch Cord PM-S405-XP FC/APC-FC/APC Connector 3m Long

Specifications

Insertion Loss: 1.2 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 17 dB
Wavelength Range: 400 – 680 nm
Numerical Aperture (NA): 0.12
Max Optical Power: 300 mW
Connector Type: FC, SC, LC
Model Based Alignment Wavelength (nm): 375, 405, 460, 630
Model Based Wavelength Range Options (nm): 350~460, 400~680, 460~700, 620~950
Cutoff Wavelength (nm): 315±25, 380±20, 410±40, 570±50
Mode Field Diameters (um): 2.3@350nm, 3.3±0.5@405nm, 3.3±0.5@515nm, 4.5±0.5@630nm
Insertion Loss (dB) Max.: 1.5, 1.5, 1.5, 1.2
Insertion Loss (dB) Typ.: 1.2, 1.2, 1.2, 1.0
Return Loss (dB) UPC: 50
Return Loss (dB) APC: 60
Extinction Ratio (dB) Min.: 15, 15, 18, 20
Extinction Ratio (dB) Typ.: 17, 17, 20, 22
Max. Optical Power (mW): 300
Operation Temperature (°C): 0 to +70
Storage Temperature (°C): -40 to +85
Cord Length (m): 3
Manufacturer Part Number (MPN): TL-PMPC-FCASFCAS-40530LBE/09HBE0030M
FindLight SKU: FL-24323

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
  • Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
  • High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
  • Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
  • Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
  • Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
  • Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
  • High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
  • Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
  • Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

Applications of Polarization Maintaining Fiber Optic Patch Cords

  • Coherent optical communication systems requiring stable polarization states for high-speed data transmission, phase-sensitive detection, and advanced modulation formats.
  • EDFA and fiber amplifier systems where polarization-maintaining patch cords help preserve signal integrity in erbium-doped fiber amplifiers and other optical amplification modules.
  • Fiber optic sensing and interferometric sensors including fiber optic gyroscopes, acoustic sensors, vibration sensors, strain sensors, and precision measurement systems.
  • LiDAR and laser ranging systems that require low insertion loss, high extinction ratio, and stable polarization delivery for accurate optical measurements.
  • External optical modulators such as lithium niobate modulators, electro-optic modulators, phase modulators, and intensity modulators used in telecom and test systems.
  • Integrated optics and photonic integrated circuits for coupling polarized light into waveguides, optical chips, silicon photonics devices, and planar lightwave circuits.
  • High-speed transmission devices used in optical networks, laboratory testbeds, data communication systems, and coherent transceiver development.
  • Optical switching systems where polarization-maintaining fiber patch cables support stable routing, switching, and signal control in fiber optic networks.
  • Laser diode and fiber laser systems for reliable polarization-maintaining coupling between lasers, isolators, collimators, amplifiers, and other optical components.
  • Quantum optics and quantum communication applications requiring precise polarization control for quantum key distribution, entangled photon systems, and single-photon experiments.
  • Test and measurement equipment including optical spectrum analyzers, polarization analyzers, interferometers, tunable laser systems, and optical power measurement setups.
  • Biomedical and life science instrumentation such as OCT systems, fluorescence spectroscopy, microscopy, and laser-based diagnostic equipment requiring stable polarized light delivery.
  • Precision spectroscopy systems where PM fiber optic patch cords are used to maintain polarization stability across UV, visible, near-infrared, and 2 µm wavelength ranges.
  • Optical coherence tomography systems requiring polarization stability, low back reflection, and reliable fiber coupling for imaging and sensing applications.
  • Fiber optic gyroscopes and inertial navigation systems where high polarization extinction ratio is essential for accurate rotation sensing and long-term stability.
  • Polarization-sensitive optical instruments including polarimeters, polarization controllers, polarization beam combiners, and polarization-maintaining component assemblies.
  • Research and laboratory optical setups for universities, R&D labs, photonics companies, and laser laboratories requiring custom PM fiber patch cord assemblies.
  • UV, visible, NIR, and 2 µm laser delivery using PM panda fiber patch cords optimized for alignment wavelengths such as 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm.
  • Telecommunication and DWDM systems where polarization-maintaining fiber jumpers support stable signal handling in advanced optical network architectures.
  • Optical component manufacturing and alignment for connecting PM isolators, PM circulators, PM couplers, PM splitters, PM WDMs, PM collimators, and other polarization-maintaining fiber components.
  • High-precision metrology including interferometry, frequency comb systems, optical clocks, and phase-stable measurement platforms.
  • Defense, aerospace, and navigation photonics where rugged, low-loss, polarization-maintaining fiber connections are needed for mission-critical optical systems.

Export & Trade Information

ECCN: EAR99
HTS Code: 8544.70.0000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is a polarization maintaining patch cord used for?
A polarization maintaining patch cord is used to transmit light while preserving its polarization state. It is commonly used in coherent optical communications, EDFAs, external modulators, integrated optics, switching systems, high-speed transmission devices, and interferometric fiber sensors.
What wavelengths are supported by this PM fiber optic patch cord?
This PM patch cord is available for alignment wavelengths including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. Depending on the version, operating wavelength ranges cover approximately 350 nm to 2200 nm.
What connector types are available for the polarization maintaining patch cord?
The PM patch cord can be supplied with common fiber connector types including FC, SC, and LC. The datasheet also mentions availability with ST, MU, MPO, MTP, and other connector types upon request. FC connectors can be supplied with either narrow key or wide key configurations.
What is the insertion loss of this PM patch cable?
Insertion loss depends on the operating wavelength. Typical insertion loss ranges from about 0.3 dB at 1300 nm, 1550 nm, and 2000 nm to about 1.2 dB at shorter visible wavelengths. Maximum insertion loss ranges from 0.5 dB to 1.5 dB depending on the wavelength version.
What extinction ratio does this polarization maintaining fiber patch cord provide?
The extinction ratio varies by wavelength. Minimum extinction ratio ranges from 15 dB for shorter wavelengths such as 375 nm and 405 nm up to 23 dB for 1300 nm, 1550 nm, and 2000 nm versions. Typical extinction ratio can reach up to 25 dB at longer wavelengths.
Can the slow axis or fast axis be aligned to the connector key?
Yes. By default, the slow axis of the PM panda fiber is aligned to the connector key. Fast-axis alignment or other axis orientation requirements can typically be specified when ordering.
What cable and fiber options are available for this PM patch cord?
The patch cord can be supplied using PM panda fiber from manufacturers such as Nufern, Corning, Fujikura, YOFC, or a specified equivalent. Cable options include 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, and armored cable.

Got more questions? Use the inquiry form to ask the supplier directly.
