Description

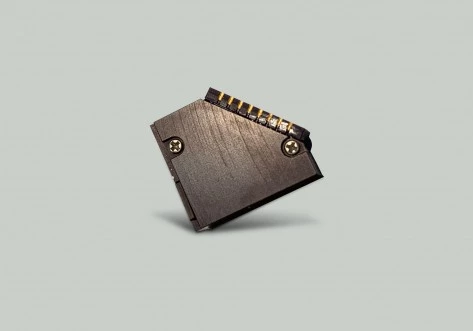

Introducing the PEBBLE VIS 360 – 830 nm OEM Spectrometer, a groundbreaking addition to the world of compact spectrometry. This ultra-compact spectrometer is ideal for devices that demand high performance without compromising on size. Designed by Ibsen Photonics, the PEBBLE VIS merges an incredibly small form factor with exceptional resolution and sensitivity, making it a perfect choice for applications where space is at a premium.
The PEBBLE VIS leverages Ibsen's renowned diffraction grating technology, a hallmark of their spectrometer line, ensuring consistent manufacturing quality and minimal performance variation from unit to unit. This technological backbone allows the PEBBLE VIS to deliver reliable and precise measurements across its wavelength range of 360 – 830 nm, with an impressive resolution of 6 nm. This consistency is vital for applications requiring high accuracy and repeatability.
Although the standard configurations of the PEBBLE VIS are designed to meet a wide array of needs, Ibsen Photonics offers customization options for those whose requirements extend beyond the typical specifications. This flexibility ensures that the PEBBLE VIS can be tailored to fit specific OEM needs, providing a bespoke solution for specialized applications. With its combination of compact design, high performance, and customizable features, the PEBBLE VIS stands out as a versatile and reliable choice in the spectrometry market.
PEBBLE VIS 360 - 830 nm OEM Spectrometer
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 360 – 830 nm |
| Resolution: | 6 nm |
| Numerical Aperture: | 0.22 |
| Detector: | CMOS detector |
| Pixels: | 256 pixels: 14 x 200 µm |
| Dimensions: | 20 x 15 x 8 mm |
| Weight: | < 5 grams |
| Interface: | SPI, USB |
| Power (typical): | 0.8 W |
Features
- Ultra Compact Size: Designed for integration into small devices without compromising on performance.
- Wavelength Range: Covers a broad spectrum from 360 to 830 nm, suitable for various applications.
- High Resolution and Sensitivity: Delivers a resolution of 6 nm, ensuring precise and accurate measurements.
- Proven Diffraction Grating Technology: Utilizes Ibsen’s reliable technology for consistent performance across units.
- High Speed CMOS Detector: Equipped with a high-speed CMOS detector for rapid data acquisition.
- Environmental Ruggedness: Built to withstand challenging environments, ensuring durability and reliability.
- Customization Available: Ibsen offers customization options to meet specific OEM requirements.
- Multiple Interface Options: Choose from SPI, USB, or a miniature flex connector for versatile connectivity.
- Compact Dimensions: Measures just 20 x 15 x 8 mm, making it ideal for space-constrained applications.
- Lightweight Design: Weighs less than 5 grams, facilitating easy integration into portable devices.
- Optional Features: Includes SMA coupling or free space options and order sorting filter availability.
- On-board Storage: Calibration coefficients can be stored on-board, enhancing ease of use.
- Efficient Power Usage: Operates with a typical power consumption of 0.8 W.
Applications
- Portable Analytical Devices: Enables handheld spectrometers with reliable performance.
- Embedded Optical Sensing: Suitable for integration into compact OEM sensing modules.
- Process Monitoring Systems: Provides accurate spectral data for industrial analysis.
- Biomedical Instrumentation: Ideal for diagnostic and fluorescence-based applications.
- Environmental Monitoring: Supports compact devices for in-field spectral analysis.
Frequently Asked Questions
The wavelength range of the PEBBLE VIS 360 - 830 nm OEM Spectrometer is 360 - 830 nm.
The resolution of the PEBBLE VIS 360 - 830 nm OEM Spectrometer is 6 nm/FWHM (12.5 x 250 µm slit).
The dimensions of the PEBBLE VIS 360 - 830 nm OEM Spectrometer are 20 x 15 x 8 mm without SMA connector and electronics.
The electronics interface options for the PEBBLE VIS 360 - 830 nm OEM Spectrometer are Miniature flex connector, SPI, and USB.
The maximum frame rate of the PEBBLE VIS 360 - 830 nm OEM Spectrometer is 4.8 KHz with the DISB-105 electronics and 2.0 KHz with the DISB-105 + DISB-USB Bridge electronics.
