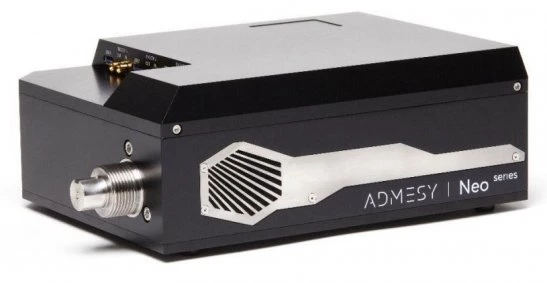

250nm to 1.1µm High End Spectrometer: Neo by ADMESY
Description
Neo by ADMESY is a high-end spectroradiometer operating in the 250nm to 1.1um spectral range. It offers high-end performance, and exceptional ease of use.
It features a robust construction from cover to core. It is a versatile platform to create spectral measurement solutions for a wide array of applications.
Analytical, transmission or absorbance testing? No problem for Neo, which is also perfect for Solid State Lighting (SSL) like LED-testing, or for thin film coating and other demanding areas.
Accuracy and Ease of Use: The Neo series spectroradiometer offers a unique combination of ease of use and accurate measurement capabilities packed in an extra robust package.
High-End Cooled CCD: The Neo utilizes a high-end cooled CCD detector for low noise and high dynamic range. An ideal device for measurements where ease of use, stability, performance and price are of the essence.
Hassle Free Integration: Neo spectroradiometer is the perfect solution for hassle free integration in your product or process. It can virtually cover any wavelength range in the 250-1100nm range.
Two Versions for this spectrometer: There are two versions available. A broadband and a visible version. The broadband has a dispersion range of ~850nm while the visible has a dispersion of around 580nm.

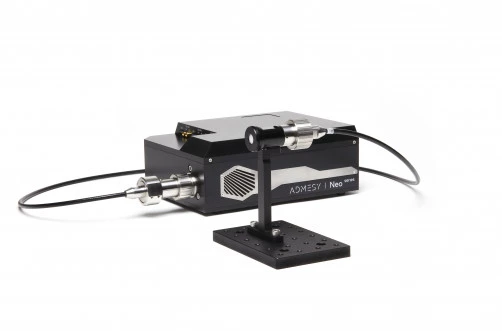

Various Accessories: The Neo series is available with a variety of accessories, lenses, cosine correctors and spheres. The accessories can be directly coupled or by means of a fiber. In both cases this is done with by means of the ultra-robust industrial fiber coupler. The fiber can withstand large forces which makes it ideal for avoiding fiber damage by bending or breaking it. If you want to stick to a SMA coupler this can done by placing a SMA converter to the fiber coupler. Through the Neo it is also possible to drive active accessories like a LED light source or a filter wheel.
250nm to 1.1µm High End Spectrometer: Neo by ADMESY
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 250-1100nm |
| Resolution: | 2.3 nm |
| Minimum Scan Time: | 4.8 sec |
| Non-linearity: | < 1% |
| Data Output Resolution: | Can be set by software to virtually any resolution |
| Focal Length: | 115 mm |
| NA Optical Bench: | 0.10 |
| Order Sorting Filter: | Linear variable filter |
| Wavelength Accuracy: | +/- 0.3nm |
| Detector Type: | Hamamatsu cooled detector (S7031) |
| Dark Noise (RMS): | ~ 3 to 5 counts (16 bit ADC) |
| Signal-to-Noise: | >1300:1 |
Features
- Various spectral ranges including UV, VIS and NIR within the 250-1100 nm range
- Cooled high-end CCD detector, cooled to -10 degrees Celsius
- High optical throughput design
- Internal mechanical Shutter
- Low noise
- Auto-range function
- Wavelength calibrated
- Very low stray light
- Excellent linearity, internally compensated within 1%
- Dark current compensated, virtually zero over entire integration range
- USBTMC compliant, SCPI command set, high speed device
- USB3, RS232, Ethernet connections and trigger in & out for ideal system integration
- Internal calculations for most common parameters, saving processing power in production environments
- Robust housing, optimized for mounting and protection in harsh production environments
- Very robust fiber connection
- Direct control of accessories through the Neo, up to 3 active accessories can be controlled through the Neo
Applications
This high-end spectroradiometer (Neo by ADMESY) is ideal for demanding spectroscopic application
- Research and Development
- Academic Research
- Engineering
- Spectroscopy
- Solid State Lighting (SSL) such as LED-testing
- Thin film coating testing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Netherlands
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Neo spectroradiometer operates in the 250nm to 1.1µm spectral range.
The Neo spectroradiometer is ideal for research and development, academic research, engineering spectroscopy, solid state lighting (SSL) testing, and thin film coating testing.
The Neo spectroradiometer is available in a broadband version with a dispersion range of ~850nm and a visible version with a dispersion of around 580nm.
Yes, the Neo spectroradiometer can control up to 3 active accessories, such as a LED light source or a filter wheel.
The Neo spectroradiometer has USB3, RS232, Ethernet connections, and trigger in & out for ideal system integration.
