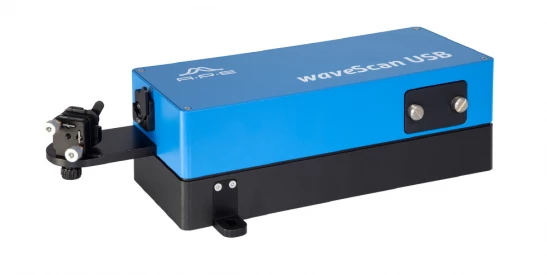

APE waveScan High Resolution Spectrometer
Description
waveScan by APE is a compact and cost-efficient optical spectrum analyzer for ultrafast laser systems, delivering rapid measurements at high resolutions. The rotating grating technology achieves high scan rates, making it an ideal real-time alignment tool for mode-locked laser systems. Different configurations, from 200 nm UV to 6.3 μm in the mid-infrared range, make waveScan the choice for analyzing the spectrum of different laser types. As an option, waveScan is available with an interchangeable fiber input in addition to a free-space input. Whether you need fast scan rates for adjustment or high resolution, combined with convenient measurement control and data processing - waveScan is the ideal solution.
APE waveScan High Resolution Spectrometer
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 200 nm-6300nm |
| Resolution: | 0.05 nm |
| Minimum Scan Time: | .167 sec |
| Input Polarization: | Horizontal |
| Laser Repetition Rate: | > 4 MHz (real-time measurements), > 1 kHz (accumulation mode) |
| Wavelength Accuracy: | ± 0.1 nm (configuration dependent) |
| Scan Rate: | ~ 6 Hz |
| Beam Input: | Free-space; Optional fiber coupling* |
Features
- High spectral resolution up to 0.05 nm depending on the configuration
- Wavelength ranges available from 200 nm - 6.3 μm (UV/VIS/NIR/MIR)
- Compact and robust design
- Free-space or fiber input options
- Easy to use - plug and play via USB connection; Software included
Applications
Ultrafast laser systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
waveScan by APE is a compact and cost-efficient optical spectrum analyzer for ultrafast laser systems, delivering rapid measurements at high resolutions.
The spectral resolution of waveScan can be up to 0.05 nm depending on the configuration.
waveScan offers wavelength ranges from 200 nm - 6.3 μm (UV/VIS/NIR/MIR).
waveScan is available with both free-space and interchangeable fiber input options.
waveScan is ideal for use in ultrafast laser systems.
