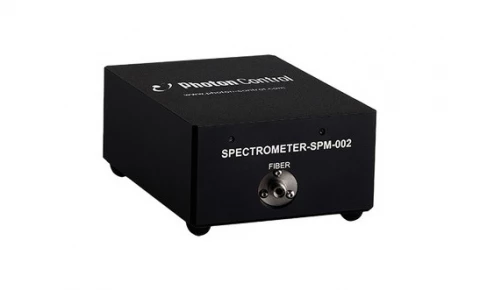

SPM-002-XT64
Description
The Photon Control SPM-002-XT64 family of spectrometers cover the ultraviolet, visible, and near-infrared spectrum from 190 nm to 1090 nm. The system features anti-blooming that minimizes the impact of saturated peaks. High sensitivity is achieved with the optical bench’s wider CCD detector. The spectrometer includes a fiber-optic patchcord, a power supply, a USB cable along with operating software.
SPM-002-XT64
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 70 mm |
| Diffraction Grating: | - lines/mm |
| Grating Blaze Wavelength: | - nm |
| Spectral Range: | 190-1100nm |
| Linear Dispersion (Avg): | - nm/mm |
| Spectral Resolution (Avg): | - nm |
| Range: | 190 - 1100 nm |
| Detector: | Hamamatsu S11071 |
| Detector Size: | 2048 x 64 Pixel Array |
| ADC: | 16 Bit |
| Connection: | USB 2.0 |
Features
The SPM-002-XT64 is fully compatible with the SPL family of light sources,
accessories, software development kits and SpecSoft Pro from Photon Control.
Applications
N.B. Some applications require additional software that is not included with the SPM-002-XT64.
Plasma Monitoring
Laser Characterization and Tuning
Biophotonics
Quantum Dot Analysis
Thin Film Thickness Measurement
Reflectance, Transmission, Absorption
Gas Analysis
Molar Concentration
Optical Inspection
Chemical Analysis
Fluorescence
Food inspection
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The SPM-002-XT64 spectrometer is suitable for a wide range of applications, including Plasma Monitoring, Laser Characterization and Tuning, Biophotonics, Quantum Dot Analysis, Thin Film Thickness Measurement, Reflectance, Transmission, Absorption, Gas Analysis, Molar Concentration, Optical Inspection, Chemical Analysis, Fluorescence, and Food inspection.
The SPM-002-XT64 spectrometer includes a fiber-optic patchcord, a power supply, a USB cable, and operating software.
The SPM-002-XT64 spectrometer covers the ultraviolet, visible, and near-infrared spectrum from 190 nm to 1090 nm.
The maximum refresh rate of the SPM-002-XT64 spectrometer is 50 Hz.
The optical bench's wider CCD detector achieves high sensitivity.
